Why Do Oil Tanks Have Floating Roofs? The Complete Engineering Purpose and Benefits
In the petroleum and petrochemical industries, storing vast quantities of crude oil, gasoline, and refined fuel products presents unique engineering challenges. Unlike water or high-flash-point industrial liquids, petroleum products contain volatile fractions that readily vaporize when exposed to air.
If stored in traditional fixed-roof tanks, these vapors accumulate in the empty space (ullage) above the liquid. To counteract environmental, financial, and safety hazards, modern industrial storage relies heavily on floating roof tanks. But exactly why do oil tanks have floating roofs? The answer lies in vapor control, fire safety, and asset preservation.
1. Elimination of Vapor Space and Evaporative Losses
The primary reason oil tanks utilize floating roofs is to eliminate the vapor headspace above the stored liquid.
In a standard fixed-roof tank, ambient temperature fluctuations cause the liquid surface to expand and contract, forcing air saturated with hydrocarbon vapors out of the tank—a phenomenon known as "breathing and working losses." A floating roof rests directly on the liquid's surface, rising and falling dynamically with inventory levels. By removing the air pocket, floating roofs reduce evaporative product loss by over 90%, saving millions of gallons of valuable petroleum from escaping into the atmosphere.
2. Prevention of Volatile Organic Compound (VOC) Emissions
Environmental regulations worldwide strictly limit the release of Volatile Organic Compounds (VOCs) and hazardous air pollutants.
Because volatile fractions like naphtha, crude oil, and light gasoline rapidly generate harmful gases, open-air or unsealed storage is legally prohibited in most jurisdictions. Floating roofs, equipped with advanced primary and secondary rim seal systems, form a tight, continuous barrier between the liquid product and the tank shell, ensuring strict compliance with environmental emission mandates.
3. Mitigation of Fire and Explosion Hazards
One of the greatest dangers in bulk petroleum storage is the accumulation of a flammable vapor-air mixture inside the tank ullage.
If lightning strikes or static electricity discharges into a vapor-filled headspace, it can trigger a catastrophic explosion. Because floating roofs maintain continuous physical contact with the liquid surface, no oxygen-rich vapor pocket exists to support combustion. This drastically lowers the ignition risk and elevates overall terminal safety.
4. Suppression of Internal Tank Corrosion
In fixed-roof tanks, moisture condenses on the underside of the roof and drips back into the stored oil. This water accumulation mixes with sulfur compounds in crude oil, creating a corrosive micro-environment that pits and degrades upper shell plates and roof structures. Floating roofs shield the liquid surface and eliminate the condensation zone, drastically extending the structural lifespan of the steel tank.
Data Table: Floating Roof vs. Fixed-Roof Oil Storage Tanks
Evaluation Parameter | Fixed-Roof Tanks | Floating Roof Tanks (Internal / External) |
Vapor Headspace (Ullage) | Large permanent air pocket above liquid | Minimal to zero (Roof floats directly on liquid) |
Evaporation & Product Loss | High (Vulnerable to breathing and working losses) | Extremely Low (Reduced by over 90%) |
Fire & Explosion Risk | Moderate to High (Accumulates flammable vapor-air mixes) | Low (No vapor headspace for gas accumulation) |
Environmental Emissions | Difficult to control; high VOC output | Superior compliance; tight rim seals suppress emissions |
Primary Applications | Heavy fuel oils, asphalt, water, low-volatility liquids | Crude oil, gasoline, jet fuel, volatile petrochemicals |
Frequently Asked Questions (FAQ)
Q: Why do oil tanks have floating roofs instead of fixed roofs?
A: Oil tanks use floating roofs to eliminate the vapor space above volatile liquids, preventing evaporative product losses, stopping harmful VOC emissions, and removing the risk of explosive vapor-air mixtures gathering inside the tank.
Q: How does a floating roof move as oil is pumped in and out?
A: A floating roof operates as a passive mechanical system. As liquid is pumped into the tank, the buoyant roof rises automatically; as oil is drawn out, the roof slides downward while maintaining a tight seal against the tank walls.
Q: What is the difference between internal and external floating roofs on oil tanks?

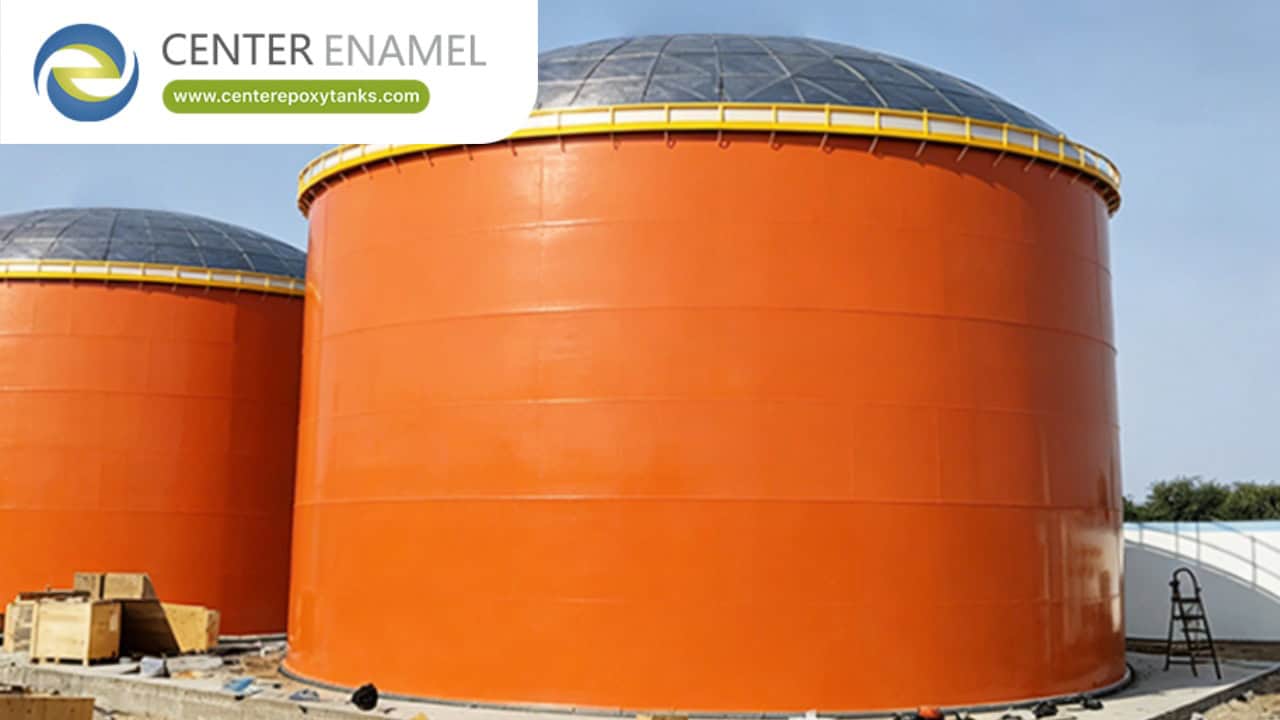

A: An External Floating Roof (EFR) is exposed directly to the sky in an open-top cylindrical tank. An Internal Floating Roof (IFR) operates inside a tank that features a permanent outer fixed roof or geodesic dome, protecting the floating deck from rain, snow, and wind.
Q: Do floating roof tanks completely eliminate fire hazards?
A: While they drastically reduce fire risks by eliminating flammable vapor headspaces, rim seal fires can occasionally occur due to lightning strikes. Consequently, floating roof tanks are engineered with specialized lightning shunts and foam fire-suppression systems.
