What Are Floating Roofs on Tanks Used For? Purpose, Benefits, and Design
In industrial bulk storage—spanning upstream petroleum terminals, refineries, and chemical processing facilities—managing volatile liquids requires specialized engineering. Floating roofs on storage tanks are dynamically buoyant structures engineered to rest directly on the surface of stored liquids, rising and falling vertically with changes in inventory levels.
Unlike fixed-roof tanks that maintain a permanent air pocket (ullage) above the fluid, floating roof tanks eliminate this headspace. Understanding what floating roofs are used for is essential for plant safety, environmental compliance, and preventing multimillion-dollar product losses.
1. Primary Purposes and Operational Functions of Floating Roofs
Floating roofs serve three critical operational functions in aboveground storage tanks (ASTs):
·
Elimination of Vapor Space and Evaporative Losses: In fixed-roof tanks storing volatile liquids like crude oil, gasoline, or naphtha, high temperatures cause liquids to vaporize into the headspace. A floating roof rests directly on the fluid, reducing the vapor space to essentially zero and cutting volatile organic compound (VOC) emissions by up to 99%.
·
·
Enhanced Fire and Explosion Safety: Flammable vapors trapped in a tank ullage create high explosion risks if exposed to lightning or static discharge. By removing the vapor pocket entirely, floating roofs eliminate the combustible mixture zone, drastically reducing fire hazards.
·
·
Mitigation of Internal Tank Corrosion: Condensation accumulating in the vapor space of fixed-roof tanks accelerates plate degradation on the roof underside and upper shell courses. Contact-type floating roofs protect structural plates from severe corrosive vapor attacks.
·
2. Key Configurations: Internal vs. External Floating Roofs
Floating roof designs are categorized into two primary configurations governed by international engineering standards like API 650:
·
External Floating Roofs (EFRs): Installed in open-top cylindrical steel tanks where the roof deck is exposed directly to the elements (sun, rain, snow). They feature heavy welded carbon steel pontoon or double-deck structures equipped with complex drainage systems and primary/secondary rim seals. They are heavily utilized in massive crude oil terminal tank farms.
·
·

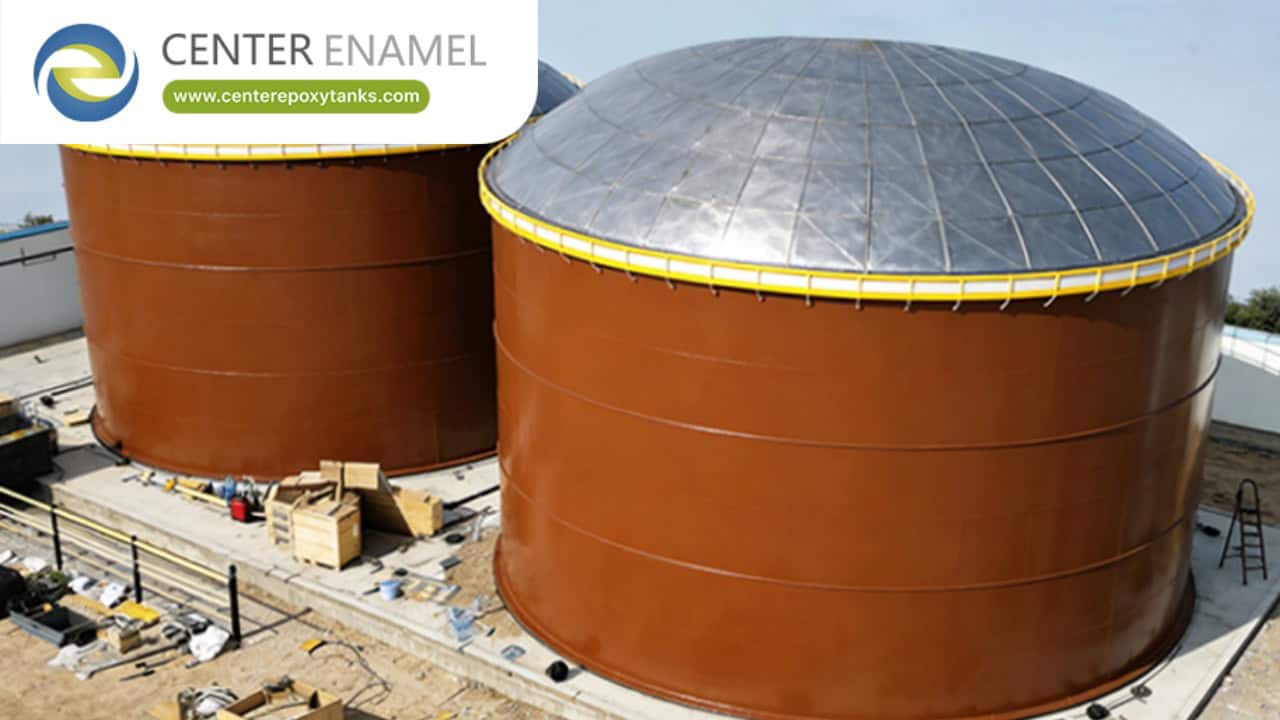

Internal Floating Roofs (IFRs): Operating inside a tank that already features a permanent fixed roof (such as a cone roof or aluminum geodesic dome). The fixed roof shields the floater from weather extremes, while the internal deck traps vapors beneath it. IFRs are ideal for aviation fuel, high-purity chemicals, and refined products where water contamination must be strictly avoided.
·
Data Table: Floating Roof Configurations Matrix
Design Parameter | External Floating Roof (EFR) | Internal Floating Roof (IFR) |
Tank Structure | Open-top vertical cylindrical shell | Fixed-roof tank (Cone roof or geodesic dome) |
Governing Standard | API 650, Annex C | API 650, Annex H |
Weather Shielding | None (Exposed to rain, snow, and wind) | High (Shielded by fixed outer roof) |
Primary Application | Crude oil, heavy petroleum terminal reserves | Jet fuel, aviation gasoline, refined solvents, chemicals |
Maintenance Profile | Requires active roof drain monitoring and seal checks | Lower maintenance due to protected internal environment |
Frequently Asked Questions (FAQ)
Q: What are floating roofs on tanks primarily used for?
A: Floating roofs are primarily used to eliminate the vapor space (ullage) above stored liquids, drastically reducing volatile organic compound (VOC) emissions, preventing product evaporation losses, and mitigating explosion and fire hazards.
Q: What is the difference between an internal and external floating roof?
A: An external floating roof sits in an open-top tank exposed directly to weather, whereas an internal floating roof operates inside a tank with a permanent fixed roof or dome that protects it from rain, snow, and wind.
Q: How do floating roofs prevent environmental pollution?
A: By floating directly on top of the liquid surface, they create a physical barrier and tight rim seal system that traps vapors inside the liquid matrix, stopping harmful hydrocarbons and VOCs from escaping into the atmosphere.
Q: What engineering codes govern floating roof tank design?
A: Floating roof tanks are strictly designed, fabricated, and inspected according to international engineering standards such as API 650 (specifically Annex C for external roofs and Annex H for internal roofs).
