Steel Pressure Vessels: Engineering Design, Compliance, and Industrial Applications

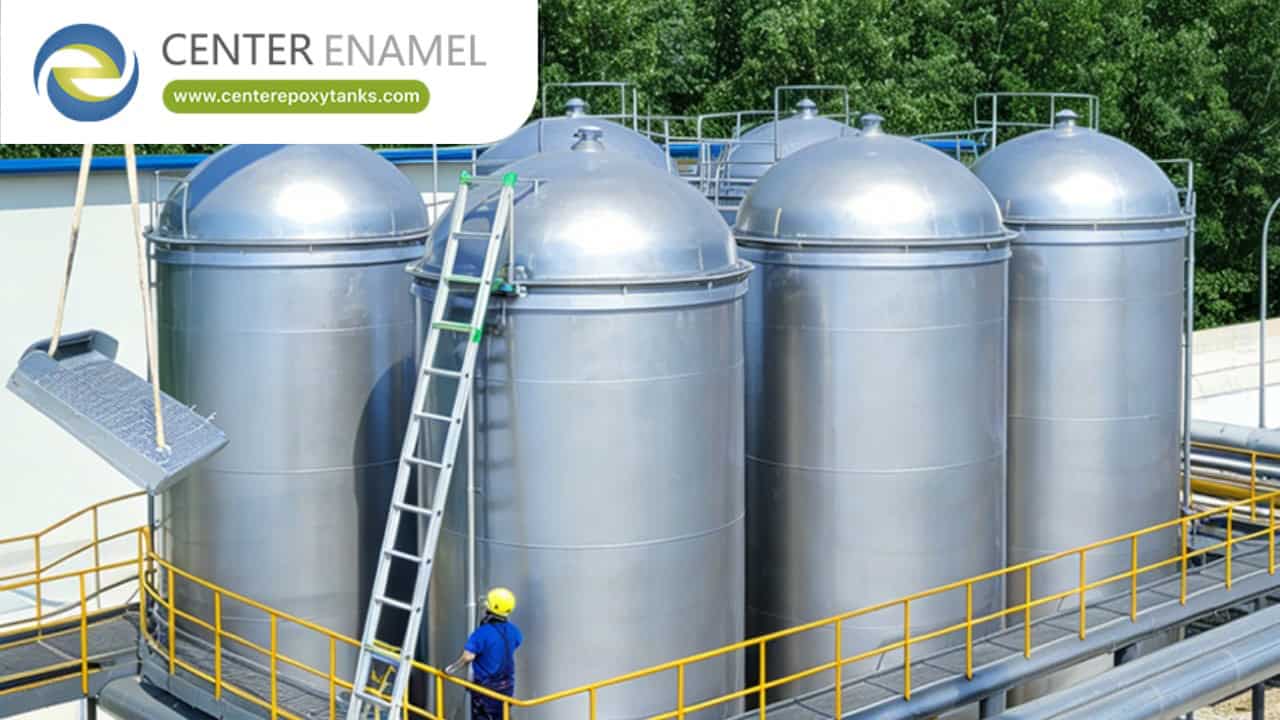

In heavy industries—spanning oil and gas extraction, petrochemical refining, power generation, and chemical processing—holding fluids or gases at high internal or external pressures is a fundamental requirement. Steel pressure vessels are leak-tight, engineered closed containers designed specifically to withstand pressures substantially different from ambient atmospheric conditions.
Because failure in a pressurized environment can result in catastrophic safety and environmental hazards, pressure vessels are among the most strictly regulated and meticulously engineered assets in industrial manufacturing.
1. Core Engineering Standards and Compliance Codes
Designing and fabricating steel pressure vessels requires absolute adherence to internationally recognized codes that govern structural wall thickness, stress calculations, welding procedures, and material traceability:
·
ASME Boiler and Pressure Vessel Code (BPVC Section VIII): The global benchmark for pressure vessel design. Division 1 covers standard industrial rules up to 3,000 psi; Division 2 provides alternative rules using more rigorous stress analysis for higher pressures; and Division 3 governs ultra-high-pressure applications above 10,000 psi.
·
·
API 620: Governs the design and construction of large, welded, low-pressure steel pressure vessels operating at internal pressures up to 15 psig.
·
·
European Pressure Equipment Directive (PED 2014/68/EU): The mandatory compliance framework for placing pressure equipment on the European market, ensuring strict safety and quality assurance protocols.
·
2. Material Selection and Fabrication Requirements
Choosing the correct grade of steel and executing rigorous fabrication controls are vital to ensuring structural integrity under high stress:
·
Plate Materials: Commonly utilizes high-strength carbon steels (ASTM A516 Grade 60/70) for moderate temperatures, alloy steels (ASTM A387) for high-temperature service, or austenitic stainless steels (ASTM A240 Grade 304/316) for corrosive media.
·
·
Welding and Non-Destructive Examination (NDE): All primary pressure-boundary welds must be executed by certified welders using qualified procedures. Fabricators perform comprehensive NDE—including radiographic testing (RT), ultrasonic testing (UT), and magnetic particle testing (MT)—to detect internal defects.
·
·
Post-Weld Heat Treatment (PWHT): Relieves residual stresses induced by heavy plate rolling and welding, ensuring the steel vessel can withstand brittle fracture and cyclic fatigue loading.
·
Data Table: Steel Pressure Vessel Specification Matrix
Vessel Configuration | Governing Code | Pressure Threshold | Primary Material | Typical Industrial Application |
Vertical Process Column / Tower | ASME Sec. VIII, Div. 1 or 2 | Moderate to High (15 to 500+ psi) | Carbon Steel (A516) / Alloy Steel | Fractional distillation, chemical synthesis, gas scrubbing |
Horizontal Pressure Drum / Separator | ASME Sec. VIII / API 12J | Low to Moderate (15 to 300 psi) | Carbon Steel with internal epoxy lining | Upstream oilfield wellhead phase separation |
Spherical Storage Bullet (Hortonsphere) | ASME Sec. VIII, Div. 1 | Moderate Internal Pressure | High-strength quenched and tempered steel | Bulk storage of liquefied petroleum gas (LPG), propane, butane |
Low-Pressure Gas Holder | API 620 | Up to 15 psig | Welded carbon steel plates | Petrochemical vapor recovery and low-pressure gas buffering |
3. Critical Safety Systems and Accessories
Pressure vessels are outfitted with specialized safety attachments to prevent over-pressurization and structural failure:
·
Pressure Relief Valves (PRVs): Automatically discharge internal gases or liquids when system pressure exceeds maximum allowable working pressure (MAWP).
·
·
Bursting Discs: Single-use sacrificial rupture membranes designed to provide instantaneous pressure relief in rapid over-pressurization scenarios.
·
·
Instrumentation Connections: Flanged nozzles, manways, and thermo-wells engineered for level gauges, pressure transmitters, and temperature sensors.
·
Frequently Asked Questions (FAQ)
Q: What is a steel pressure vessel?
A: A steel pressure vessel is a closed industrial container engineered from high-strength steel plates to hold gases or liquids at pressures significantly different from ambient atmospheric pressure.
Q: What is the primary standard for pressure vessel design?
A: The most widely recognized global standard is the ASME Boiler and Pressure Vessel Code (BPVC) Section VIII, which establishes rules for materials, design formulas, inspection, and testing.
Q: What is the difference between ASME Section VIII Division 1 and Division 2?
A: Division 1 relies on established design-by-rule formulas suitable for standard industrial pressure vessels. Division 2 utilizes more rigorous design-by-analysis methods, permitting thinner shell walls and higher allowable stresses for optimized, high-capacity vessels.
Q: Why do pressure vessels require post-weld heat treatment (PWHT)?
A: PWHT is performed to relieve residual mechanical stresses generated during heavy plate rolling and welding, preventing micro-cracking and improving the steel's toughness under operating pressures.
