What Is an Umbrella Roof Tank? Design, Structure, and Industrial Applications
In the field of industrial bulk liquid containment, aboveground storage tanks (ASTs) are engineered with various fixed-roof geometries tailored to environmental loads, liquid volatility, and structural capacity. While traditional cone and dome roofs dominate many sectors, the umbrella roof tank represents a specialized, highly efficient fixed-roof design utilized across petroleum, chemical, and municipal water industries.
Characterized by a smooth, spherically curved or umbrella-like convex shape welded to the top shell course, umbrella roof tanks offer unique aerodynamic and structural advantages for medium-diameter atmospheric storage.

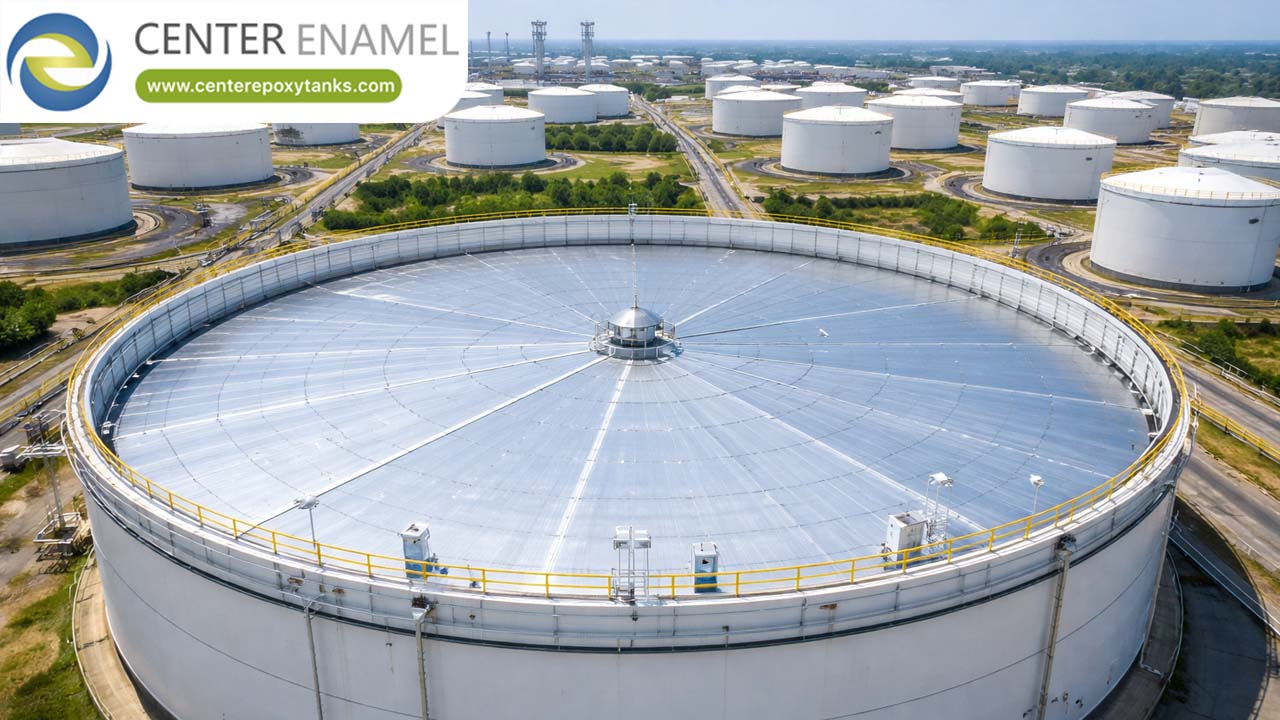

1. Structural Mechanics and Design Geometry
An umbrella roof tank is classified as a fixed-roof atmospheric storage vessel. Unlike a standard cone roof—which features straight, linear slopes converging at a central apex—an umbrella roof features a continuous, curved spherical radius.
Self-Supporting Clear-Span Design: Umbrella roofs are engineered to be self-supporting for medium-diameter tanks. The curved steel plates distribute dead loads and environmental snow loads uniformly outward to the top shell ring beam without requiring internal support columns.
Aerodynamic Surface Profile: The smooth, rounded convexity of the umbrella profile minimizes wind resistance. Wind passing over the tank flows smoothly across the curved surface, reducing aerodynamic drag and suction forces compared to flat or angular structures.
2. Governing Standards and Operational Applications
Umbrella roof tanks are designed and fabricated in strict accordance with international engineering codes to ensure structural safety under full operational loads:
Core Compliance Frameworks:
API 650: Governs welded steel tanks for oil storage, providing guidelines for self-supporting curved roof plate thicknesses and roof-to-shell junction requirements.
AWWA D100: Applied when umbrella-style curved roofs are utilized on municipal water storage reservoirs and industrial process water tanks.
Data Table: Fixed-Roof Tank Design Comparison Matrix
Fixed-Roof Tank Type | Roof Geometry & Shape | Support Structure | Primary Industrial Application | Governing Standard |
Umbrella Roof Tank | Smooth, spherically curved convex profile | Self-supporting (Clear-span for medium diameters) | Chemical storage, refined process water, non-volatile liquids | API 650 / AWWA D100 |
Cone Roof Tank | Straight, linear triangular slopes to a central apex | Self-supporting or column-supported | General industrial storage, bulk petroleum | API 650 / AWWA D100 |
Dome Roof Tank | Three-dimensional triangular space frame | Self-supporting aluminum geodesic frame | High-performance industrial storage, IFRT covers | API 650 Appendix G |
3. Key Advantages of Umbrella Roof Tanks
Facilities select umbrella roof configurations for specific structural and aesthetic engineering benefits:
Efficient Drainage: The smooth spherical curve allows rainwater, snow, and environmental debris to shed effortlessly toward the outer perimeter shell.
Elimination of Internal Obstructions: Because the roof is self-supporting, the interior remains completely unobstructed by support columns, simplifying internal maintenance, cleaning, and coating applications.
Frequently Asked Questions (FAQ)
Q: What is an umbrella roof tank?
A: An umbrella roof tank is a fixed-roof industrial storage vessel featuring a smooth, spherically curved convex roof that sheds environmental loads outward without requiring internal support columns.
Q: How does an umbrella roof differ from a cone roof?
A: While a cone roof features straight, linear slopes that meet at a sharp central apex, an umbrella roof features a continuous, rounded spherical curvature across its surface.
Q: Are umbrella roof tanks self-supporting?
A: Yes. For medium-diameter tanks, umbrella roofs are self-supporting, utilizing their curved geometry to distribute loads directly to the top shell ring beam.
Q: What engineering standards govern umbrella roof tanks?
A: They are designed, fabricated, and inspected in accordance with international industrial standards such as API 650 for petroleum storage and AWWA D100 for water systems.
