What Is an Internal Floating Roof (IFR)? Industrial Design, Types, and Emission Control Standards

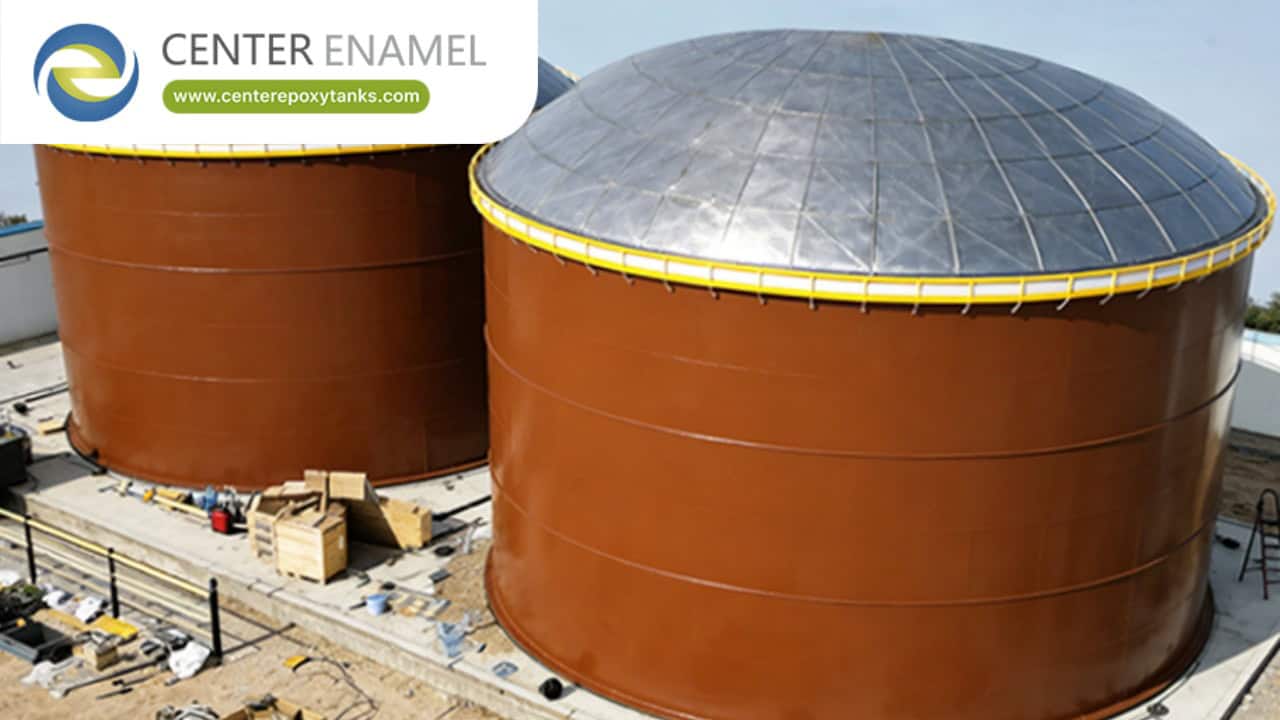

An internal floating roof (IFR) is a specialized, mobile deck suspended inside a fixed-roof industrial storage tank that floats directly on the surface of the stored liquid. As the liquid level rises or falls, the roof moves vertically inside the tank shell, eliminating the vapor space between the liquid surface and the outer roof.
This configuration is engineered primarily for storing volatile organic liquids, refined petroleum products, and high-value chemicals. By combining a conventional fixed outer roof (which protects the interior from weather elements like rain, snow, and wind) with a floating internal deck, an IFR tank achieves maximum vapor loss control, significantly reduces harmful volatile organic compound (VOC) emissions, and prevents hazardous vapor accumulation.
Core Functions of an Internal Floating Roof
To safeguard volatile liquids and maintain regulatory compliance, an internal floating roof fulfills four primary operational functions:
Vapor Space Elimination: By resting directly on the liquid medium, the deck removes the overhead air pocket. This prevents breathing and working losses caused by the thermal expansion and contraction of vapors in fixed-roof tanks.
Emission Reduction: High-integrity rim seals bridge the gap between the floating deck's outer edge and the tank wall, trapping fugitive gases and cutting VOC emissions by up to 90% or more compared to standard fixed-roof designs.
Weather Protection Shield: Because the floating deck is housed beneath a permanent fixed outer roof, it is entirely shielded from direct rainfall, heavy snow loads, and wind shear, eliminating the complex drainage requirements of external floating roofs.
Contamination Defense: The dual-barrier containment keeps external dust, moisture, and airborne pollutants out of the product, preserving high chemical purity for specialty chemicals and refined fuels.
Common Types of Internal Floating Roofs
Industrial tank manufacturers utilize several designs depending on the chemical characteristics of the stored liquid and structural load requirements:
Aluminum Pontoon Decks: Constructed from lightweight structural aluminum components with closed buoyancy chambers (pontoons). They offer high corrosion resistance, ease of assembly, and broad compatibility with refined fuels and petrochemicals.
Full-Contact Aluminum Sandwich Panels: These decks feature a honeycomb or hollow-core panel structure that remains in 100% direct contact with the liquid surface. This completely eliminates any localized vapor pockets, making them ideal for high-purity or highly volatile products.
Steel Pan Decks: Traditional welded steel pans that float on the liquid. While historically common, they are increasingly superseded by lightweight, corrosion-resistant aluminum structures that reduce internal dead loads.
Internal Floating Roof Comparison Table
Feature | Pontoon-Type Internal Roof | Full-Contact Honeycomb Roof |
Surface Contact | Partial contact; utilizes sealed pontoons for buoyancy with air pockets under the central deck. | 100% full surface contact; zero vapor space beneath the deck panels. |
Primary Application | General refined petroleum products, diesel, jet fuel, and medium-volatility chemicals. | High-volatility chemicals, specialty solvents, and products sensitive to vapor pocket accumulation. |
Material Benefits | Lightweight, highly buoyant, cost-effective for large-diameter storage tanks. | Maximum emission suppression, eliminates rim-space vapors entirely, high structural rigidity. |
Frequently Asked Questions (FAQ)
Q: What is the main advantage of an internal floating roof over a fixed roof?
A: The primary advantage is emission reduction and vapor loss control. A standard fixed-roof tank has an air pocket above the liquid where vapors accumulate and escape during temperature changes. An internal floating roof rests directly on the liquid, eliminating this vapor space and preventing product evaporation.
Q: Why does an internal floating roof need a fixed outer roof?
A: The fixed outer roof protects the internal floating deck from weather elements such as heavy rain, snow accumulation, and strong winds. This dual-protection design combines the weather resistance of a fixed tank with the superior emission control of a floating deck.
Q: What materials are modern internal floating roofs made of?
A: Modern internal floating roofs are predominantly fabricated from high-strength, corrosion-resistant structural aluminum or stainless steel. Aluminum is favored because it is lightweight, spark-resistant, easy to install, and compatible with a wide range of petroleum and chemical products.
Q: How do internal floating roofs prevent liquid from leaking past the perimeter?
A: They utilize specialized flexible perimeter components known as rim seals (such as wiper seals or mechanical shoe seals). These seals form a tight, continuous barrier against the inner tank wall, trapping vapors underneath while allowing the roof to slide up and down smoothly.
