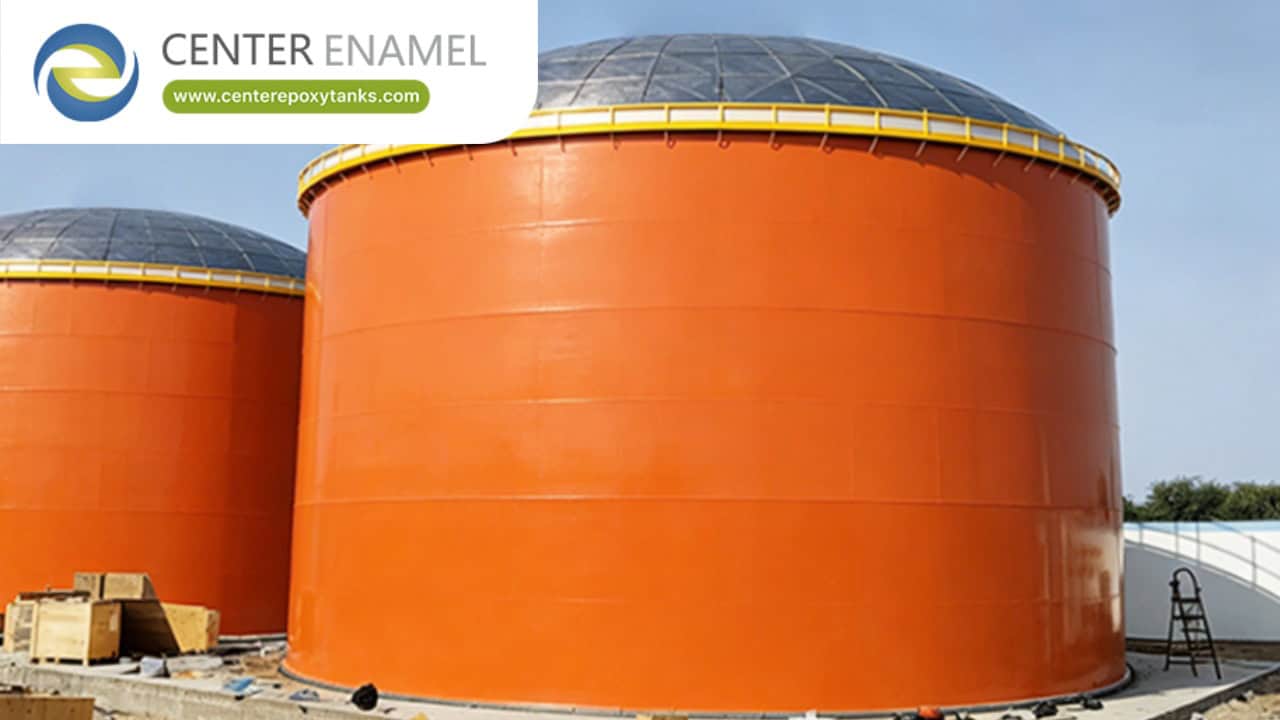

What is an FBE Detergent Storage Tank?
An FBE (Fusion Bonded Epoxy) detergent storage tank is an advanced modular, bolted steel industrial container engineered specifically to securely store liquid detergents, active surfactants, soap bases, cleaning agent raw materials, and process chemicals under strictly controlled, corrosion-resistant conditions.
In the household and industrial cleaning product manufacturing sectors, storing active surfactants and chemical formulations presents complex engineering challenges. Surface-active agents, varying pH levels, and foaming compounds can accelerate oxidation, promote residue buildup, or cause stress-corrosion cracking in conventional carbon steel containers. FBE detergent storage tanks combine the exceptional structural tensile strength of carbon steel panels with a factory-applied thermoset epoxy powder coating that is thermally fused to the substrate. This creates an impenetrable, chemically inert, and continuous barrier designed to safeguard product purity and structural longevity over decades of service.
The Engineering and Fusion-Bonding Process
The reliability and chemical endurance of an FBE detergent storage tank depend on a precise, factory-controlled manufacturing workflow:
1.
Substrate Surface Preparation (Shot Blasting): Premium structural steel plates undergo automated grit or shot blasting to achieve an optimal anchor profile (conforming to rigorous industrial standards like SSPC-SP 10), removing all surface oxidation, mill scale, and residual oils.
2.
3.
Electrostatic Powder Application: Specially formulated, high-performance thermoset epoxy powder is applied uniformly across both sides of the steel panels using automated electrostatic spray equipment.
4.
5.
Thermal Cross-Link Firing: The coated sheets enter high-performance thermal ovens (ranging from 150°C to 250°C), where the epoxy powder melts, flows, and chemically cross-links into a dense, continuous protective polymer film.
6.
7.
Rigorous Quality Control & Holiday Testing: Every individual panel undergoes strict dry film thickness verification and high-voltage holiday spark testing (typically at 1,100V to 1,500V) to guarantee absolute zero pinholes or micro-discontinuities.
8.
Technical Performance Matrix: Detergent and Chemical Storage Technologies
Technical Parameter | FBE Bolted Steel Detergent Tanks | Cast-in-Place Concrete Basins | Traditional Field-Welded Steel Tanks |
Surfactant & Chemical Resistance | Superior; cross-linked FBE barrier resists active surfactants, mild alkalis, and process chemicals | Vulnerable to chemical leaching, surfactant penetration, and structural degradation | Subject to internal oxidation, scaling, and weld-seam corrosion over time |
Installation Velocity | Rapid modular bolted assembly; significantly reduces project lead times | Extremely slow; requires extensive formwork, pouring, and multi-week curing | Moderate to slow; requires intensive field welding and non-destructive testing |
Modularity & Scalability | Easily expanded, modified, or relocated as facility production requirements change | Permanent and inflexible structure; expansion or relocation is virtually impossible | Rigid structural footprint; difficult to modify or expand without heavy cutting |
Lifecycle Maintenance | Minimal maintenance required; smooth surface prevents scaling and simplifies cleaning | Requires periodic crack injection, joint sealing, and waterproof membrane renewal | Requires frequent abrasive sandblasting and full exterior/interior repainting |
Key Advantages in Detergent Manufacturing Facilities
1. Superior Protection Against Chemical Corrosion and Contamination
Detergent raw materials and liquid surfactant solutions demand an unreactive storage environment to prevent discoloration, microbial growth, or product contamination. The dense, ultra-smooth cross-linked network of an FBE coating offers exceptional resistance to active ingredients and moisture, preventing rust scale from mixing with high-purity cleaning formulas.
2. Rapid Modular Erection Without Hot Work
Chemical processing plants frequently handle volatile ingredients where open-flame welding on-site introduces severe safety and fire risks. FBE detergent tanks utilize a prefabricated, bolted panel design assembled via high-strength hardware and elastomeric sealants, completely eliminating hazardous field welding.
3. Long-Term Structural Reliability and Easy Washdown
By merging the mechanical high tensile strength of structural steel with advanced thermoset polymer chemistry, FBE tanks deliver a cost-effective, leak-proof alternative that protects raw inventories while maintaining a reliable service life exceeding 30 years.
Frequently Asked Questions (FAQ)
Q: What is an FBE detergent storage tank used for?
A: An FBE detergent storage tank is used to securely store liquid detergents, active surfactants, soap bases, and cleaning product raw materials. The fusion-bonded epoxy coating protects the structural steel from chemical degradation while keeping the stored product pure and free from metallic contamination.
Q: Are FBE coatings resistant to active surfactants and mild alkalis found in cleaning products?
A: Yes. The thermoset epoxy coating undergoes a high-temperature cross-linking process that creates a dense, chemically inert barrier capable of withstanding a broad pH range and continuous exposure to various industrial surfactants and processing additives.
Q: How are the panels of an FBE detergent tank joined together to prevent leaks?
A: The modular steel panels are assembled using high-tensile structural bolts and specialized elastomeric or polyurethane sealants engineered to maintain a 100% leak-proof, airtight seal under continuous liquid hydrostatic pressure.
Q: What is the expected service life of an FBE detergent storage tank?
A: When manufactured in strict compliance with international industrial design codes (such as AWWA D103 or ISO standards) and properly maintained, an FBE storage tank is engineered for a dependable operational lifespan exceeding 30 years.
