What is an FBE Food Additive Storage Tank?

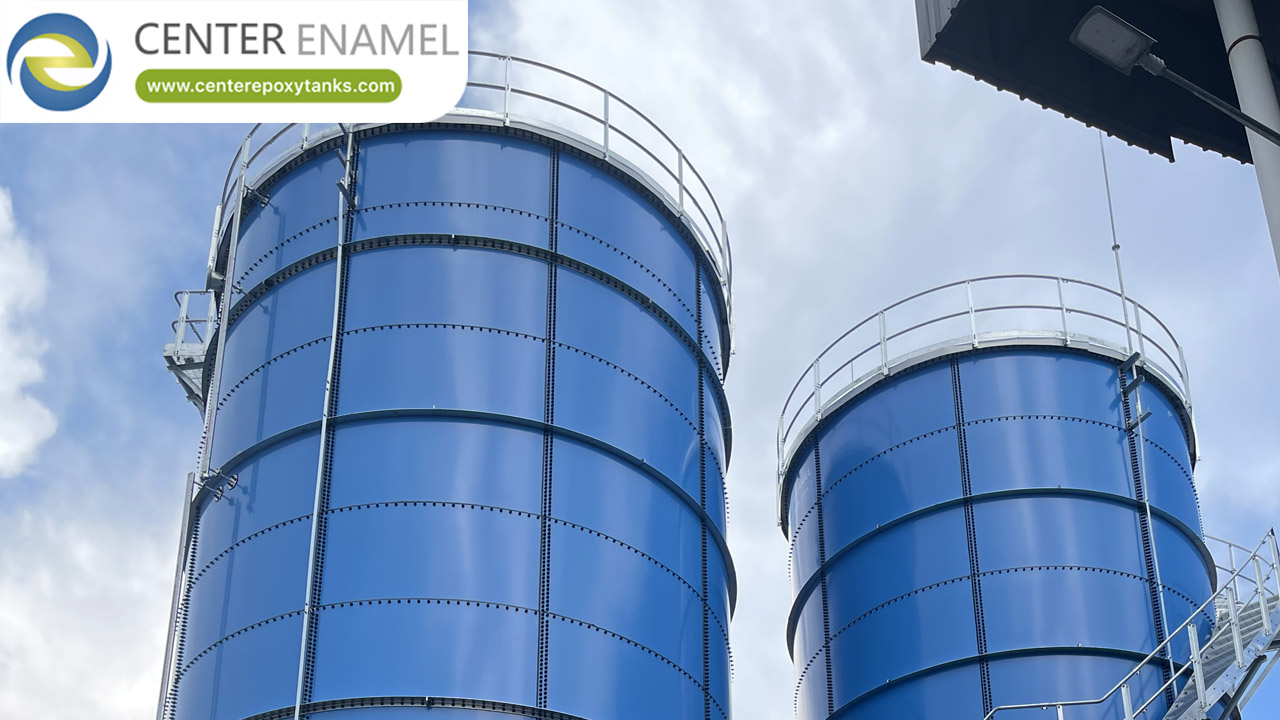

An FBE (Fusion Bonded Epoxy) food additive storage tank is an advanced modular, bolted steel industrial container engineered specifically to securely store liquid food ingredients, functional additives, syrups, preservatives, flavorings, and processing agents under strictly controlled, sanitary, and corrosion-resistant conditions.
In modern food and beverage manufacturing, storing active food additives presents stringent engineering challenges. Certain ingredients feature mild acidity, high sugar concentrations, or specialized chemical compositions that can accelerate oxidation, promote microbial buildup, or cause pitting corrosion in standard carbon steel containers. FBE food additive storage tanks combine the exceptional structural tensile strength of carbon steel panels with a factory-applied, food-grade thermoset epoxy powder coating that is thermally fused to the substrate. This creates an impenetrable, smooth, and chemically inert barrier designed to safeguard ingredient purity and structural longevity over decades of service.
The Engineering and Fusion-Bonding Process
The reliability, hygiene, and chemical endurance of an FBE food additive storage tank depend on a precise, factory-controlled manufacturing workflow:
1.
Substrate Surface Preparation (Shot Blasting): Premium structural steel plates undergo automated grit or shot blasting to achieve an optimal anchor profile (conforming to rigorous industrial standards like SSPC-SP 10), removing all surface oxidation, mill scale, and residual oils.
2.
3.
Electrostatic Food-Grade Powder Application: Specially formulated, FDA-compliant and high-performance thermoset epoxy powder is applied uniformly across both sides of the steel panels using automated electrostatic spray equipment.
4.
5.
Thermal Cross-Link Firing: The coated sheets enter high-performance thermal ovens (ranging from 150°C to 250°C), where the epoxy powder melts, flows, and chemically cross-links into a dense, continuous, and non-porous protective polymer film.
6.
7.
Rigorous Quality Control & Holiday Testing: Every individual panel undergoes strict dry film thickness verification and high-voltage holiday spark testing (typically at 1,100V to 1,500V) to guarantee absolute zero pinholes or micro-discontinuities that could compromise food safety.
8.
Technical Performance Matrix: Food Additive Storage Technologies
Technical Parameter | FBE Bolted Steel Food Additive Tanks | Solid Stainless Steel Tanks | Cast-in-Place Concrete Basins |
Food-Grade Purity & Safety | Smooth, non-porous food-grade FBE lining prevents flavor alteration and contamination | Ultimate chemical inertness and non-reactive food-grade metal surface | Prone to micro-cracking, porosity, and difficult interior cleaning |
Capital & Material Cost | Highly cost-effective for large-scale bulk storage capacities | Exceptionally high material expenditure, especially for large volumes | Moderate to high; requires intensive on-site labor and finishing |
Installation Velocity | Rapid modular bolted assembly using specialized food-grade gaskets and sealants | Slow, labor-intensive field welding, passivation, and pickling | Extremely slow civil construction, concrete curing, or field welding |
Lifecycle Maintenance | Minimal maintenance required; smooth surface prevents scaling and simplifies cleaning | Requires specialized weld inspection and passivation over time | Requires periodic crack injection, joint sealing, and waterproof membrane renewal |
Key Advantages in Food Processing Facilities
1. Absolute Preservation of Purity and Flavor
Food additives and liquid ingredients demand a completely unreactive storage environment to prevent chemical leaching, discoloration, or taste alteration. The dense, ultra-smooth cross-linked network of a food-grade FBE coating offers exceptional resistance to moisture and active ingredients, ensuring the stored product never contacts raw steel.
2. Rapid Modular Erection Without Hot Work
Food processing plants frequently operate in controlled environments where open-flame welding on-site introduces severe safety and hygiene risks. FBE storage tanks utilize a prefabricated, bolted panel design assembled via high-strength hardware and food-grade elastomeric sealants, completely eliminating hazardous field welding.
3. Long-Term Structural Reliability and Easy Washdown
By merging the mechanical high tensile strength of structural steel with advanced thermoset polymer chemistry, FBE tanks deliver a cost-effective, leak-proof alternative that protects raw inventories while maintaining a reliable service life exceeding 30 years.
Frequently Asked Questions (FAQ)
Q: What is an FBE food additive storage tank used for?
A: An FBE food additive storage tank is used to securely store liquid food ingredients, preservatives, syrups, flavorings, and processing additives. The fusion-bonded epoxy coating protects the structural steel from chemical degradation while keeping the stored product pure, hygienic, and free from metallic contamination.
Q: Are FBE coatings safe for storing human-consumption food ingredients?
A: Yes. When manufactured using specialized food-grade epoxy powder coatings that comply with international food-contact regulations (such as FDA or equivalent standards), FBE tanks provide a safe, non-toxic, and non-contaminating environment for bulk food additives.
Q: How are the panels of an FBE food additive tank joined together to prevent leaks?
A: The modular steel panels are assembled using high-tensile structural bolts and specialized food-grade elastomeric or polyurethane sealants engineered to maintain a 100% leak-proof, airtight seal under continuous liquid hydrostatic pressure.
Q: What is the expected service life of an FBE food additive storage tank?
A: When manufactured in strict compliance with international industrial design codes (such as AWWA D103) and properly maintained, an FBE storage tank is engineered for a dependable operational lifespan exceeding 30 years.
