What Is a Tank Foundation (Ringwall / Slab / Pier)?

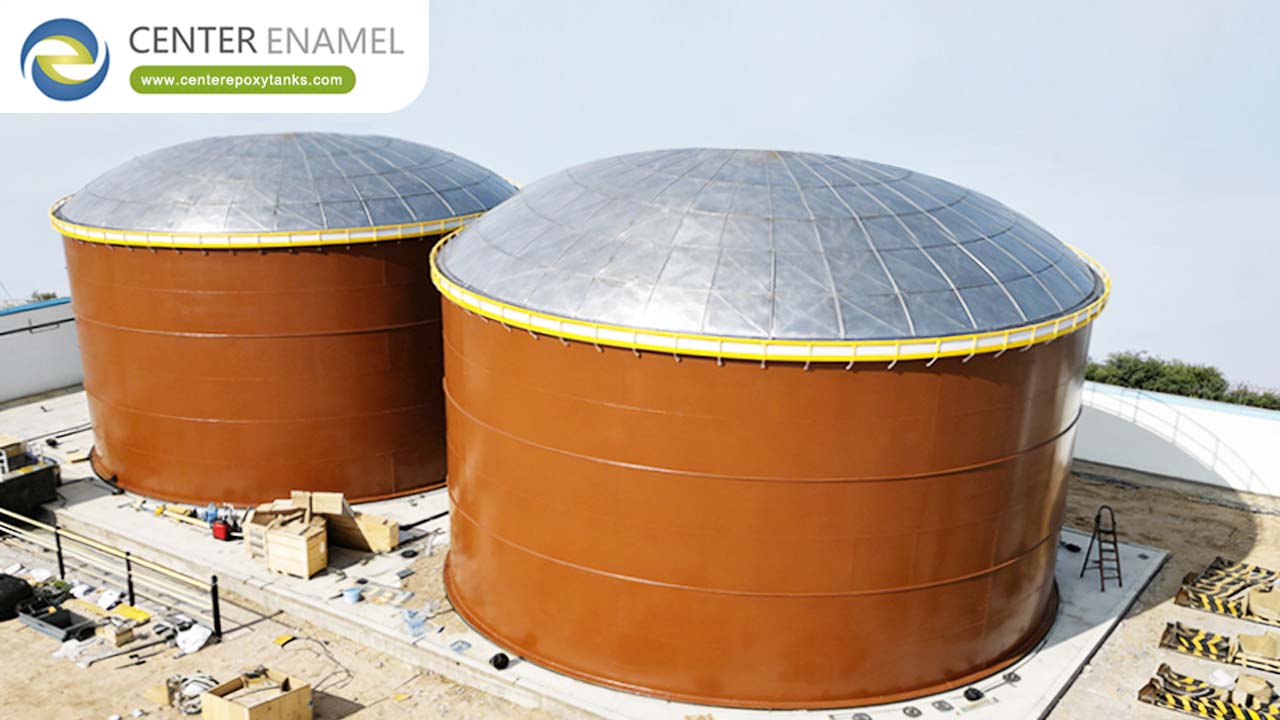

A tank foundation is the engineered base that carries a storage tank's full liquid weight and transfers it to the ground. The three main types — concrete ringwall, full concrete slab, and pile-supported pier or pile cap — are selected by soil capacity, tank size, and settlement tolerance.
A full tank exerts enormous, uniform pressure: a 40-meter-diameter tank of water loads its base with roughly the weight of the liquid itself — thousands of tonnes concentrated on a modest footprint. The foundation's job is to distribute that load, control settlement within tolerances the shell and appurtenances can absorb, and protect the tank bottom from groundwater and corrosion.
Ringwall foundations — a reinforced concrete ring under the shell perimeter with compacted fill inside — are the API 650 default for competent soils, economical and well understood. Full slabs carry poor or variable surface soils and small tanks. Where deep soft soils exist, pile-supported pier or pile-cap foundations transfer load to bearing strata, keeping differential settlement within the few-centimeter limits large tanks tolerate.
Why Foundation Failures Are Tank Failures
Settlement is the silent killer of tanks: edge settlement breaks welds, tilting overstresses nozzles and floating roofs, and bottom distortion ponds water into corrosion cells.
l Differential settlement beyond code limits cracks shell-to-bottom welds.
l Undetected soft spots under the bottom create bowl-shaped corrosion traps.
l Edge lift from frost or expansive soils unseals the tank perimeter.
Foundation Selection and Construction Sequence
A properly engineered foundation follows this path:
1. Geotechnical Investigation: Borings and lab testing establish soil strength, compressibility, and groundwater conditions across the tank footprint.
2. Bearing and Settlement Analysis: Load spread, uniform and differential settlement, and stability are computed to API 650 Annex B or equivalent criteria.
3. Type Selection and Detail Design: Ringwall, slab, or pile-supported options are compared on cost and performance, and the selected type is detailed with reinforcement and tolerances.
4. Construction and Monitoring: The foundation is built to grade with compaction control, anchor placement, and as-built survey, and settlement is monitored during hydrotest.
Ringwall vs Concrete Slab vs Pile-Supported Pier Foundations
Technical Parameter | Concrete Ringwall | Full Concrete Slab | Pile-Supported Pier/Cap |
Best Soil Conditions | Competent, uniform soils at shallow depth | Surface soils needing spread, small tanks | Deep soft soils over bearing strata |
Relative Cost | Lowest for large tanks | Higher concrete volume, best under 20 m diameter | Highest, driven by pile count |
Settlement Control | Good with uniform soils; edge-perimeter support | Uniform support, limited to smaller spans | Excellent, millimeter-level control |
Typical Tank Size | Medium to very large field erected tanks | Small to medium tanks | Any size where soil demands deep support |
Foundation Applications
l Ringwalls under API 650 terminal tanks on competent soils
l Slabs under small process and fuel tanks
l Pile caps for tanks on reclaimed or alluvial ground
l Frost-protected bases in cold climates
l Seismic base isolation and anchorage interfaces
l Repair and releveling of settled existing tanks
Key Advantages of Engineered Tank Foundations
1. Settlement Within Weld Tolerance
Calculated bearing and settlement keep shell distortion inside the limits bottom and shell welds are designed to absorb.
2. Bottom Corrosion Defense
Proper drainage, vapor barriers, and cathodic protection interfaces built into the foundation extend bottom life dramatically.
3. Hydrotest-Safe First Fill
Foundations designed with monitored first-fill settlement avoid the edge failures that occasionally end tank commissionings in the news.
Quality Standards and Proven References
Center Enamel provides design, fabrication, construction, and aftermarket services for storage tanks and silos under ISO 9001 and ISO 45001 certified quality systems, with EN 1090 structural steel certification. With three decades of experience and projects delivered to more than 100 countries — including biogas and wastewater references for Paques and Veolia and industrial references for PetroChina and Sinopec — the company supports tank assets from commissioning through decades of inspection-driven service.
Frequently Asked Questions (FAQ)
Q: Which foundation does API 650 recommend?
A: API 650 Annex B provides guidance for ringwall, slab, and pile-supported foundations, with selection driven by geotechnical conditions and settlement analysis rather than a single default.
Q: How much settlement can a tank tolerate?
A: Uniform settlement of substantial magnitude can be tolerated; it is differential settlement that is limited — API 653 defines evaluation criteria for edge, tilt, and bottom settlement profiles.
Q: Can a settled tank be releveled?
A: Yes. Releveling programs — grouting, mudjacking, or shell lifting with foundation reconstruction — are established API 653 repair practice.
Q: What is the expected lifespan of a professionally engineered steel tank?
A: Steel tanks designed and built to recognized codes (API 650, API 620, AWWA D100, or ASME Section VIII) and maintained under scheduled inspection, coating, and repair programs routinely deliver service lives exceeding 30 years — and tanks managed under API 653-class integrity programs commonly remain in safe service for 50 years or more.
