What Is a Storage Tank Bottom? Design, Configurations, and Industrial Applications
In the architecture of vertical cylindrical aboveground storage tanks (ASTs)—spanning petroleum terminals, chemical processing plants, and municipal water reservoirs—the foundation and base design are critical to overall integrity. What is a storage tank bottom? Simply put, it is the foundational structural floor of the tank that serves as the primary barrier preventing stored liquids from leaking into the soil or groundwater, while simultaneously bearing the immense hydrostatic weight of the contents above.
Choosing and engineering the correct tank bottom design impacts everything from drainage efficiency and residue management to long-term corrosion resistance and regulatory compliance.
1. Primary Configurations of Storage Tank Bottoms
Tank bottoms are engineered in several distinct geometries depending on the scale of the facility, the viscosity of the stored liquid, and operational drainage requirements:

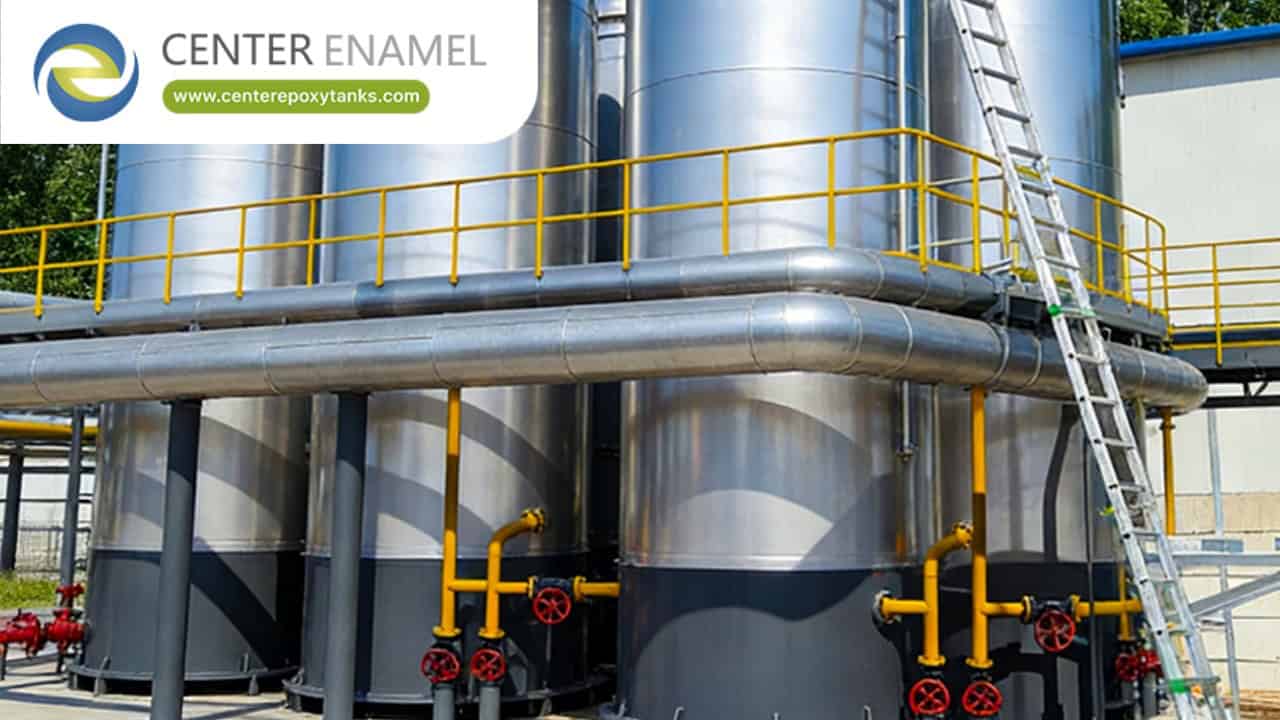

Flat Bottoms: The most common configuration for large-scale industrial vessels (such as those built to API 650 or AWWA D100 standards). Flat-bottom tanks rest directly on an engineered ringwall foundation or compacted gravel/sand pad. They are ideal for high-capacity storage where complete drainage is managed via internal sumps or shell-drain valves.
Sloped Bottoms: Engineered with a continuous downward incline toward a collection sump or drain port. Sloped bottoms prevent product pooling, reduce cleaning downtime, and minimize residue accumulation.
Conical Bottoms (Cone-Down / Cone-Up): Featuring a distinct funnel shape, conical bottoms are utilized in applications requiring absolute 100% evacuation of liquids, solids, or high-viscosity slurries. Cone-down bottoms naturally concentrate heavy sediments toward a central discharge valve.
2. Annular Plate Design for Large Field-Erected Tanks
In massive industrial storage tanks exceeding standard dimensions, standard lap-welded floor plates are insufficient at the perimeter where the tank shell meets the base.
Annular Bottom Plates: Regulatory standards mandate thick, butt-welded annular ring plates directly underneath the shell courses. These heavy carbon steel plates absorb high localized structural stresses, wind overturning moments, and seismic shear forces, ensuring the joint between the vertical shell and the floor remains secure.
Data Table: Storage Tank Bottom Design Matrix
Tank Bottom Configuration | Structural Geometry & Support | Drainage & Residue Management | Primary Industrial Application |
Flat Bottom with Annular Ring | Flat steel plates resting on a prepared ringwall or pad; thick outer plates | Moderate (relies on internal sumps or slight perimeter slope) | Crude oil terminals, refined fuel storage, water reservoirs |
Sloped Bottom | Incline gradient oriented toward a designated drainage sump | High (facilitates complete partial drainage and easy washdown) | Chemical processing, wastewater treatment, food/beverage liquids |
Conical Bottom (Cone-Down) | Funnel-shaped base requiring an elevated structural support stand | Maximum (allows total 100% evacuation of solid slurries and viscous fluids) | Sludge containment, chemical reactors, municipal clarifiers |
3. Corrosion Control and Inspection Protocols
Because tank bottoms are in constant contact with settled water, sludge, and corrosive chemical byproducts from underneath and above, they represent the most vulnerable corrosion zone in an industrial tank:
Internal Linings and Cathodic Protection: High-performance epoxy or phenolic linings are routinely applied to internal floor plates to isolate the steel substrate. Sacrificial anode or impressed current cathodic protection systems prevent underside and topside electrochemical corrosion.
API 653 Floor Inspections: Periodic out-of-service internal inspections utilize specialized non-destructive examination (NDE) technologies—such as Magnetic Flux Leakage (MFL) scanners and ultrasonic testing (UT)—to detect hidden pitting, wall thinning, and floor weld degradation before leaks occur.
Frequently Asked Questions (FAQ)
Q: What is a storage tank bottom?
A: A storage tank bottom is the structural base plate assembly of an aboveground vertical storage vessel that contains the liquid product and transfers its weight down to the foundation.
Q: What is the difference between a flat bottom tank and a cone bottom tank?
A: Flat bottom tanks rest directly on a level foundation pad and are standard for large-volume bulk storage, whereas cone bottom tanks feature a sloped, funnel-like base supported by a stand to facilitate complete drainage of heavy slurries.
Q: What are annular bottom plates in industrial tanks?
A: Annular plates are thick, heavy-gauge steel plates arranged in a ring directly under the tank shell wall in large field-erected tanks, designed to handle high structural stresses and seismic loads.
Q: How are tank bottoms protected against corrosion?
A: Tank bottoms are protected through a combination of engineered foundations (preventing moisture pooling), specialized internal chemical-resistant epoxy linings, and periodic inspections using Magnetic Flux Leakage (MFL) testing.
