What is a Sloped Bottom Tank?
A sloped bottom tank (also referred to as a pitched bottom tank) is an industrial storage vessel designed with a floor that intentionally inclines toward a specific drainage point, typically located at the lowest edge. Unlike traditional flat bottom tanks that inevitably leave a pool of residual liquid, the engineered slope utilizes gravity to ensure complete drainage of liquids and the efficient removal of settled heavy solids, sludge, and sediment.
This design is a cornerstone in industries where cross-contamination is unacceptable, or where the stored media contains suspended solids that would otherwise accumulate and degrade the tank floor over time.
The Engineering Behind the Incline
To achieve gravitational drainage without over-complicating the foundation structure, engineers must calculate the exact pitch required based on the viscosity of the stored media.
Standard Slopes: Most industrial applications for water or light chemicals utilize a slope of 1% to 5% (roughly 1° to 3°). This is enough to guide liquid to the drain nozzle without significantly impacting the overall height or wind-load engineering of the tank.
Steep Slopes: For wastewater treatment (like primary clarifiers) or heavy agricultural slurries, the slope may be increased up to 10%.
Foundation Integration: Because the tank shell must remain perfectly level, a sloped bottom is usually supported by a custom-graded concrete ring wall foundation or an elevated structural steel skirt that matches the exact pitch of the steel floor.
Sloped vs. Flat vs. Conical: Which Design to Choose?
When deploying a new tank matrix, choosing the correct bottom geometry dictates the tank's operational lifecycle and maintenance costs.
Design | Drainage Efficiency | Structural Complexity | Best Used For |
Flat Bottom | Low (leaves residue) | Lowest | Large volume, clean water, low-maintenance fluids |
Sloped Bottom | High (near complete) | Moderate | Wastewater, chemicals, environments requiring regular cleaning |
Conical Bottom | Maximum (center drain) | Highest | Heavy sludge, dry bulk silos, continuous clarification |
To see how these geometric differences impact daily operations, use the simulator below to test fluid drainage:
Key Industrial Applications

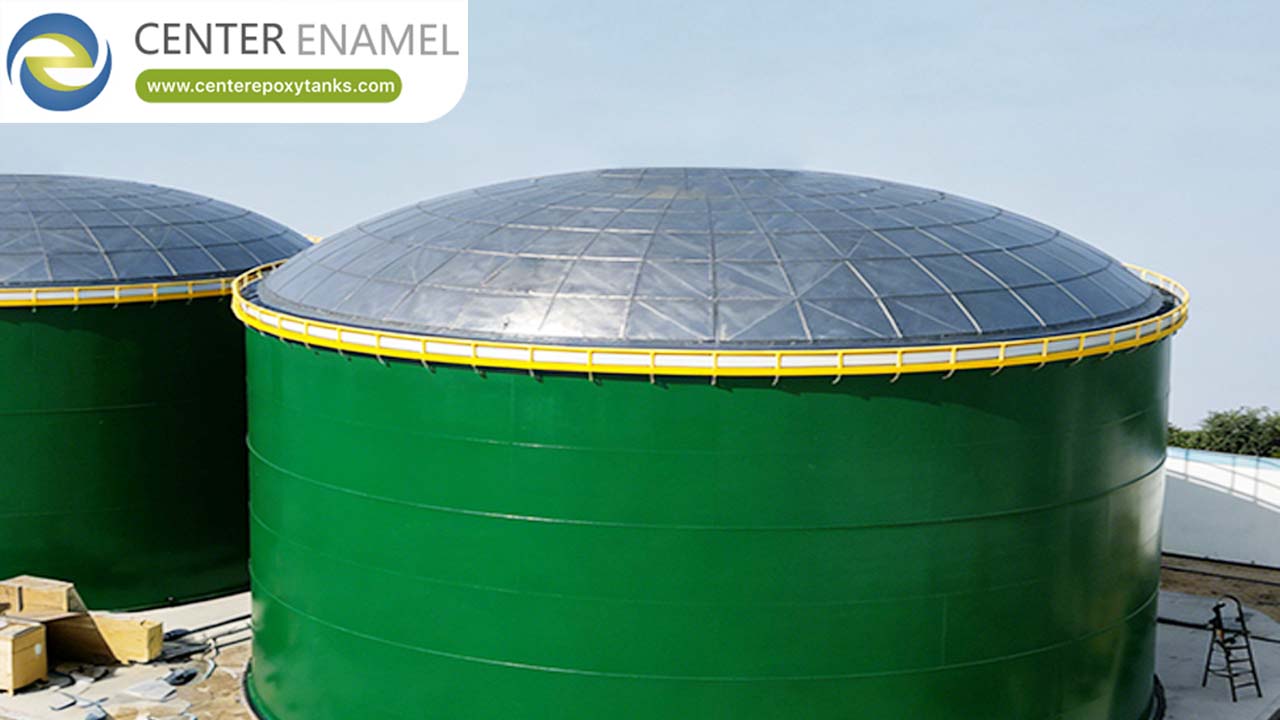

Because they strike a perfect balance between drainage efficiency and construction cost, sloped bottom tanks (particularly bolted Glass-Fused-to-Steel models) are heavily utilized across several B2B sectors:
Wastewater Treatment: Used as settling tanks where heavy flocs and sludge must be drawn off the bottom without manually entering the confined space.
Chemical Storage: Ensures that highly corrosive liquids or volatile chemical mixtures do not stagnate and degrade the tank floor coating.
Food and Beverage: Essential for brewery fermentation, dairy processing, and edible oils, where stringent CIP (Clean-In-Place) standards demand that zero old product remains before a new batch is introduced.
Frequently Asked Questions (FAQ)
1. Is a sloped bottom tank more expensive than a flat bottom tank?
Yes, slightly. The tank body itself costs roughly the same, but the engineering and civil works required for the foundation are more complex. You either need a precision-poured sloped concrete pad or a fabricated steel support structure to accommodate the pitch, which increases initial CAPEX.
2. Why not just use a conical bottom for everything?
While conical bottoms offer the absolute best center-drainage, they are significantly more expensive and functionally limited by size. A conical tank requires a heavy-duty elevated steel skirt or legs to suspend the cone off the ground. For massive, high-capacity tanks (e.g., millions of gallons), building a conical bottom is structurally impractical, making a sloped bottom on a concrete pad the only viable solution for drainage.
3. Can a flat bottom tank be retrofitted to have a sloped bottom?
Structurally modifying the steel floor of an existing flat tank is extremely difficult and usually not cost-effective. However, operators sometimes pour a specialized sloped concrete or epoxy grout floor inside an existing flat bottom tank to create a pitch toward the existing drain nozzle.
4. How does the drain nozzle placement work on a pitched tank?
The outlet nozzle is installed at the absolute lowest point of the slope. To maximize efficiency, a "sump" (a small recessed pit) is often welded into that lowest point, allowing the nozzle to draw out 100% of the liquid without drawing in air as the tank empties.
