What Is a Floating Roof Tank? Industrial Design, Types, and Vapor Emission Control Standards
A floating roof tank is a specialized industrial storage container featuring a roof that floats directly on the surface of the stored liquid rather than being fixed to the top of the shell. As the liquid level rises or falls, the roof moves vertically up and down inside the cylindrical tank wall.
This design is primarily engineered for storing volatile liquids—such as crude oil, gasoline, diesel, and various chemical products—with high vapor pressures. By eliminating the vapor space (air pocket) that typically exists between a fixed roof and the liquid surface, a floating roof drastically minimizes product evaporation, reduces harmful volatile organic compound (VOC) emissions, and enhances fire safety by preventing explosive vapor concentrations from accumulating.
How a Floating Roof Works
The fundamental operational mechanism of a floating roof relies on buoyancy and tight perimeter sealing:
Direct Surface Contact: The deck rests directly on the liquid medium, removing the headspace entirely. This prevents the breathing and working losses common in fixed-roof tanks where air expands and contracts with temperature shifts.
Rim Seal Systems: A flexible, continuous mechanical seal (rim seal) spans the narrow gap between the floating roof's outer edge and the inner wall of the tank shell. This seal prevents vapor escape while allowing the roof to glide smoothly up and down.
Rolling Ladders and Drainage: Systems like automatic roof drains and rolling stairways accommodate the vertical movement of the roof, ensuring safe operator access and proper stormwater shedding on open-top designs.
Types of Floating Roofs
Industrial facilities utilize two primary configurations of floating roof tanks depending on environmental exposure and product volatility:
External Floating Roof (EFR): The roof is open to the atmosphere and directly exposed to weather elements (rain, snow, and sunlight). EFRs are typically constructed with internal pontoons to provide permanent buoyancy and are fitted with primary and secondary rim seals to manage rainfall and wind-induced evaporation.

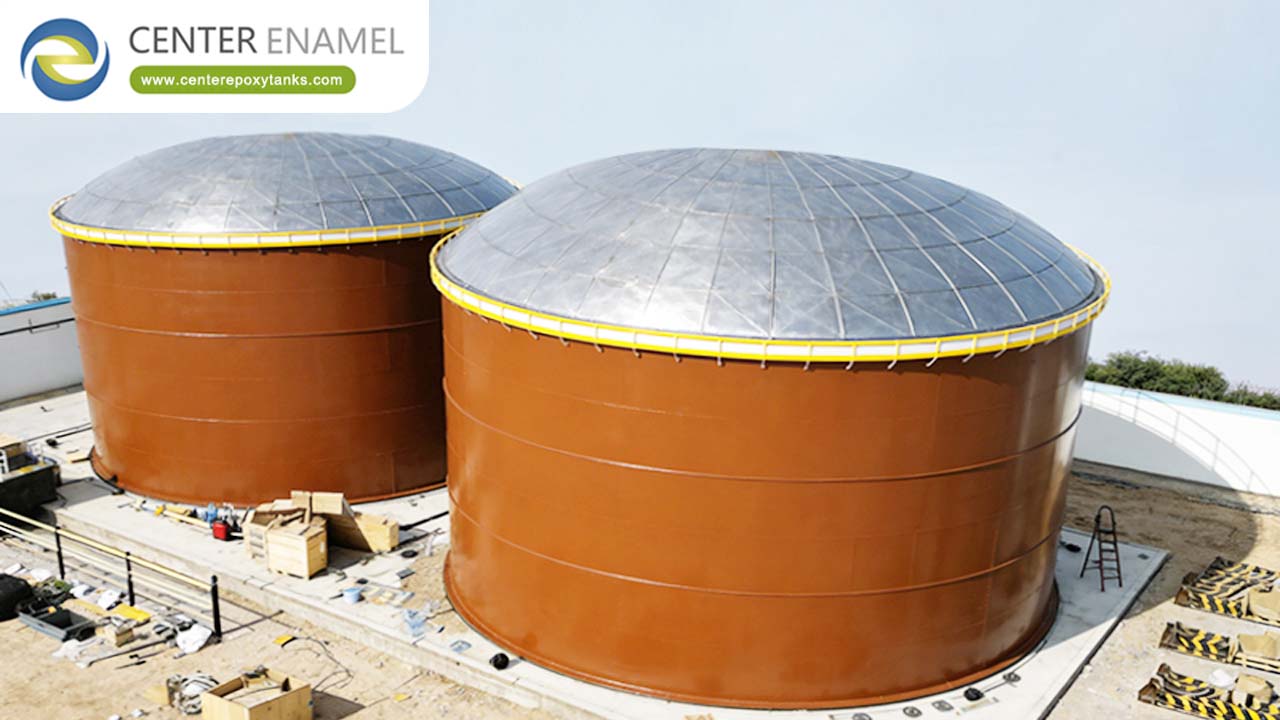

Internal Floating Roof (IFR): This design combines a fixed outer roof (common on standard vertical storage tanks) with a floating pan or pontoon deck installed inside. The fixed outer roof shields the floating deck from weather, while the internal floating roof captures vapors, offering a dual-layer defense against emissions.
Tank Configuration Comparison
Feature | External Floating Roof (EFR) | Internal Floating Roof (IFR) |
Environmental Protection | Open to the elements; requires engineered rainwater drainage systems. | Protected by a fixed outer roof, shielding the deck from wind, rain, and snow. |
Primary Application | Massive crude oil storage terminals and high-volume volatile petroleum reserves. | Refined fuels, petrochemicals, and chemicals requiring stringent weather protection. |
Vapor Loss Control | Excellent suppression of breathing losses; relies heavily on high-integrity rim seals. | Maximum emission control due to dual-barrier containment (fixed roof + floating deck). |
Frequently Asked Questions (FAQ)
Q: What is the main purpose of a floating roof tank?
A: The primary purpose of a floating roof tank is to reduce evaporation losses and harmful VOC emissions from volatile liquids. By resting directly on the liquid surface, it eliminates the vapor space where gases would otherwise accumulate and escape into the atmosphere.
Q: What is the difference between an internal and external floating roof?
A: An external floating roof is open to the sky and exposed directly to weather conditions, whereas an internal floating roof is placed inside a tank that also has a fixed outer roof. Internal roofs provide extra protection against rain and wind, while external roofs are standard for very large crude oil storage terminals.
Q: How do floating roofs prevent liquid from leaking past the edges?
A: Floating roofs use specialized perimeter devices known as rim seals. These flexible mechanical or liquid-filled seals bridge the gap between the moving roof deck and the tank wall, trapping vapors inside while allowing the roof to slide up and down freely.
Q: Do floating roof tanks eliminate the risk of tank fires?
A: While they do not eliminate fire risks entirely, they significantly enhance safety compared to fixed-roof tanks. By removing the flammable vapor-air space above the liquid, they drastically lower the risk of vapor ignition inside the container.
