What Is a Fixed Roof Tank? Definition, Design, and Industrial Applications
In the global industrial bulk liquid storage sector, selecting the correct tank architecture is critical for safety, capital efficiency, and operational reliability. A fixed roof tank is an atmospheric storage vessel featuring a permanently attached roof structure welded or bolted directly to the top of the cylindrical tank shell.
Unlike floating roof tanks that utilize a movable deck resting directly on the liquid, a fixed-roof tank maintains a permanent air space (ullage) between the liquid surface and the roof. Built in strict accordance with international design standards such as API 650 and EN 14015, fixed-roof tanks are the industry standard for containing low-volatility liquids, water, and dry bulk chemicals.
Core Structural Configurations of Fixed Roof Tanks
Fixed-roof tanks are classified primarily by the geometric design and internal support structure of their roofs:
1. Cone Roof Tanks
A cone roof features a sloped, conical geometry resembling a megaphone or inverted funnel.
·
Design & Support: For smaller diameters, the roof is self-supporting. For larger tank diameters, interior structural rafters, girders, and center support columns are required to bear snow, wind, and dead loads.
·
·
Application: Widely used for storing water, diesel fuel, heavy fuel oil, lubricants, and asphalt.
·

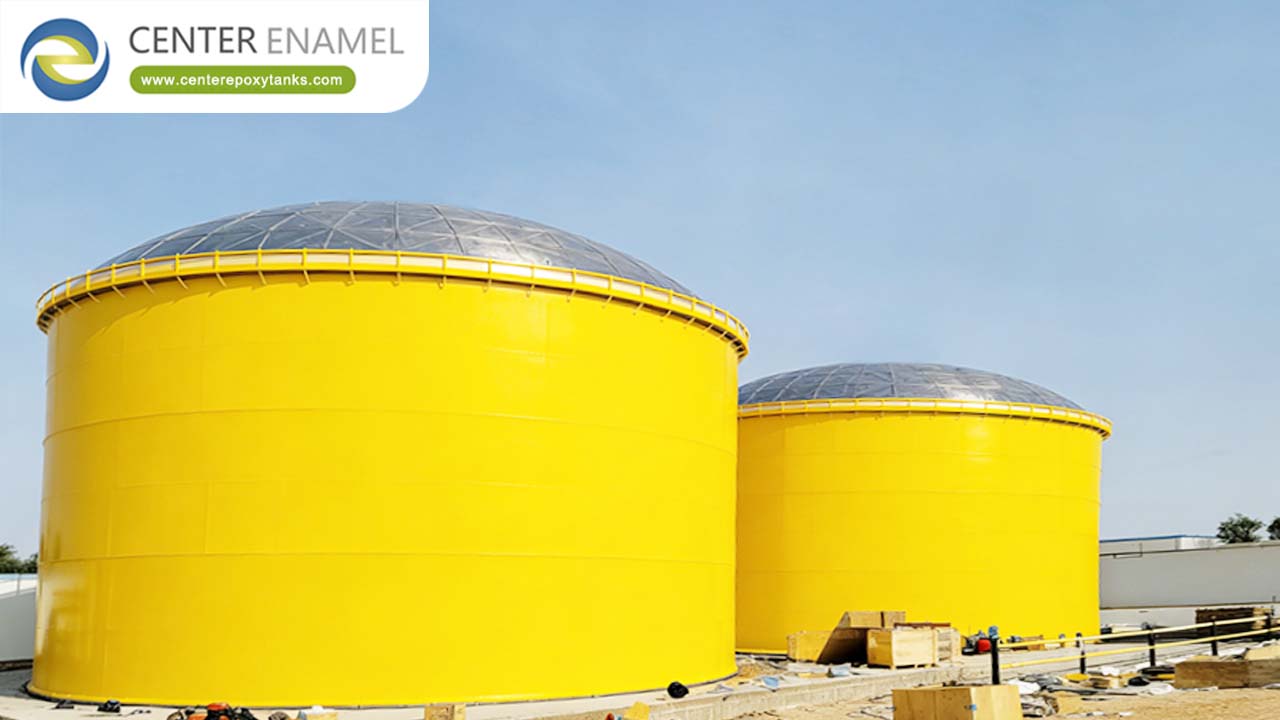

2. Dome Roof Tanks (Self-Supporting Spherical or Geodesic Domes)
Dome roofs feature a curved, self-supporting geometry that eliminates the need for internal support columns.
·
Design & Support: Geodesic aluminum domes or welded steel spherical domes distribute structural loads entirely along the perimeter tank shell rim.
·
·
Application: Premium chemical storage, wastewater treatment facilities, and dry bulk covers where internal column interference must be avoided.
·
3. Flat Roof Tanks
Flat roofs feature a horizontal plate structure spanning the top of the shell, typically reinforced with structural beams.
·
Design & Support: Designed primarily for specific low-pressure or open-top hybrid applications, though less common in modern bulk petroleum terminals due to rainwater pooling risks.
·
Data Table: Fixed-Roof Tank Structural Variants
Roof Geometry Type | Internal Support Structure | Primary Rainwater Drainage | Typical Industrial Application |
Supported Cone Roof | Rafters, girders, and center columns | Natural gravity slope toward shell rim | Large crude oil settling tanks, heavy fuel oil storage |
Self-Supporting Cone Roof | Self-supporting edge shell connection | Natural gravity slope toward shell rim | Small-to-medium industrial water and chemical tanks |
Geodesic Dome Roof | Clear-span structural aluminum space frame | Sloped curvature sheds precipitation outward | Chemical processing, modern bulk liquid terminals |
Flat Roof | Heavy structural steel beam grid | Requires perimeter drainage or overflow | Low-pressure industrial silos and specific process vessels |
Operational Characteristics and Vapor Space Management
·
Vapor Space (Ullage): Because the roof is static, a large air pocket exists above the stored liquid. As ambient temperatures fluctuate or inventory is pumped in and out, this headspace expands and contracts, driving "breathing losses" and "working losses" that vent hydrocarbon gases into the atmosphere.
·
·
Volumetric Limitations: Fixed-roof tanks are restricted to storing liquids with low vapor pressures. Storing highly volatile products (like crude oil or gasoline) in a standard fixed-roof tank creates a hazardous, flammable vapor-air mixture, requiring vapor recovery units (VRUs) or inert gas blanketing systems.
·
Frequently Asked Questions (FAQ)
Q: What is the primary purpose of a fixed roof tank?
A: The primary purpose of a fixed-roof tank is to provide a cost-effective, secure containment vessel for storing low-volatility liquids, water, heavy fuel oils, and industrial chemicals where floating roofs are unnecessary.
Q: Why can't volatile liquids like gasoline be stored in a standard fixed-roof tank?
A: Storing high-volatility liquids in a fixed-roof tank creates a large, flammable vapor space (ullage) in the headspace. Temperature fluctuations cause this vapor to expand and escape, leading to high evaporative losses and severe explosion hazards.
Q: What is the difference between a cone roof tank and a dome roof tank?
A: A cone roof features a sloped, conical shape that often requires internal support columns for larger diameters. A dome roof features a curved, self-supporting geometry (such as a geodesic aluminum dome) that requires zero internal support columns.
Q: Can a fixed-roof tank be retrofitted into a floating roof tank?
A: Yes. Many industrial facilities perform cost-effective retrofits by installing an internal floating deck inside an existing fixed-roof tank shell, creating an internal floating roof tank (IFRT) to improve VOC emission control.
