Storage Tank Roof Types: A Comprehensive Guide to Fixed and Floating Roof Systems
In the global oil, gas, chemical, and water treatment sectors, selecting the correct vessel architecture is vital for structural safety, environmental compliance, and long-term economic efficiency. The defining structural element of any bulk storage vessel is its roof.
Broadly classified into fixed roof and floating roof designs, storage tank roof types dictate how a facility manages internal vapor spaces, volatile organic compound (VOC) emissions, weather exposure, and fluid volatility. Understanding these structural options ensures compliance with international design standards such as API 650 and EN 14015.
1. Fixed Roof Storage Tanks
A fixed roof tank is an atmospheric storage vessel featuring a permanently attached roof structure welded or bolted directly to the top of the cylindrical tank shell. Unlike floating systems, a fixed-roof tank maintains a permanent air space (ullage) between the liquid surface and the roof.
·
Cone Roofs: Featuring a sloped, conical geometry, cone roofs are self-supporting for smaller diameters or reinforced with internal rafters, girders, and center support columns for larger tanks. They are widely used for storing water, diesel, heavy fuel oils, and lubricants.
·
·

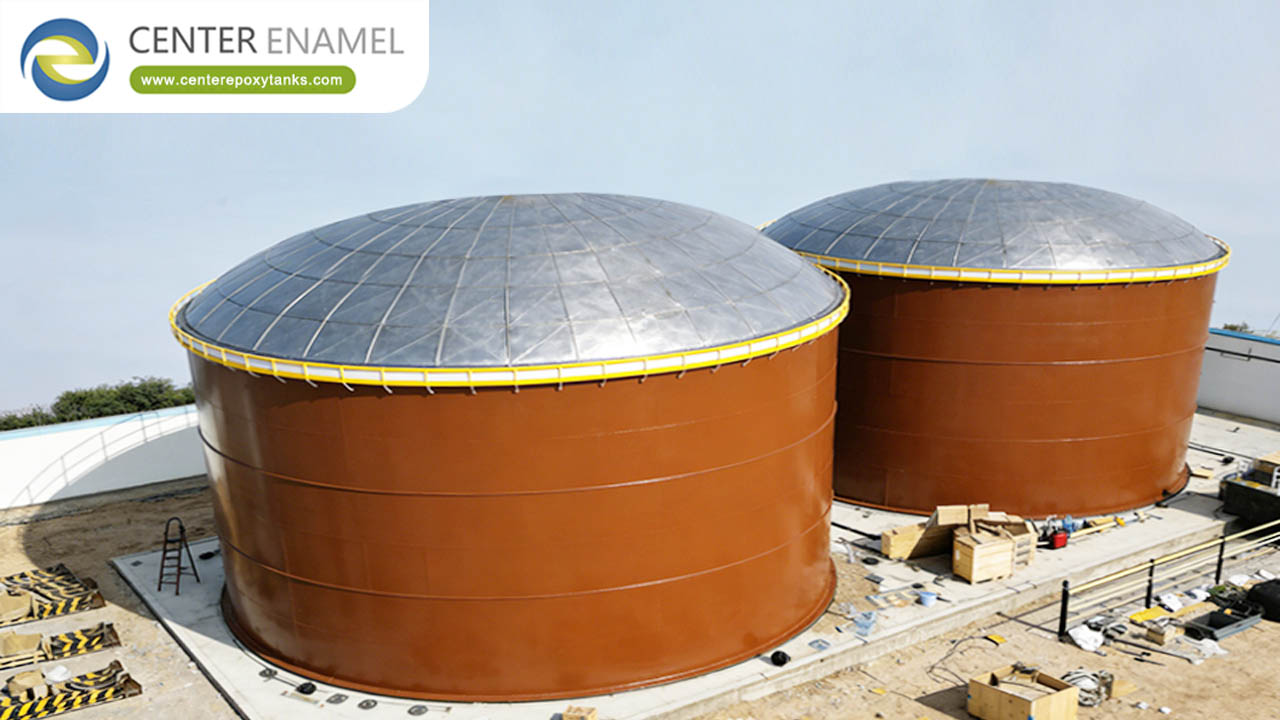

Dome Roofs (Geodesic Domes): Fabricated from clear-span structural aluminum or welded steel, dome roofs provide a curved, self-supporting geometry that eliminates internal support columns. They are ideal for modern chemical processing and wastewater storage.
·
·
Vapor Management Profile: Because the roof is static, ambient temperature shifts cause the vapor space to expand and contract, driving "breathing losses" and venting hydrocarbon gases unless paired with vapor recovery units (VRUs).
·
2. Floating Roof Storage Tanks
A floating roof tank is engineered specifically to contain volatile organic liquids by eliminating the internal vapor space. The roof rests directly on the liquid surface, rising and falling dynamically with inventory levels to suppress evaporation.
·
External Floating Roof Tanks (EFRTs): Featuring an open-top cylindrical shell, an EFRT houses a floating deck directly exposed to the atmosphere. They are heavily utilized in massive crude oil storage terminals where tank diameters exceed 50 meters, requiring dedicated roof drainage systems.
·
·
Internal Floating Roof Tanks (IFRs): An IFR combines a movable internal floating deck housed inside a closed-top tank shell capped by a permanent fixed outer roof or geodesic aluminum dome, providing complete weather shielding and dual-stage VOC containment.
·
Data Table: Comprehensive Comparison of Storage Tank Roof Types
Roof Classification | Structural Geometry | Vapor Space (Ullage) | Primary VOC Control | Typical Stored Products |
Fixed Cone Roof | Sloped conical plate with optional internal columns | Large headspace pocket | Requires Vapor Recovery Unit (VRU) | Water, diesel, heavy fuel oil, lubricants |
Geodesic Aluminum Dome | Curved, clear-span self-supporting frame | Enclosed static headspace | High (When paired with internal deck) | Chemicals, aviation fuel, municipal water |
Internal Floating Roof (IFR) | Movable deck beneath fixed outer roof / dome | Virtually zero vapor space | Extremely high (Dual-barrier containment) | Refined fuels, gasoline, volatile chemicals |
External Floating Roof (EFRT) | Open-top movable deck exposed to atmosphere | Virtually zero vapor space | High (Suppressed via rim seals and deck) | Crude oil, bulk petroleum distillates |
Key Engineering Selection Criteria
When specifying storage tank roof types for an industrial facility, engineering teams evaluate four critical parameters:
Product Volatility: Low-volatility fluids (water, diesel) are safely stored in fixed-roof tanks, whereas highly volatile products (crude oil, gasoline, aviation fuel) mandate floating roofs to prevent explosive vapor accumulation.
Environmental Compliance: Strict VOC emission mandates enforced by regulatory bodies often require transitioning from basic fixed roofs to internal floating roofs or domed structures.
Climatic Conditions: Heavy rainfall and snowfall regions favor closed-top fixed roofs or domed internal floating roofs to eliminate rainwater loading risks associated with open-top external floating roofs.
Capital & Maintenance Costs: Fixed roofs offer lower initial construction costs, while floating roof designs require ongoing rim seal inspections and maintenance but yield substantial savings through product retention.
Frequently Asked Questions (FAQ)
Q: What is the fundamental difference between fixed and floating storage tank roofs?
A: A fixed roof is permanently attached to the tank shell, leaving a static air space (ullage) above the liquid. A floating roof features a movable deck that rests directly on the liquid surface, moving dynamically with inventory to eliminate the headspace.
Q: Why are geodesic aluminum domes preferred over traditional steel cone roofs?
A: Geodesic aluminum domes are lightweight, clear-span structures requiring zero internal support columns. They are naturally corrosion-resistant without requiring paint coatings and reflect solar radiation to minimize product evaporation.
Q: Can an existing fixed-roof tank be upgraded to a floating roof tank?
A: Yes. Many industrial facilities perform cost-effective retrofits by installing an internal floating deck inside an existing fixed-roof tank shell, creating an internal floating roof tank (IFRT) to improve VOC emission compliance.
Q: Do floating roof tanks require external electrical power to operate?
A: No. Floating roof tanks operate entirely passively. The roof rises and falls automatically based on the hydrostatic pressure and volume of the liquid being pumped into or out of the tank.
