Comparison of Cone and Dome Roof Tanks: Structure, Performance, and Applications
In the global industrial bulk liquid storage sector, selecting the correct vessel architecture is vital for structural safety, capital efficiency, and long-term maintenance. Among atmospheric storage tanks built to standards such as API 650, fixed-roof designs are universally divided into two primary structural geometries: cone roof tanks and dome roof tanks.
While both serve to contain low-volatility liquids, industrial wastewater, or act as fixed outer shells for internal floating decks, their engineering design, internal support requirements, and corrosion resistance profiles differ significantly.
1. Cone Roof Tanks: Design and Structural Mechanics
A cone roof tank features a sloped, conical plate geometry resembling an inverted funnel or megaphone, welded directly to the top of the cylindrical tank shell.
·
Internal Support Requirements: For smaller tank diameters, cone roofs are self-supporting, transferring loads entirely to the perimeter shell. However, for large-capacity tanks exceeding medium diameters, cone roofs require extensive internal support structures—including rafters, girders, and center support columns.
·
·
Material and Maintenance: Fabricated traditionally from carbon steel plates, cone roofs require regular protective coating and repainting maintenance to prevent atmospheric corrosion over time.
·
·
Primary Applications: Widely utilized for large crude oil settling tanks, heavy fuel oil storage, diesel reserves, and municipal water containment.
·
2. Dome Roof Tanks: Design and Structural Mechanics
A dome roof tank features a curved, spherical or geodesic geometry engineered to span large diameters without requiring any interior structural supports.
·
Clear-Span Architecture: Modern geodesic aluminum domes are constructed using a precision-engineered space frame of triangulated aluminum struts and panels. The entire structural load is borne completely by the perimeter tank shell rim, achieving a 100% clear-span interior.
·
·
Corrosion Resistance: Fabricated from corrosion-resistant structural aluminum alloys, dome roofs do not require protective paint coatings, drastically reducing lifecycle maintenance overhead. Furthermore, aluminum panels reflect solar radiation, keeping internal temperatures lower.
·
·
Primary Applications: Modern chemical processing plants, municipal water treatment facilities, and high-purity refined product terminals, frequently paired with internal floating decks.
·
Data Table: Cone Roof vs. Dome Roof Tanks Technical Comparison
Technical Parameter | Cone Roof Tank (Steel) | Dome Roof Tank (Geodesic Aluminum) |
Roof Geometry | Sloped conical plate | Curved spherical clear-span space frame |
Internal Support System | Requires rafters, girders, and center columns (for large diameters) | Clear-span structure (Zero internal support columns) |
Construction Material | Welded carbon steel plates | Corrosion-resistant aluminum alloy struts and panels |
Corrosion & Maintenance | Requires periodic exterior/interior coating and painting | Maintenance-free; naturally resistant to atmospheric corrosion |
Solar Heat Reflection | Moderate (Depends on paint color and condition) | High (Aluminum surface reflects solar radiation) |
Typical Industrial Application | Heavy fuel oil, water storage, large crude oil settling | Modern chemical storage, municipal water, IFRT covers |
Key Engineering Selection Criteria
When specifying fixed roof types for an industrial project, engineering teams weigh three major factors:
1.

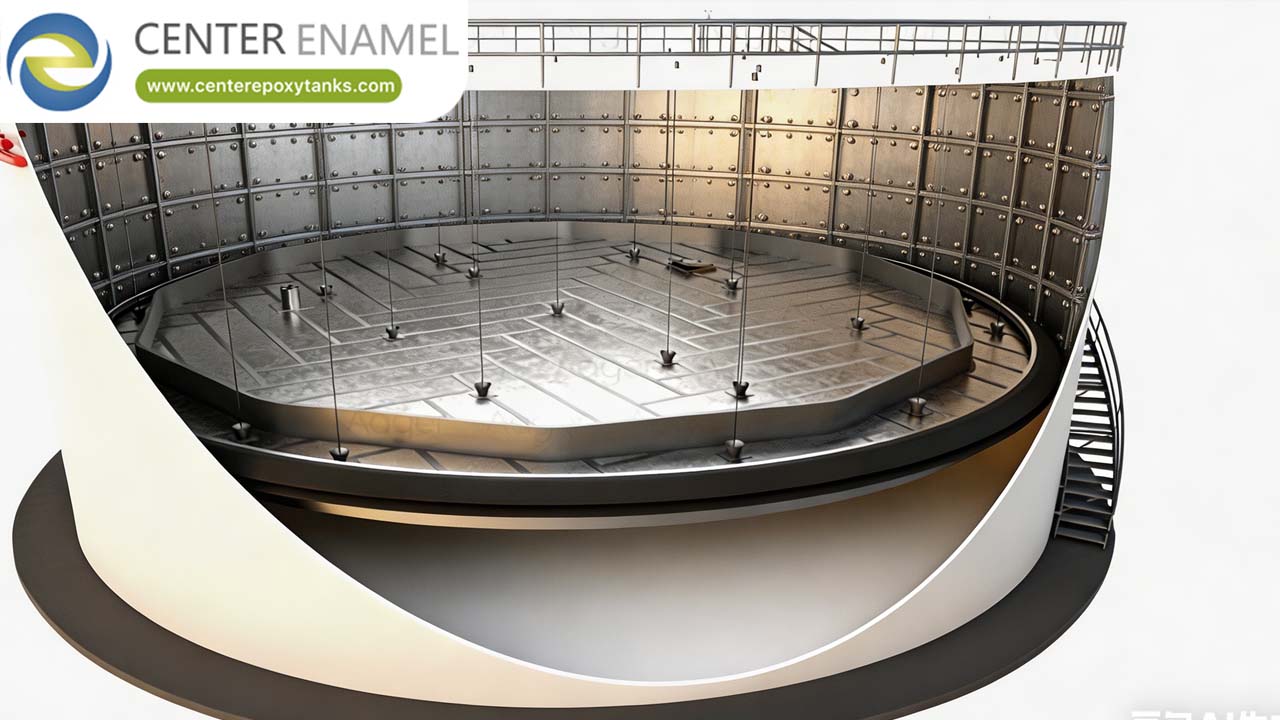

Internal Clearance Needs: If the vessel is configured as an Internal Floating Roof Tank (IFRT), a geodesic dome roof is vastly superior because its clear-span design eliminates internal support columns that can interfere with the vertical travel of the floating deck.
2.
3.
Lifecycle Maintenance Costs: While steel cone roofs often feature a lower initial capital expenditure, their ongoing maintenance requirements (rust remediation, repainting) frequently make aluminum dome roofs more cost-effective over a 20-to-30-year operational window.
4.
5.
Climatic and Environmental Loads: Both roof types are engineered to withstand local wind and snow loads, but geodesic domes utilize lightweight space-frame geometries that reduce dead load stress on the underlying tank shell.
6.
Frequently Asked Questions (FAQ)
Q: What is the primary difference between a cone roof tank and a dome roof tank?
A: A cone roof features a sloped, conical steel plate that often requires internal support columns for larger diameters. A dome roof features a curved, clear-span geometry made of structural aluminum that requires zero internal columns.
Q: Why are geodesic aluminum domes preferred for internal floating roof tanks?
A: Geodesic domes provide a clear-span interior with no support columns. This prevents mechanical interference with the floating deck as it moves vertically up and down inside the tank.
Q: Do cone roof tanks require internal support columns?
A: Small cone roof tanks can be self-supporting, but medium-to-large diameter cone roof tanks require internal rafters, girders, and center support columns to bear snow, wind, and dead loads.
Q: Which roof type offers better corrosion resistance?
A: Geodesic aluminum dome roofs offer superior corrosion resistance because they are fabricated from aluminum alloys that do not rust or require protective paint coatings, unlike carbon steel cone roofs.
