Specifications for Welded Steel Tanks: Navigating API, AWWA, and ASME Standards

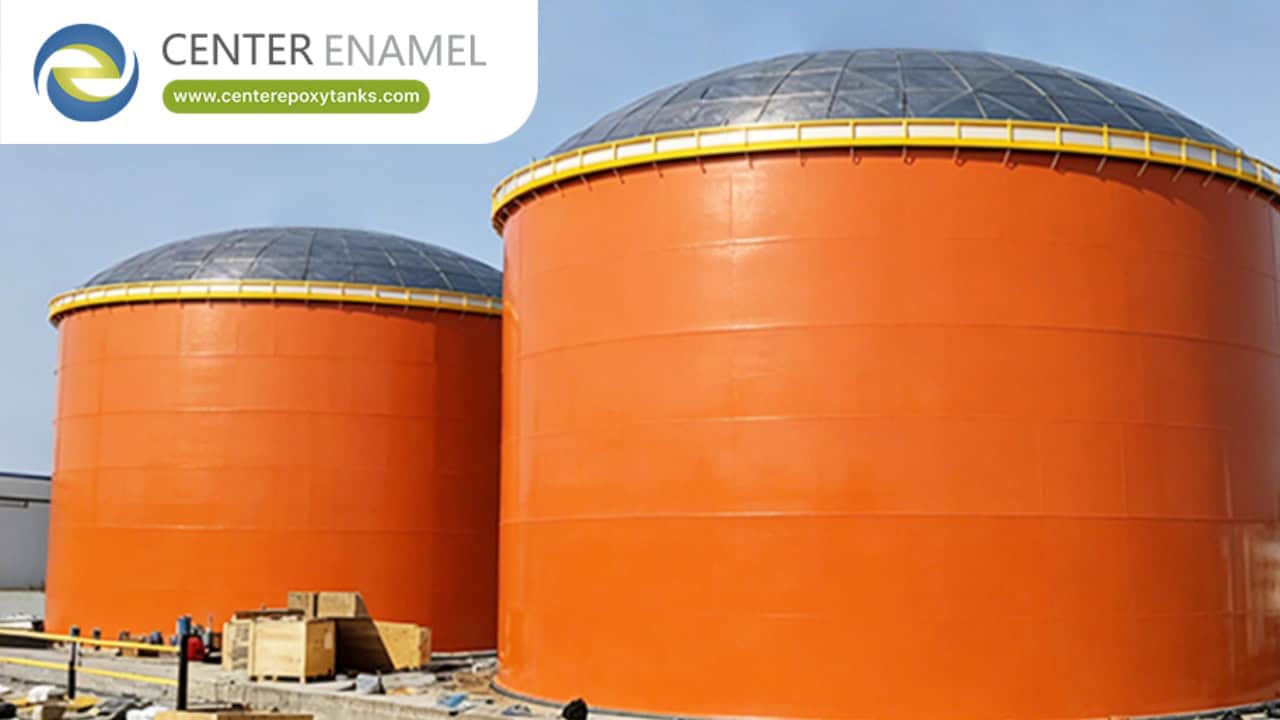

In heavy industrial infrastructure, specifying a welded steel tank is not a matter of simply requesting a volume capacity. A welded steel storage tank must be engineered, fabricated, and inspected according to strict, internationally recognized codes that govern everything from steel metallurgy to the specific angle of a weld bevel.
Whether the facility requires bulk crude oil storage at a coastal terminal or municipal potable water containment, understanding the governing specifications is the critical first step in procurement and EPC (Engineering, Procurement, and Construction) planning.
Here is the definitive guide to the primary engineering specifications for welded steel storage tanks.
The Big Three: API, AWWA, and ASME
The design and construction of a welded steel tank are dictated primarily by the stored medium, the operating pressure, and the design temperature. Three major organizations provide the framework for global tank construction.
1. API 650: Welded Tanks for Oil Storage
API 650 is the global benchmark for field-erected welded steel tanks used in the petroleum, petrochemical, and chemical industries.
Application: Crude oil, gasoline, diesel, jet fuel, and chemicals.
Pressure Limit: Designed for atmospheric pressure, supporting internal operating pressures up to a maximum of 2.5 psi (17.2 kPa).
Temperature Range: Operates safely between -40°F and 500°F (-40°C to 260°C).
Design Focus: Emphasizes structural stability against hydrostatic loads, wind, and seismic sloshing, while providing rigorous frameworks for vapor mitigation (e.g., integrating Internal Floating Roofs).
(Note: For tanks requiring higher operating pressures—up to 15 psi—engineers must shift to API 620, which covers large, low-pressure storage tanks, often used for liquefied gases like LNG.)
2. AWWA D100: Welded Carbon Steel Tanks for Water Storage
Published by the American Water Works Association, AWWA D100 is the definitive standard for welded steel tanks storing water.
Application: Municipal potable water, industrial process water, and fire protection reserves.
Pressure Limit: Strictly atmospheric pressure.
Design Focus: Prioritizes longevity, water quality preservation, and specific structural geometries (including standpipes and elevated reservoirs). It also heavily regulates the application of internal epoxy linings to prevent corrosion and maintain NSF/ANSI 61 drinking water compliance.
3. ASME Section VIII: Pressure Vessels
If a welded tank must operate at internal pressures exceeding 15 psi, it is no longer classified as a standard storage tank; it becomes a Pressure Vessel governed by ASME Section VIII, Division 1.
Application: Highly pressurized gases, anhydrous chemicals (like anhydrous $HF$ or ammonia), and intense thermal processing.
Design Focus: Requires substantially thicker steel, specialized geometry (often spherical or heavily domed cylinders), and the most rigorous, documented welding procedures in the industry (ASME Section IX).
Specification Summary Matrix
Governing Body | Standard | Primary Application | Max Design Pressure |
API | 650 | Oil, Fuel, Petrochemicals | 2.5 psi (Atmospheric) |
API | 620 | Liquefied Gases (LNG) | 15.0 psi (Low Pressure) |
AWWA | D100 | Water / Wastewater | Atmospheric |
ASME | Section VIII | High-Pressure Chemicals/Gases | > 15.0 psi (Pressure Vessel) |
Technical Specifications: Welding and Inspection
Specifying the tank code is only the beginning. The actual construction phase is governed by strict technical specifications regarding how the steel is joined and tested.
Welding Processes and the HAZ
To maintain the metallurgical integrity of the carbon or stainless steel, top-tier manufacturers like Center Enamel utilize precise, automated welding techniques.
Submerged Arc Welding (SAW) and Flux-Cored Arc Welding (FCAW) are heavily favored for long, continuous horizontal and vertical shell seams due to their deep penetration and high deposition rates.
Managing the Heat Affected Zone (HAZ): Welding fundamentally alters the microstructure of the steel near the joint. Automated systems maintain strict heat-input controls to prevent carbide precipitation (which causes brittleness) and preserve the steel's flexibility and corrosion resistance.
Non-Destructive Examination (NDE)
To certify a welded tank under API 650 or AWWA D100, the welds must be proven defect-free without destroying the tank. Standard NDE specifications include:
Radiographic Testing (RT): X-raying shell butt-welds to detect internal porosity, slag inclusions, or incomplete fusion.
Ultrasonic Testing (UT): Using high-frequency sound waves to verify weld thickness and integrity, particularly around heavy nozzle penetrations.
Vacuum Box Testing: Applying a soap solution and pulling a vacuum over the floor plate lap-welds to detect microscopic pinhole leaks.
Interactive Explorer: Material and Code Selector
Different industrial environments require different engineering approaches. Explore how stored media dictates the specification code and material:
Frequently Asked Questions (FAQ)
Q: Does API 650 cover stainless steel tanks?
A: Yes. While API 650 is most commonly associated with welded carbon steel tanks, the standard includes specific appendices (such as Appendix S) that cover the design, material requirements, and fabrication of austenitic stainless steel tanks (like 304 and 316L).
Q: Why do welded tanks require a corrosion allowance?
A: Even with advanced coatings, carbon steel is susceptible to long-term oxidation, especially in petrochemical environments containing sulfur or water. Engineers specify a "corrosion allowance" (often 1mm to 6mm)—an extra thickness of sacrificial steel added to the calculated structural thickness to ensure the tank remains safe as it slowly wears over its 30-to-50-year lifespan.
Q: What is the difference between a shop-welded tank and a field-erected welded tank?
A: Shop-welded tanks are completely fabricated and welded inside a controlled factory environment (often to API 12F or UL 142 standards) and shipped in one piece. They are strictly limited in size by transportation constraints (usually maxing out around 14 to 15 feet in diameter). Field-erected tanks (API 650 / AWWA D100) are shipped as individual rolled plates and welded together on the actual project site, allowing for massive capacities exceeding 100,000 cubic meters.
Q: Can Center Enamel build tanks to these specifications?
A: Yes. Center Enamel engineers and constructs high-capacity welded steel storage tanks fully compliant with API 650, API 620, and AWWA D100 standards. Operating under ISO 9001 and EN1090 certifications, we provide fully documented EPC solutions, including automated SAW welding, full NDE testing, and custom Fusion Bonded Epoxy (FBE) or specialized internal linings for the global industrial market.
