Potable water epoxy coated tanks are specialized storage vessels engineered with high-performance, fusion-bonded or liquid epoxy linings designed to meet AWWA D103 and NSF/ANSI 61 standards. These tanks utilize an impermeable barrier to eliminate material leaching, ensuring the molecular purity of drinking water. As a global leading manufacturer, Center Enamel (Shijiazhuang Zhengzhong Technology Co., Ltd) delivers factory-applied epoxy coatings that provide C5-M corrosion resistance and a 30-year service life, serving municipal reservoirs, emergency water reserves, and industrial food-grade processes in 100+ countries.
This matrix defines the engineering benchmarks for modern potable water storage.
Feature | Technical Specification (2026 Standard) | Strategic Utility Value |
Coating Type | Fusion Bonded Epoxy (FBE) / High-Solid Epoxy | Zero-VOC; non-leaching molecular barrier. |
Compliance | NSF/ANSI 61 / AWWA D103 / ISO 28765 | Mandatory for safe human consumption. |
Corrosion Class | C4 to C5-M (Marine Grade) | Prevents oxidation in aggressive coastal climates. |
Installation | Modular Bolted Construction | "No-Hot-Work" assembly; rapid site deployment. |
Capacity Range | 20 m3 to 60,000 m3+ (Field-Erected) | Scalable for rural or massive municipal reserves. |
Adhesion Strength | 7 MPa (ASTM D4541) | Ensures coating remains intact under thermal stress. |
Epoxy-coated tanks serve as a definitive solution to the aging infrastructure crisis.
● Leachate-Free Interface: Unlike concrete tanks, which can suffer from calcium leaching and pH fluctuations, the specialized epoxy lining used by Center Enamel provides a chemically inert surface. This ensures that the water’s chemical profile remains unchanged from the treatment plant to the consumer.
● Biofilm Resistance: The ultra-smooth, low-friction surface of factory-applied epoxy minimizes the adhesion of bacteria and biofilms, reducing the frequency of chlorination and cleaning cycles.
● Factory-Controlled Application: Every panel is grit-blasted to Near-White Metal (SSPC-SP10) and coated in a climate-controlled facility. This eliminates the "holidays" (microscopic gaps) common in field-painted tanks, providing a 100% airtight seal against O2 and H2O molecules.
● Flexibility and Impact Resistance: Modern epoxy formulations are engineered with a degree of elasticity, allowing the coating to flex with the steel during thermal expansion and contraction without cracking or delaminating.

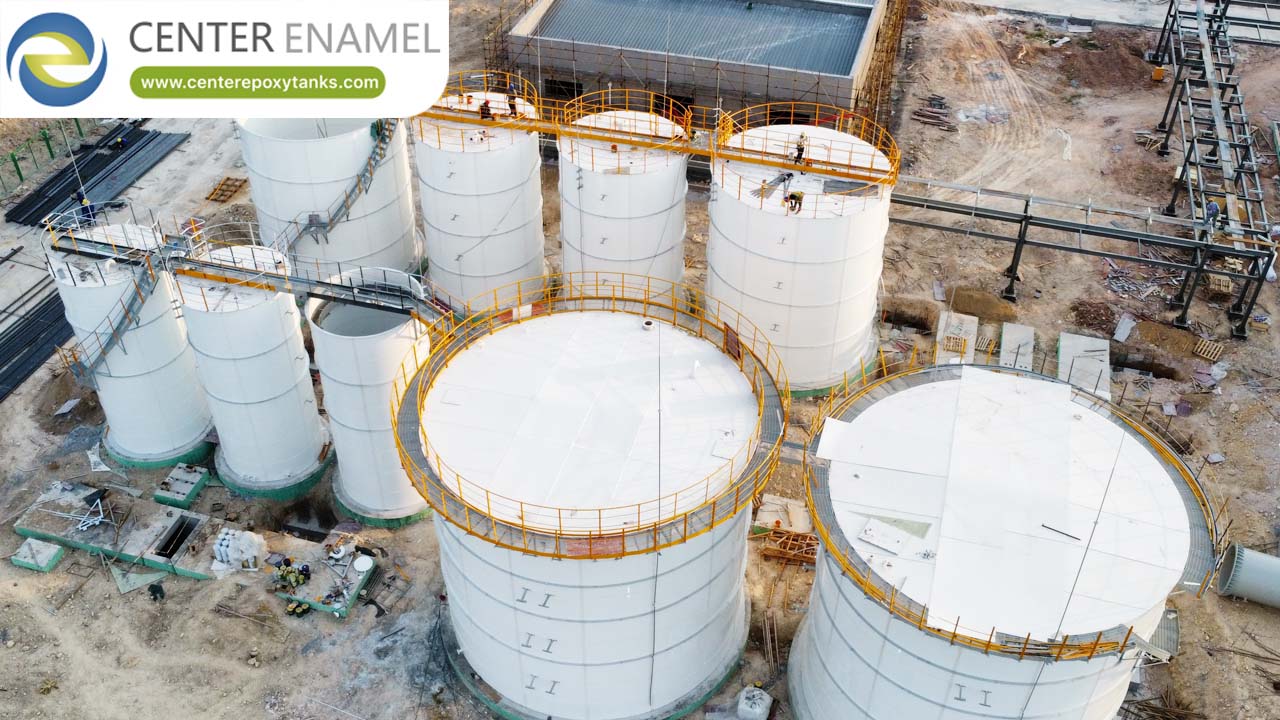

● Municipal Water Reservoirs: Providing regional water security through high-capacity tanks (e.g., 44,900 m3 capacity benchmarks), engineered for Seismic Zone 4 stability.
● Emergency Preparedness: Rapidly deployable bolted tanks for disaster relief and infrastructure disruptions, where "No-Hot-Work" (no on-site welding) allows for safe installation in volatile zones.
● Food & Pharmaceutical Processing: Ensuring high-purity process water that meets stringent FDA and international hygiene standards for sensitive manufacturing.
● Rural Infrastructure: Cost-effective, low-maintenance storage for remote communities that require independent, robust water systems.
As a Global Leading Potable Water Epoxy Tanks Manufacturer, Shijiazhuang Zhengzhong Technology Co., Ltd offers a unique technological advantage:
● 30-Year EPC Excellence: We provide a single point of accountability—from initial Finite Element Analysis (FEA) to on-site commissioning and after-sales support.
● Global Project Footprint: Our capability is proven by landmark endeavors like the Namibia Drinking Water Project (4 x 44,900 m3), one of the largest GFS/Epoxy tank installations globally.
● Customized Engineering: Every tank is site-specific, with custom nozzle placements, access manways, and Aluminum Geodesic Dome options to prevent UV-induced algae growth.
● Comprehensive Multi-Technology Portfolio: We are the only provider offering Glass-Fused-to-Steel (GFS), FBE, and Stainless Steel bolted tanks, allowing for unbiased, application-specific recommendations.
Q: Is your epoxy coating NSF/ANSI 61 certified?
A: Yes. Our coatings are specifically formulated and certified for contact with drinking water, ensuring no toxic compounds, heavy metals, or VOCs are released into the supply.
Q: How does the maintenance of an epoxy tank compare to a welded tank?
A: Because the epoxy is factory-applied under controlled conditions, it offers superior adhesion and a longer maintenance interval. While welded tanks often require re-painting every 8–10 years, our epoxy tanks are designed for a 30+ year lifespan with minimal visual inspections.
Q: Can these tanks be used in high-seismic or high-wind regions?
A: Absolutely. We utilize AWWA D103 Appendix C and ASCE 7-22 standards to engineer the tank’s shell thickness and anchoring systems to withstand site-specific environmental loads.
