Oil Field & Fuel Storage Tanks: Complete Buying Guide
Introduction to Industrial Petroleum Containment
Procuring the correct storage infrastructure is a high-stakes decision for upstream oil and gas operators, midstream pipeline terminal managers, and commercial energy providers. Whether outfitting an active drilling pad with production tanks or expanding a regional fuel distribution terminal, selecting the right containment vessel dictates operational safety, environmental compliance, and long-term capital efficiency.
Navigating the procurement process requires a clear understanding of international engineering codes, fluid volatility characteristics, fabrication standards, and site-specific operational parameters.
1. Key Evaluation Factors When Buying Storage Tanks
Before requesting engineering quotes or finalizing equipment specifications, buyers must evaluate several critical technical parameters:
Product Volatility and Vapor Pressure: The chemical composition of the stored fluid dictates the required roof structure. Highly volatile liquids like gasoline and light crude demand Internal or External Floating Roof Tanks (IFRs / EFRTs) to prevent volatile organic compound (VOC) emissions, whereas low-volatility fuel oils and diesel can use Fixed Cone Roof Tanks.
Volumetric Capacity and Footprint: Assess your daily throughput, surge buffering capacity, and available land layout. Modular shop-fabricated vessels suit smaller footprints, while massive multi-thousand-barrel terminal reserves require field-erected structures.
Compliance Standards and Certifications: Ensure that fabricators strictly adhere to established industry standards, such as API 650 for large welded steel tanks, API 12F for shop-welded production tanks, or UL 142 for commercial fuel storage.
2. Comparing Manufacturing Standards: API 650 vs. API 12F vs. UL 142
Understanding the distinctions between primary manufacturing standards prevents costly specification errors during the procurement phase:
API 650 (Welded Tanks for Oil Storage): The global benchmark for large-scale, field-erected vertical steel tanks operating at atmospheric or near-atmospheric pressures (up to 2.5 psig). Ideal for refineries, bulk fuel terminals, and large central tank batteries.
API 12F (Shop-Welded Production Tanks): Designed specifically for upstream oilfield service, these standardized vertical cylindrical tanks have capacities up to 500 barrels (bbl). Built off-site in controlled factory settings, they offer cost-effective, rapid deployment for wellhead liquid accumulation and phase separation.
UL 142 (Aboveground Tanks for Flammable Liquids): The primary standard for shop-fabricated horizontal or vertical tanks used for commercial fuel oil storage, emergency generator backup supplies, and fleet fueling operations.
Data Table: Oil Field & Fuel Storage Tank Procurement Matrix
Tank Classification | Governing Standard | Typical Capacity Range | Primary Application | Key Design Feature |
API 12F Production Tank | API 12F | 90 to 500 barrels (bbl) | Upstream wellheads, oilfield batteries | Shop-welded, standardized dimensions for rapid transport |
API 650 Terminal Tank | API 650 | 1,000 to 50,000+ barrels | Bulk petroleum terminals, refinery storage | Field-erected welded steel plates with tapered shell courses |
UL 142 Fuel Tank | UL 142 / ULC S601 | 250 to 30,000 gallons | Commercial fuel storage, emergency generators | Shop-fabricated, optional double-wall containment |

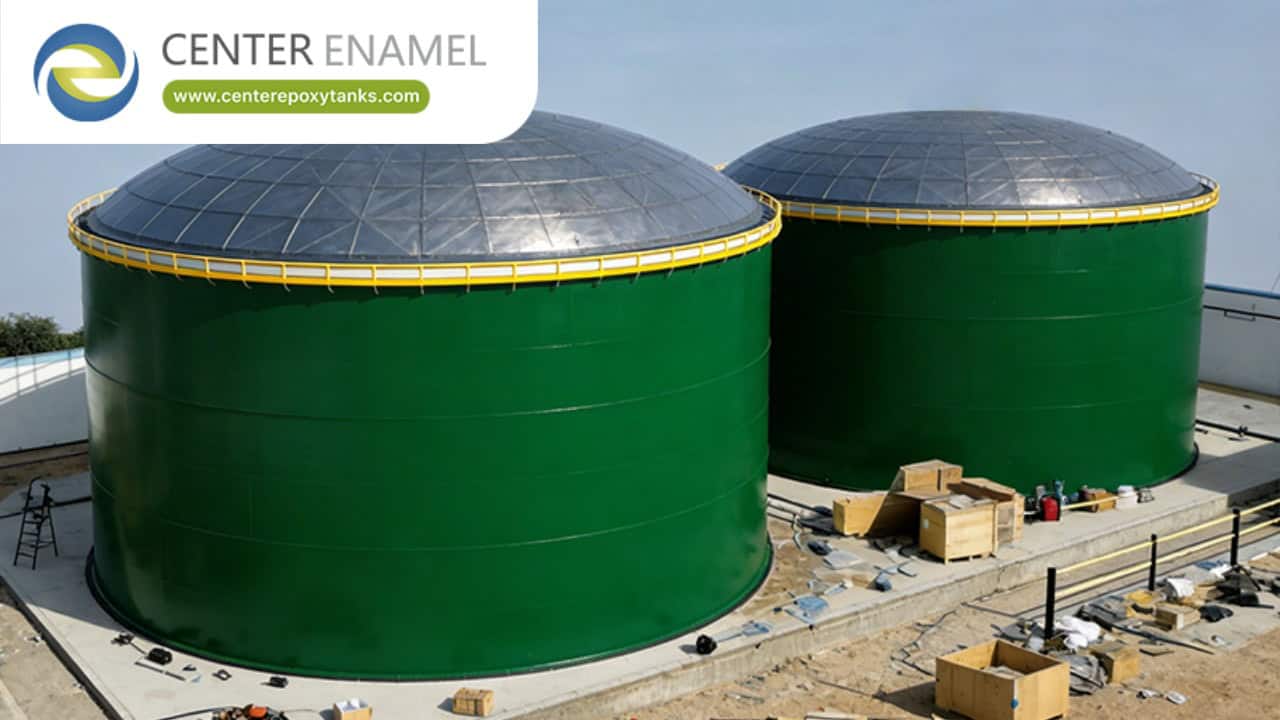

Bolted Modular Tank | AWWA D103 / API 12B | Variable scaling | Remote drilling water, frac fluid, municipal storage | Modular panel construction with internal gaskets |
3. Essential Safety, Venting, and Environmental Requirements
Procurement specifications must account for stringent environmental protection and safety mandates to protect against regulatory liabilities:
Secondary Containment: Environmental protection agencies mandate secondary barriers—such as double-wall construction, concrete dikes, or impermeable berms—capable of holding at least 110% of the primary tank volume to prevent spills.
Normal and Emergency Venting: Tanks maintaining a vapor space must be equipped with properly sized pressure-vacuum relief valves (PVRVs) and emergency breather hatches engineered per API 2000 standards to prevent structural implosion or over-pressurization.
Corrosion Mitigation: Specify interior epoxy linings and exterior protective coatings matched to the chemical aggressivity of the stored fluid. Integrating cathodic protection systems (sacrificial anodes or impressed current) significantly extends tank lifespan.
Frequently Asked Questions (FAQ)
Q: What is the main difference between API 650 and API 12F tanks when buying?
A: API 650 governs large-scale, field-erected welded steel tanks used in terminals and refineries with customizable dimensions, whereas API 12F covers smaller, standardized shop-welded production tanks up to 500 barrels tailored specifically for upstream oilfield wellheads.
Q: How do I choose between a fixed roof tank and a floating roof tank?
A: Choose a fixed cone roof tank for low-volatility fluids like diesel, heavy fuel oil, and water. Choose an internal or external floating roof tank for volatile products like gasoline and light crude oil to eliminate vapor headspace and suppress VOC emissions.
Q: What regulatory standards apply to commercial fuel oil storage tanks?
A: Commercial and industrial fuel tanks are typically governed by UL 142 for shop-fabricated aboveground vessels, alongside local fire codes like NFPA 30 and NFPA 31, which regulate venting, piping, and secondary containment.
Q: Why is secondary containment mandatory for petroleum storage tanks?
A: Secondary containment (such as a double-wall shell or an exterior containment dyke) ensures that any accidental leak, structural rupture, or overfill is completely captured, preventing hazardous soil and groundwater contamination.
