Oil and Gas Storage Tank Applications and Design Features
Throughout the global petroleum supply chain—from wellhead extraction to final refinery processing—reliable fluid containment is critical. Oil and gas storage tanks serve as the backbone of energy infrastructure, balancing supply fluctuations, providing operational buffers, and ensuring environmental safety.
Engineered to withstand massive hydrostatic loads, corrosive environments, and variable vapor pressures, these vessels are governed by strict international codes established by the American Petroleum Institute (API). Understanding their operational applications and mechanical design features is vital for safe facility design and compliance.
1. Key Applications Across the Oil and Gas Supply Chain
Storage tanks are deployed at distinct stages of petroleum exploration, transport, and refining, each serving specialized functional requirements:
Upstream Production and Wellheads: At extraction sites, shop-welded and modular tanks (such as API 12F or API 12B units) handle raw fluid accumulation straight from the well. They act as initial phase-separation vessels where basic sediment, water (BS&W), and entrained gases separate from crude oil via gravity.
Midstream Pipeline Terminals and Storage Farms: Massive field-erected tanks (API 650) buffer flow rates across long-distance transmission pipelines and maintain strategic regional energy reserves to safeguard against supply disruptions.
Downstream Refining and Petrochemical Plants: Refineries rely on a complex network of atmospheric and pressurized tanks to hold incoming crude oil feedstocks, intermediate hydrocarbon fractions (like naphtha and gas oil), and finished commercial fuels prior to market distribution.
2. Essential Structural and Design Features
Modern petroleum storage tanks are meticulously engineered systems comprising several critical mechanical and structural sub-assemblies:

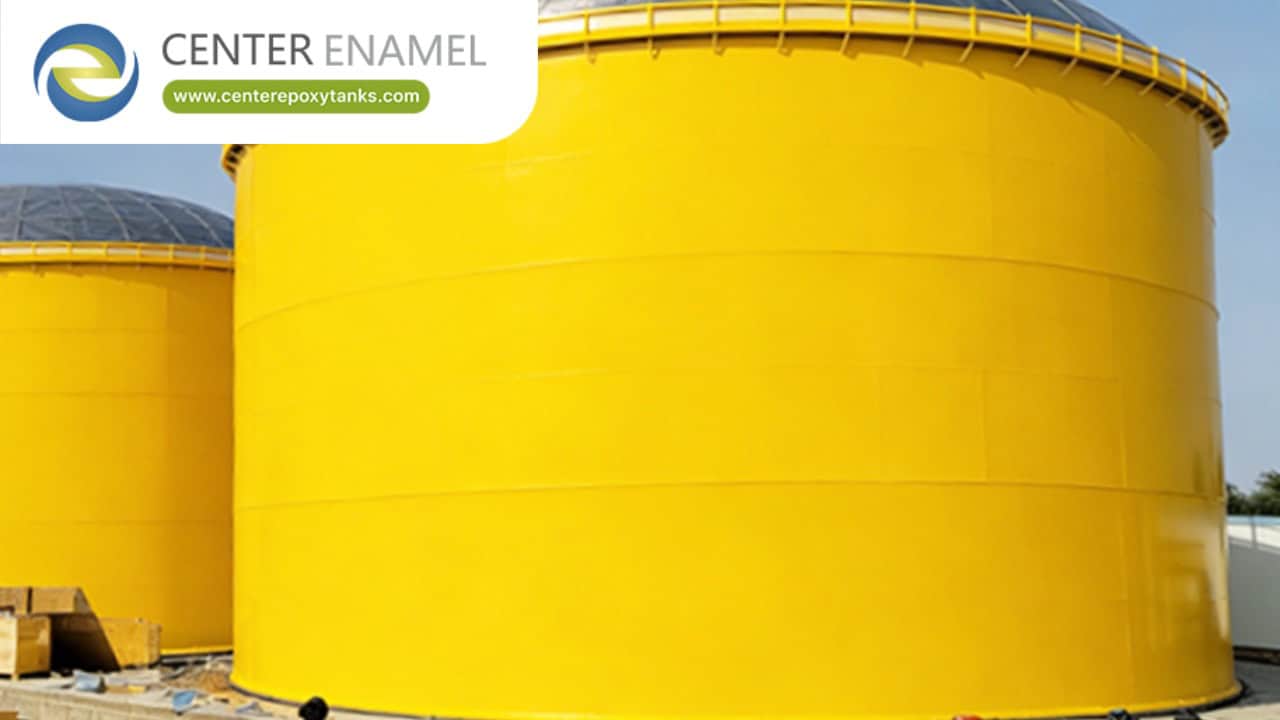

Shell Courses and Foundations: Vertical cylindrical shells are constructed from high-tensile steel plates whose thickness is mathematically calculated to resist increasing hydrostatic head pressure from bottom to top. These rest on compacted sand pads, asphalt rings, or concrete ringwalls.
Roof Configurations (Fixed vs. Floating):
Fixed Cone and Dome Roofs: Permanently attached to the shell, maintaining a vapor space (ullage) used primarily for low-volatility products like heavy crude, diesel, and water.
External and Internal Floating Roofs (EFRTs & IFRs): Move dynamically on top of the liquid surface to eliminate vapor headspace, drastically cutting volatile organic compound (VOC) emissions for volatile products like gasoline and light crude.
Vapor Venting and Pressure Relief: Fixed-roof tanks integrate pressure-vacuum relief valves (PVRVs) and emergency breather hatches to prevent shell rupture from thermal breathing or liquid transfer over-pressurization.
Ancillary Safety Systems: Features include thief hatches for sampling and gauging, internal heating coils for high-viscosity crude, cathodic protection against corrosion, and foam-based fire suppression systems.
Data Table: Oil and Gas Storage Tank Matrix
Supply Chain Sector | Tank Classification | Governing Standard | Primary Stored Media | Core Design Features |
Upstream | Shop-Welded Production Tank | API 12F / API 12B | Raw crude oil, produced water | Skid-mounted or vertical cylindrical; compact scale |
Midstream | Terminal Storage Tank | API 650 | Crude oil, diesel, fuel oil | Flat bottom, vertical cylindrical shell, floating or fixed roof |
Downstream | Refinery Process Vessel | API 650 / API 620 | Intermediate feeds, finished fuels | High-capacity, internal/external floating roofs, heating coils |
Specialized | Pressurized Sphere / Bullet | API 620 / ASME | LPG, propane, butane, NGLs | High-pressure curved geometries (up to 15 psig) |
Frequently Asked Questions (FAQ)
Q: What standards govern oil and gas storage tank design?
A: The primary industry benchmark is API 650 for welded steel atmospheric and low-pressure tanks (up to 2.5 psig), while API 620 governs large low-pressure storage up to 15 psig, and API 12F covers shop-welded production tanks.
Q: Why are floating roofs used in petroleum storage tanks?
A: Floating roofs rest directly on the liquid surface, eliminating the vapor pocket (ullage) inside the tank. This drastically minimizes volatile organic compound (VOC) emissions, conserves product value, and mitigates explosive vapor accumulation.
Q: What is the difference between upstream and downstream storage tanks?
A: Upstream tanks (like oilfield production tanks) are typically smaller vessels used for initial wellhead fluid separation and temporary holding. Downstream tanks are massive industrial assets located at refineries to manage multi-thousand-barrel inventories of refined fuels and intermediate feedstocks.
Q: How are tanks protected against over-pressurization?
A: Fixed-roof tanks utilize pressure-vacuum relief valves (PVRVs), emergency roof hatches, and breather vents designed to release excess internal pressure or allow air entry during liquid withdrawal, preventing structural implosion or rupture.
