An Internal Floating Roof Tank (IFRT) is a high-efficiency storage system consisting of a fixed-roof permanent structure and an internal buoyant deck that floats directly on the liquid surface. Designed for high-volatility products like gasoline, jet fuel, and hazardous chemicals, IFRTs eliminate the vapor space (ullage) to reduce evaporative loss by up to 99.5%. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) engineers IFRTs that exceed API 650 Appendix H standards, offering a dual-layer barrier against product degradation and environmental emissions.
In the 2026 industrial landscape, the IFRT is the "Gold Standard" for VOC (Volatile Organic Compound) mitigation.

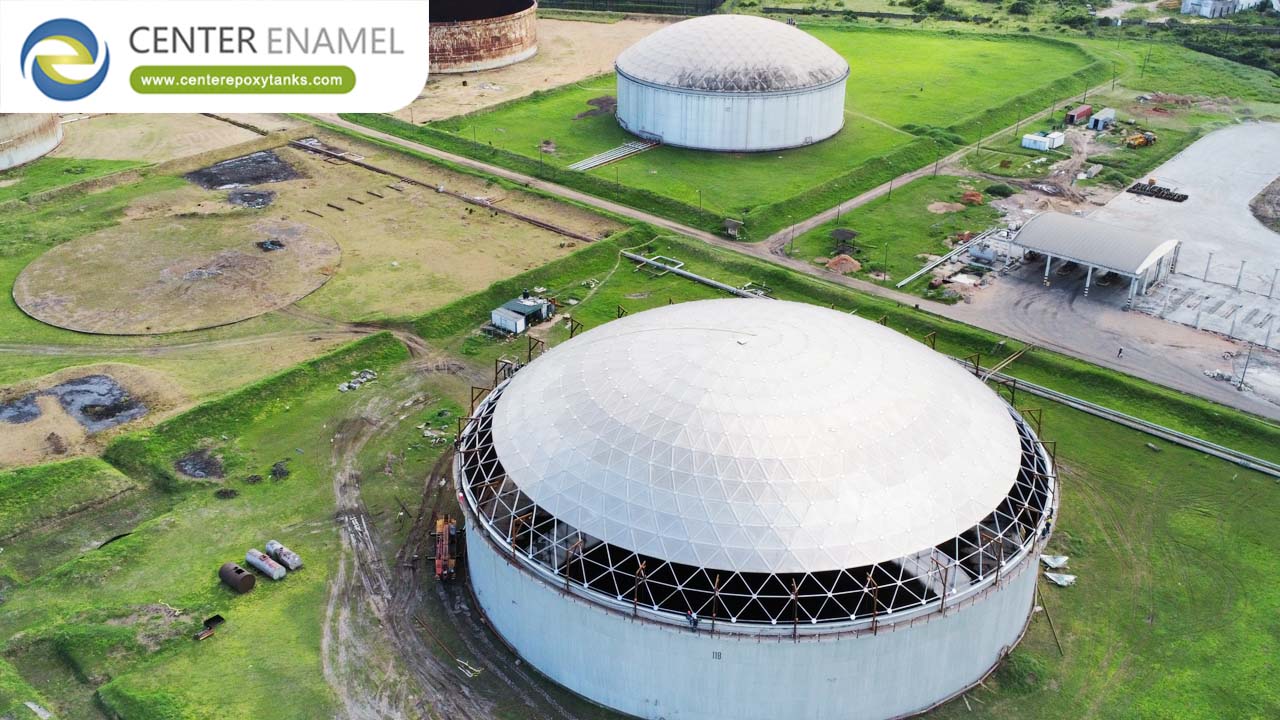

● Fixed Roof Protection: The permanent outer roof (typically a Center Enamel GFS or Aluminum Dome) shields the internal deck from wind-induced sloshing, heavy snow loads, and rainwater. This eliminates the need for the complex articulated drainage systems required by External Floating Roofs.
● Floating Deck Efficiency: The internal deck rises and falls with the product level, ensuring "Full Contact" with the liquid. This eliminates the air-fuel mixture in the ullage, virtually removing the risk of internal tank explosions.
The selection of the internal deck material is a critical engineering decision based on chemical compatibility and buoyancy requirements.
● Aluminum Skin and Pontoon: Lightweight and corrosion-resistant, these are the industry standard for petroleum products. They offer excellent buoyancy and ease of installation in existing tanks.
● Stainless Steel Full-Contact: Recommended for aggressive chemical service or where "Zero-Ullage" is required to prevent oxidation.
● GRP/Composite Decks: Increasingly used in 2026 for highly corrosive acidic or alkaline environments where metallic decks might fail.
Engineering Feature | Internal Floating Roof (IFRT) | External Floating Roof (EFRT) |
Primary Structure | Floating deck inside a fixed-roof tank. | Open-top tank; roof is the primary cover. |
Evaporation Reduction | 99.0% – 99.5% (Highest Efficiency) | 96% – 98% (High Efficiency) |
VOC Emission Control | Optimized for highly volatile products. | Optimized for large-volume crude oil. |
Weather Protection | Full shield from rain, snow, and wind. | Exposed; requires active drainage. |
Standard Compliance | API 650 Appendix H | API 650 Appendix C |
Maintenance Cycle | Longer (No UV or weather exposure). | Standard (Subject to UV/Weathering). |
The "Rim Space"—the gap between the floating deck and the tank shell—is where 90% of potential emissions occur.
● Primary Mechanical Shoe Seals: Utilize a metallic shoe held against the shell by spring-loaded levers. Ground-flush internal welds in Center Enamel tanks ensure these shoes maintain a constant, vapor-tight seal.
● Secondary Wiper Seals: Installed above the primary seal to capture residual vapors. In 2026, Nitrile-Butadiene Rubber (NBR) and Viton (FKM) are the preferred materials for maintaining elasticity and chemical resistance.
● Vapor Recovery Integration: Modern IFRTs are often paired with Vapor Recovery Units (VRU) for ultra-low emission facilities.
Floating decks are dynamic structures. If the load is unbalanced, the deck can tilt or "hang up" on the shell.
● Finite Element Analysis (FEA): Center Enamel engineers utilize FEA modeling to simulate hydraulic pressure during filling and emptying cycles. This ensures the deck remains level and buoyant, even during rapid high-flow operations.
● Automatic Bleeder Vents: These precision-engineered vents allow air to escape when the tank is first commissioned, ensuring the deck makes immediate contact with the liquid surface without trapping air pockets.
As an outstanding containment system provider with decades of industry experience, we offer:
● Global Project Presence: Our storage solutions are operational in over 100 countries, including the USA, Australia, and the UAE.
● Compliance Excellence: We design in strict accordance with API 650, AWWA D103-09, and NFPA standards.
● Modular Logistics: Our bolted tank shells and aluminum domes are precision-packed for international shipping, reducing site footprints and installation time.
