Innovative Double Membrane Gas Holders for Efficient and Sustainable Biogas Storage
As global industries accelerate their transition toward circular economies and net-zero carbon footprints, anaerobic digestion (AD) has become a cornerstone technology for converting organic waste into clean renewable energy. At the heart of any high-performance AD plant lies the gas management system. Innovative double membrane gas holders have transformed this space, offering an advanced, flexible, and sustainable solution for capturing, storing, and regulating biogas.
Unlike traditional, rigid steel or concrete storage tanks that suffer from fixed volumes and high susceptibility to biogenic corrosion, modern double-membrane gas holders utilize a sophisticated dual-layer textile structure. Acting as the resilient "lung" of a biogas facility, these systems optimize methane recovery, maintain constant delivery pressure, and ensure maximum operational safety across municipal wastewater treatment, agricultural waste management, and industrial food processing sectors.
The Core Architecture and Working Principle
The efficiency of an innovative double-membrane gas holder rests on its intelligent structural separation of containment and environmental protection:
The Inner Membrane (Gas Containment): Fabricated from specialized, low-permeability polymers, the inner layer forms a completely gas-tight chamber that rises and falls dynamically in response to biological gas production rates and downstream consumption. It is fully protected from ultraviolet (UV) radiation and direct weather exposure.
The Outer Membrane (Weather & Structural Shell): Acting as the external protective dome, this layer is crafted from high-tenacity polyester fabric coated with advanced PVDF (Polyvinylidene Fluoride) self-cleaning layers. It provides high tensile strength to withstand extreme wind shears and heavy snow loads.

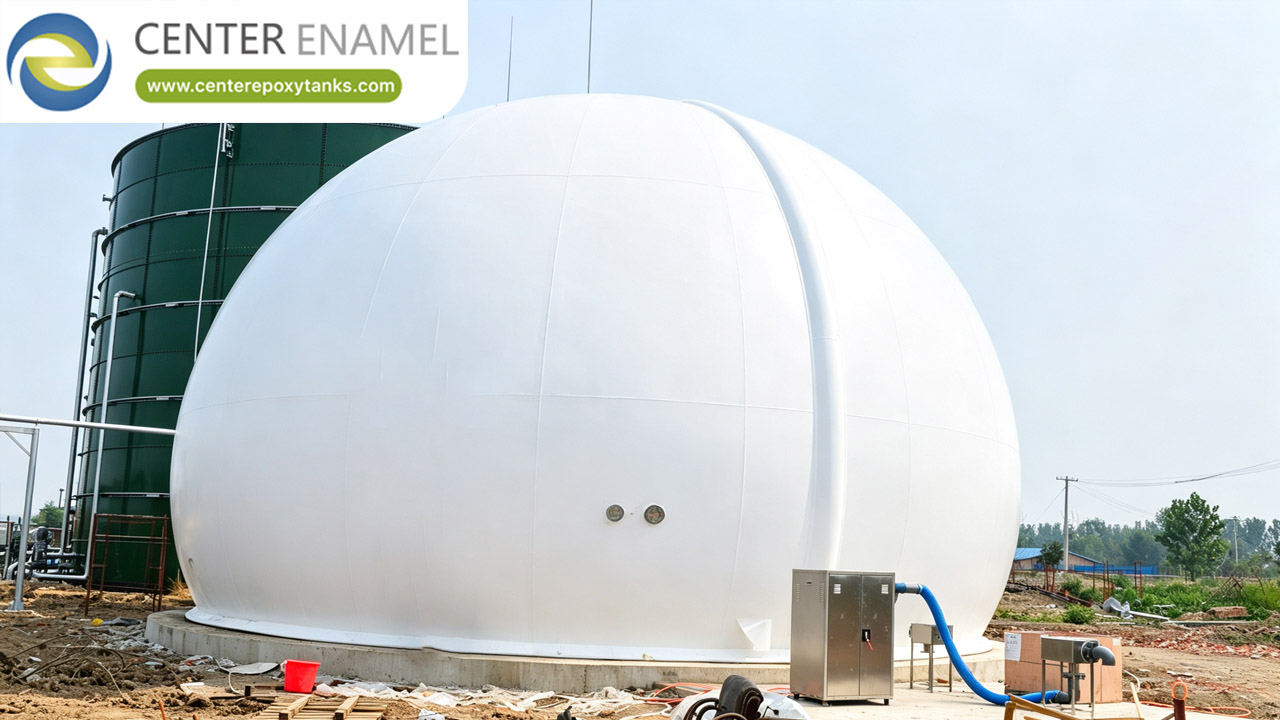

The Interstitial Air Support System: An explosion-proof (ATEX-certified) continuous blower injects ambient air into the sealed space between the inner and outer membranes. This maintains a constant positive pressure (typically 2 mbar to 20 mbar), forcing the inner membrane downward to deliver a steady stream of biogas to combined heat and power (CHP) engines or upgrading skids without expensive mechanical boosters.
Engineering Innovations Driving Sustainability and Efficiency
1. Advanced PVDF Surface Protection
Modern gas holders incorporate PVDF (Polyvinylidene Fluoride) topcoats on the outer membrane. This self-cleaning surface naturally sheds dust and organic residues with rainwater, preventing microbial growth and maintaining solar reflectivity. More importantly, it delivers exceptional resistance to UV degradation, extending the operational lifespan of the membrane system to 15–20 years.
2. Seamless Integration with GFS (Glass-Fused-to-Steel) Tanks
To achieve maximum plant synergy, top-mounted double membrane holders are precision-engineered to bolt directly onto the top chime of Glass-Fused-to-Steel (GFS) or fusion-bonded epoxy anaerobic digesters. The inert glass coating of the GFS tank paired with the chemical resilience of the inner membrane creates a unified, multi-decade asset that is 100% immune to hydrogen sulfide (H2S) attack and concrete spalling.
3. Climate Adaptation and Automated Pressure Logic
Equipped with smart sensor arrays and VFD-controlled blowers, innovative storage systems dynamically adjust internal air pressure during severe meteorological events. During heavy windstorms or high snow accumulation, the control matrix increases interstitial pressure to rigidify the dome, preventing mechanical fatigue and structural collapse.
Data Table: Innovative Double Membrane Gas Holders vs. Traditional Storage
Performance & Operational Metric | Innovative Double Membrane Gas Holder | Traditional Rigid Steel / Concrete Tank |
Storage Flexibility | Dynamic "variable lung" expansion (0%–100%) | Fixed volumetric capacity |
Corrosion Resistance | Superior: Inert to H2S, moisture, and organic acids | Vulnerable to biogenic sulfuric acid and rusting |
Installation & Commissioning | Rapid modular setup (1 to 2 weeks) | Extended civil construction (2 to 4 months) |
Capital & Lifecycle Expenditure | Highly cost-effective; low maintenance overhead | High material, labor, and periodic relining costs |

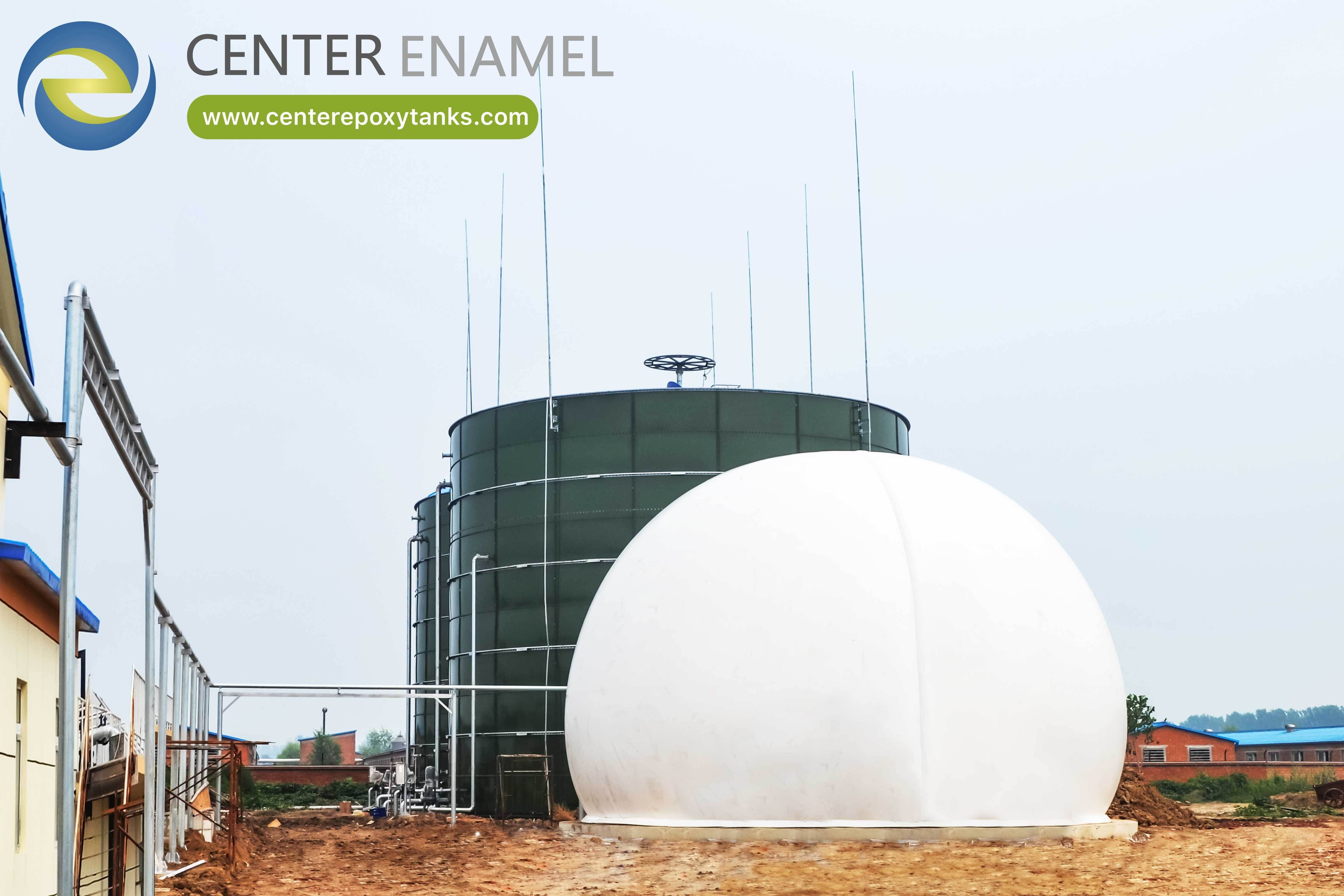

Footprint Optimization | Top-mounted or compact slab configurations | Requires extensive dedicated civil footprints |
Frequently Asked Questions (FAQ)
Q: How do innovative double membrane gas holders maintain a constant pressure for CHP engines?
A: A continuous-duty, explosion-proof air blower maintains a regulated positive pressure in the air space between the outer and inner membranes. This air cushion pushes down uniformly on the inner gas chamber, ensuring that biogas is fed into downstream pipelines and engines at a steady, reliable pressure without requiring secondary gas booster compressors.
Q: Are double membrane gas holders resistant to corrosive hydrogen sulfide (H2S)?
A: Yes. The inner gas containment membrane is fabricated from specialized low-permeability polymers engineered specifically to withstand aggressive biogas components, including high concentrations of hydrogen sulfide (H2S), carbon dioxide, and water vapor, without degrading.
Q: Can a double membrane gas holder be retrofitted onto existing anaerobic digester tanks?
A: Absolutely. Modular design principles allow these gas holders to be retrofitted onto existing concrete, epoxy-coated, or GFS tanks, provided the upper tank wall or rim structure is verified to support the mechanical clamping and tensile loads.
Q: What safety mechanisms prevent over-pressurization of the gas storage system?
A: Every certified gas holder is equipped with an integrated safety control matrix, including automated pressure sensors, mechanical hydraulic overpressure relief valves (water seals), and emergency flare integration to safely vent excess gas during unexpected production surges.
