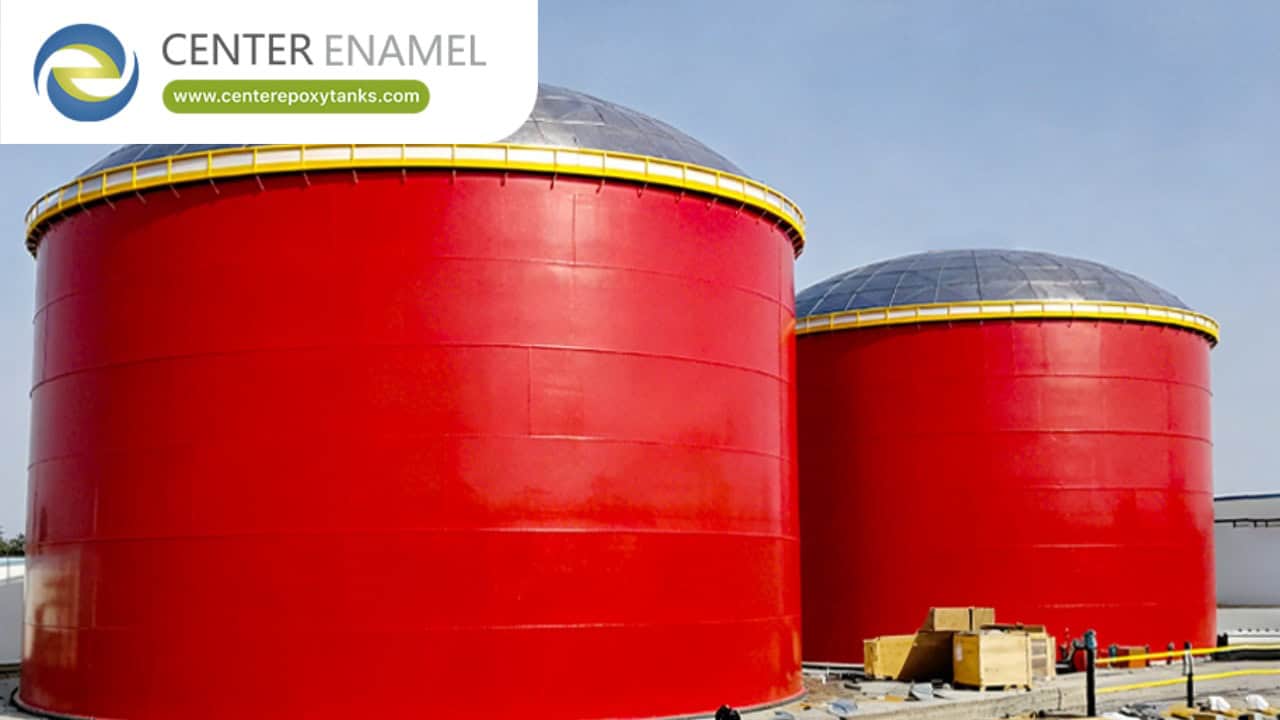

How to Design Petroleum Storage Tanks: A Professional Engineering Approach
Designing a petroleum storage tank is a highly regulated, multidisciplinary process. In the industrial sector, the API 650 standard serves as the global benchmark for welded, aboveground storage tanks (ASTs). A successful design must balance structural integrity, material compatibility, and rigorous safety compliance to ensure decades of reliable service.
Note: This article outlines the general engineering framework. All tank designs must be executed by licensed professional engineers and adhere to local jurisdiction codes, environmental regulations, and specific site requirements.
The 4-Step Engineering Design Process
Designing an API 650-compliant tank typically follows a systematic progression focused on shell, roof, bottom, and venting systems.
1. Shell Design
The shell is the primary containment wall. Engineers calculate the required thickness for each "course" (ring) of steel plates.
Hydrostatic Loading: Thickness is determined by the liquid's specific gravity and the height of the liquid column. The bottom course is subjected to the highest pressure and is therefore the thickest.
Calculation Methods: Standard methods include the One-Foot Method (1FM), which uses membrane theory, or the Variable-Design-Point Method (VDPM) for larger diameter tanks (typically >61m).
2. Roof Design
The roof prevents vapor loss and keeps out debris.
Fixed Roofs: Used for stable liquids; these require careful load-combination calculations, including snow and wind loads.
Floating Roofs: Essential for volatile products (e.g., gasoline/crude). The roof floats directly on the liquid, minimizing vapor space and VOC emissions. Engineering must account for pontoon buoyancy and mechanical rim seal integrity.
3. Bottom Design
The tank bottom rests on a prepared foundation.
Structural Integrity: Designs usually incorporate annular plates—a ring of thicker plates at the perimeter—to handle the localized stresses where the shell meets the bottom.
Drainage: Bottom plates are typically sloped slightly toward a central sump or external drain to facilitate water removal and cleaning.
4. Venting Design
Pressure management is critical to prevent structural failure.
API 2000 Compliance: Tanks must be equipped with venting systems that allow air to enter or escape during filling, emptying, and thermal "breathing" caused by ambient temperature changes. This prevents the tank from collapsing under vacuum or rupturing from overpressure.
Material Selection & Environmental Factors
Factor | Engineering Consideration |
Material | Carbon steel is the industry standard (API 650) for its balance of strength, weldability, and cost. |
Corrosion Allowance | A "sacrificial" extra thickness is added to the plates to compensate for internal and external oxidation over the tank's lifecycle. |
Wind & Seismic | Designs must be analyzed for local environmental loads to prevent overturning or buckling during extreme weather. |
Containment | Secondary containment (e.g., dikes, bunds, or double-walled designs) is mandatory to capture spills. |
Essential Safety & Regulatory Compliance
Design optimization is not just about containment; it is about risk mitigation.
Secondary Containment: Always design for 110% capacity of the largest tank in the facility to ensure spills are contained within the site boundaries.
Leak Detection: Modern designs integrate automated tank gauging and continuous monitoring wells to identify seepage long before it becomes an environmental liability.
Access & Maintenance: Manways, ladders, and sample ports must be positioned according to OSHA or local safety standards to allow for safe, ergonomic inspection and cleaning.
Frequently Asked Questions (FAQ)
What is the "One-Foot Method" in tank design?
The One-Foot Method is an API 650 calculation approach that assumes the shell thickness at any point is governed by the hydrostatic pressure one foot above that specific point. It is widely used for tanks up to 61 meters in diameter.
Why is a corrosion allowance added to tank thickness?
Corrosion allowance is an additional thickness of steel added to the calculated structural requirement. It acts as a sacrificial layer that ensures the tank remains structurally sound even as the steel surface degrades over its 20-to-30-year design life.
How do I decide between a fixed roof and a floating roof?
The decision is primarily driven by the True Vapor Pressure (TVP) of the stored liquid. Highly volatile liquids like gasoline require floating roofs to minimize vapor space and reduce emissions, whereas non-volatile liquids like heavy fuel oils are typically stored in fixed-roof tanks to reduce costs.
Do I need a professional engineer to design my storage tank?
Yes. Petroleum storage involves flammable and hazardous materials. Designs must be stamped by a professional engineer, undergo independent quality control (non-destructive testing of welds), and meet all local, state, and federal environmental regulations (such as SPCC plans in the U.S.).
