How to Choose the Right Internal Floating Roof for Your Storage Tank

Selecting the appropriate Internal Floating Roof (IFR) is one of the most critical decisions in modern storage tank engineering. Governed by API 650 Appendix H, an IFR floats directly on the liquid surface inside a fixed-roof tank to suppress volatile organic compound (VOC) emissions, safeguard product purity, and mitigate explosive vapor build-up.

However, because industrial storage demands vary drastically across the petrochemical, municipal water, and wastewater treatment sectors, a "one-size-fits-all" roof does not exist. Choosing the wrong deck type or seal material can lead to accelerated mechanical wear, chemical degradation, or regulatory non-compliance.

This technical guide provides a step-by-step framework to help engineers and facility operators select the ideal IFR for their specific containment needs.

Step 1: Evaluate Chemical Compatibility and the Stored Medium

The physical and chemical characteristics of your stored liquid dictate the foundational material of your floating roof.

● Light Hydrocarbons & Refined Products: For volatile products like gasoline, jet fuel, or light crude oil, aluminum or stainless steel configurations are preferred due to their excellent weight-to-strength ratios and standard hydrocarbon resistance.

● Aggressive Environments & Wastewater: If the tank holds corrosive industrial waste, chemical process water, or wastewater containing high concentrations of hydrogen sulfide (H2S), high-grade stainless steel (such as 304 or 316) is mandatory to prevent premature chemical pitting and structural failure.

Step 2: Choose Between Full-Contact and Non-Contact Decks

Floating roofs fall into two main categories based on how they interact with the liquid surface.

Non-Contact (Skin and Pontoon) IFRs

This design features a series of sealed structural pontoons that support a thin metallic deck framework slightly above the liquid level.

● Best Suited For: Standard budget-conscious petrochemical applications and large-diameter tanks with stable operating parameters.

● Pros: Highly cost-effective, lightweight, and easy to modularly assemble or retrofit into existing brownfield storage tanks.

● Cons: Leaves a small, enclosed vapor space between the liquid surface and the deck skin, making it slightly less efficient at absolute emission suppression than full-contact alternatives.

Full-Contact (Panel or Honeycomb) IFRs

Full-contact roofs feature flat aluminum panels or structural honeycomb sandwich blocks that rest entirely flush against the liquid surface, leaving no room for a vapor boundary layer.

● Best Suited For: Highly volatile chemicals, stringent zero-emission zones, and tanks subject to frequent filling and emptying cycles.

● Pros: Maximizes emission control efficiency by completely eliminating the headspace beneath the deck panels. It also removes the risk of localized vapor pockets collapsing or igniting.

● Cons: Carries a higher upfront material procurement cost and slightly higher structural weight compared to basic pontoon designs.

Step 3: Match the Roof Design to Your Tank Structure

The interior architecture of your host storage tank heavily influences your IFR selection.

● Column-Supported Fixed Roofs: If your storage tank utilizes traditional vertical steel support columns to hold up its fixed roof, your IFR must be custom-engineered with internal cutouts, sleeves, and specialized column seals. This increases installation complexity and maintenance requirements.

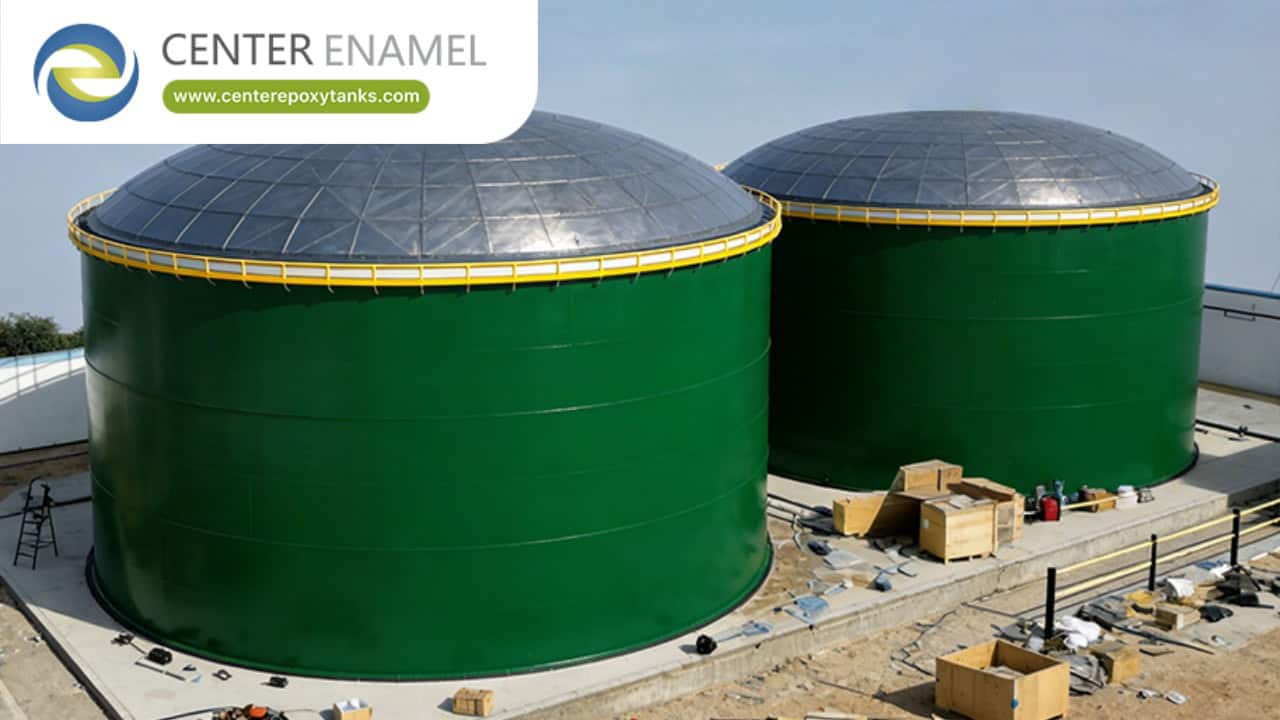

● Clear-Span Fixed Roofs: Pairing an IFR with a self-supporting fixed cover—such as an aluminum geodesic dome roof—completely eliminates internal vertical obstructions. Without column interference, the IFR can glide smoothly up and down the tank shell, reducing mechanical wear on peripheral rim seals and maximizing usable storage volume.

Selection Matrix: IFR Technical Evaluation

Step 4: Engineer the Peripheral Rim Seal System

An IFR is only as efficient as its perimeter seal. The rim seal closes the crucial expansion gap between the floating deck edge and the interior tank shell wall.

● Mechanical Shoe Seals: Constructed from a metallic shoe held against the tank wall by spring-loaded scissor mechanisms. Highly durable and ideal for rougher, welded steel tank walls.

● Wiper Seals: Composed of flexible polyurethane or elastomeric blades that wipe along the tank shell. Excellent for smoother interior shells, such as stainless steel or bolted tank configurations.

● Liquid-Filled Resilient Seals: Filled with chemical-resistant fluids or polyurethane foam cores to provide continuous, flexible surface contact. Ideal for managing minor shell imperfections or out-of-round tank walls.

Designing for the Long-Term Lifecycle

Choosing the right internal floating roof requires balancing your immediate capital expenditure with your long-term operational expenditures. By prioritizing chemical compatibility, matching your deck style to local emission mandates, and eliminating internal structural obstructions, you can build a secure storage containment ecosystem designed for multi-decade performance.

As a global leader in engineered containment solutions since 2008, Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) specializes in manufacturing and delivering custom, API 650-compliant industrial storage systems integrated with advanced tank and roofing options across more than 100 countries.

Are you ready to optimize the environmental compliance and product security of your storage facility? Contact Center Enamel’s specialized engineering team today to receive a tailored structural evaluation and IFR specification review.
