Critical Design Considerations for Internal Floating Roofs (IFR)

Engineering an Internal Floating Roof (IFR) requires balancing complex material science, fluid dynamics, and strict regulatory standards. Governed globally by API 650 Appendix H, an IFR must operate passively for decades within a sealed environment, adapting smoothly to volatile liquid levels while suppressing hazardous vapor emissions.

A poorly designed floating roof can lead to mechanical binding, compromised seals, buoyancy failures, or localized chemical corrosion. For engineering procurement contractors (EPCs) and facility operators, understanding key structural parameters during the front-end engineering design (FEED) phase is essential for long-term operational integrity.

As an international provider of industrial containment systems since 2008, Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) delivers engineered tank and roofing solutions across more than 100 countries. This guide breaks down the essential design considerations for a reliable, code-compliant IFR system.

1. Buoyancy and Structural Load Regulations

An IFR must maintain reliable buoyancy under all operating configurations. API 650 Appendix H establishes strict safety factors to prevent the deck from sinking during turbulent filling cycles or localized structural breaches.

● Flotation Reserve Requirements: The design must provide enough buoyancy to support at least twice (2.0x) the dead weight of the entire roof structure, including seals, hardware, and any attached accessories.

● Puncture Contingency: The buoyancy calculation must account for potential localized failures. The roof must be engineered to remain afloat even if any two adjacent pontoon compartments (in a non-contact design) or outer buoyancy chambers are completely punctured and flooded with the stored product.

● Concentrated Live Loads: The deck must be structurally rated to support maintenance personnel. API 650 specifies that the roof must support a concentrated load of at least 2220 N (500 lbf) over a small footprint without sustaining permanent deformation or destabilizing the deck's level.

2. Full-Contact vs. Non-Contact Structural Configurations

Choosing the right deck style changes how the tank handles vapor suppression, weight distribution, and fire suppression protocols.

● Non-Contact (Skin and Pontoon) Systems: These roofs utilize sealed tubular pontoons that elevate the primary deck skin slightly above the liquid level. They are lightweight, highly cost-effective, and ideal for retrofitting existing tanks. However, they leave a minor vapor headspace beneath the deck skin. In the event of a fire, safety protocols often require applying firefighting foam across the entire liquid surface area.

● Full-Contact (Panel/Honeycomb) Systems: These designs rest flush against the liquid surface, completely eliminating the under-deck vapor space. This configuration provides maximum emission control efficiency. Additionally, because the liquid surface is completely sealed, firefighting foam systems only need to be engineered to protect the perimeter rim seal area, significantly reducing foam chemical consumption during emergency situations.

3. Metallurgical Selection and Corrosive Headspaces

The chemical properties of both the stored liquid phase and the vapor headspace dictate the material specifications of the floating deck.

● Aluminum Alloys (6061-T6 / 6005A-T6): Due to its high strength-to-weight ratio, ease of modular prefabrication, and natural atmospheric corrosion resistance, marine-grade aluminum is the industry choice for standard hydrocarbons and refined fuels. It requires no specialized paint or protective coatings.

● Stainless Steel (Grade 304 / 316): For highly aggressive storage mediums—such as industrial wastewater, sour crude containing high hydrogen sulfide (H2S) concentrations, or corrosive chemical feedstocks—high-grade stainless steel is required. It prevents accelerated chemical pitting and preserves the structural integrity of the lattice framework.

● Galvanic Isolation: When installing an aluminum or stainless steel IFR inside a carbon steel tank shell, the design must include absolute dielectric isolation (using Teflon or EPDM isolation washers and gaskets) anywhere dissimilar metals interface, preventing destructive galvanic corrosion.

Technical Design Parameter Matrix

4. Perimeter Rim Seal and Shell Tolerance Engineering

An IFR is only as efficient as its perimeter sealing system. Because tank shells are rarely perfectly cylindrical, the seal must adapt dynamically to out-of-round tolerances.

● Rim Gap Allowance: The seal must span the mechanical expansion gap between the floating deck edge and the tank interior wall (typically ranging from 100 mm to 200 mm) while maintaining continuous radial pressure.

● Dual-Seal Layouts: To maximize emission suppression, specify a primary seal (such as a mechanical shoe or liquid-filled resilient log) combined with a secondary wiper seal. This dual-barrier layout minimizes evaporative losses caused by minor shell imperfections or weld seams.

● Elastomer Compatibility: Ensure the seal polymers (Viton, Nitrile, Neoprene, or Polyurethane) are rated for continuous immersion in the stored chemical matrix and can handle local ambient temperature fluctuations.

5. Obstruction and Accessory Management

A successful IFR design must cleanly integrate internal tank accessories without creating mechanical binding points.

● Column Interfaces: If the tank has a traditional fixed roof supported by internal vertical columns, the IFR must be engineered with custom vertical column sleeves equipped with flexible wipers.

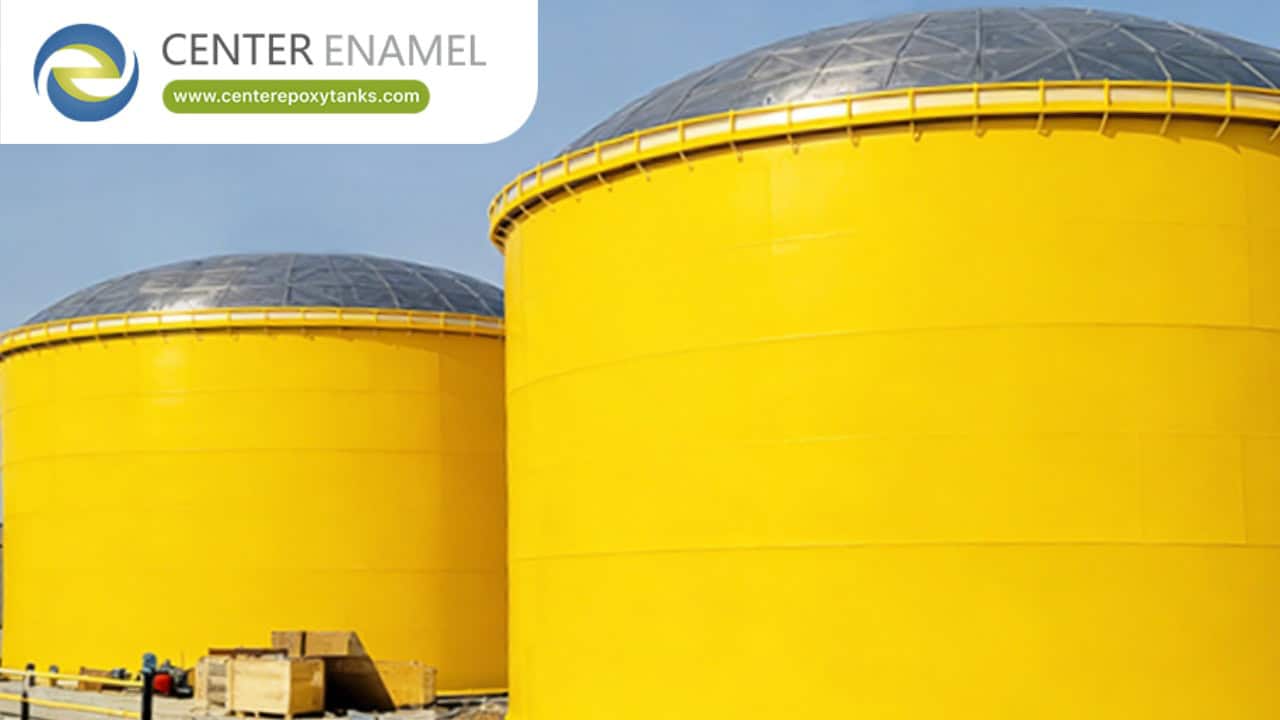

● Clear-Span Optimization: Pairing the IFR with a column-free, clear-span Aluminum Geodesic Dome Roof simplifies the design process. Eliminating internal support columns removes geometric obstructions, speeds up the modular IFR assembly timeline, and prevents floating rim seal wear.

● Anti-Rotation Systems & Support Legs: The design must include anti-rotation guide cables or poles to stop the roof from spinning under fluid turbulence. Furthermore, adjustable support legs must be configured for two operational settings: a "low-leg" position for normal low-level operations to maximize tank capacity, and a "high-leg" position to provide safe clearance for maintenance crews entering the tank floor.

Fit-for-Service Engineering

Designing an internal floating roof requires shifting the focus from a basic components catalog to site-specific, fit-for-service engineering. By carefully evaluating chemical compatibility, configuring the necessary safety buoyancy factors, selecting efficient full-contact or non-contact decks, and eliminating internal structural columns, operators can secure reliable, safe, and code-compliant storage infrastructure for decades.

Center Enamel combines automated factory manufacturing with meticulous engineering to design fully integrated tank and roofing systems tailored to your site's specific environmental parameters.
