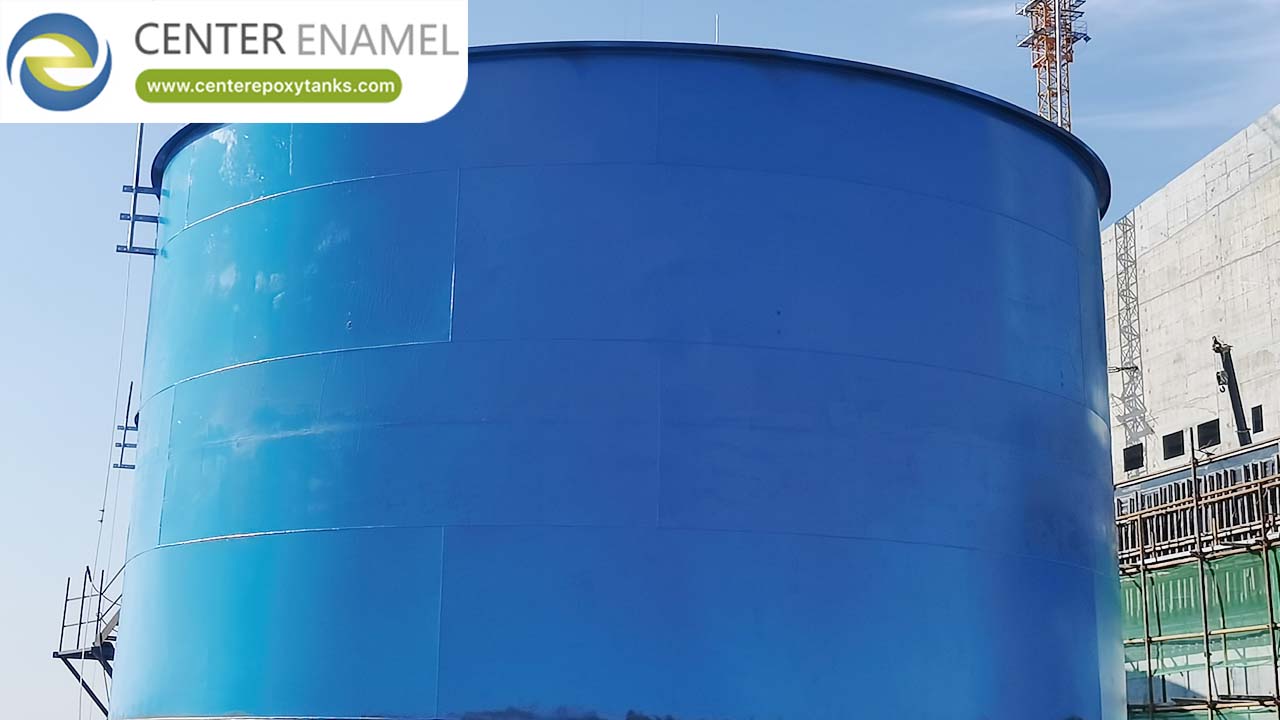

In 2026, the global storage tank market is defined by a demand for extreme durability and long-term structural integrity. While bolted tanks offer rapid deployment, welded steel tanks remain a choice for massive, site-specific permanent structures where a monolithic steel shell is required.
However, the risk with welded tanks lies in the field execution. Choosing the wrong supplier can lead to seam failures, localized corrosion, and massive repair costs. Here is the framework for identifying a tier-one welded steel tank partner.
The integrity of a welded tank is only as good as the welder on-site. In 2026, manual welding is being supplemented by automated technology.
● API 650 & AWS Standards: A reliable supplier must strictly adhere to API 650 (Welded Tanks for Oil Storage) or AWWA D100 (Welded Carbon Steel Water Tanks). Ask for their Welding Procedure Specifications (WPS).
● Automatic Girth Welding: Top-tier suppliers utilize automatic girth welders for horizontal seams. This ensures uniform penetration and reduces the human error associated with long-duration manual welding.
● X-Ray & NDT Testing: Demand 100% Non-Destructive Testing (NDT) on critical seams. A reliable partner will provide radiographic (X-ray) or ultrasonic testing reports for all T-joints and vertical welds.
The biggest threat to a welded tank is not the steel, but the corrosion that starts at the weld seams.
● Surface Profile: Reliable suppliers insist on SSPC-SP10 (Near-White Metal Blast) before applying any coating. Without a proper surface profile, even the most expensive epoxy will delaminate.
● Weld Bead Smoothing: Ensure the supplier grinds weld spatter and smooths sharp edges before coating. In 2026, "stripe coating" (applying an extra layer of primer to welds and edges) is a mandatory sign of a quality-focused supplier.
● Internal Linings: If the tank is for wastewater or chemicals, verify they use high-build, solvent-free epoxies that can bridge the microscopic irregularities of a field-welded seam.
Field-welding is a high-risk activity involving hot work and confined spaces.
● Safety Certifications: Look for ISO 45001 (Occupational Health and Safety). A supplier with a high "Total Recordable Incident Rate" (TRIR) is a liability for your project.
● Environmental Management: Ensure they are ISO 14001 compliant, especially regarding the containment of abrasive blasting media and paint overspray on-site.
In 2026, your supplier should be a technical extension of your team.
● 3D Modeling & FEA: Before the first plate is cut, a reliable supplier provides full Finite Element Analysis (FEA) to simulate stress points, wind loads (up to 60 m/s), and seismic performance.
● EPC Capability: Do they offer Engineering, Procurement, and Construction (EPC) support? A single point of responsibility for foundation design, fabrication, and field assembly significantly reduces project risk.
The most significant difference in a 2026 project environment is the timeline.
● Concrete Tanks: These are "monolithic" structures built on-site. They require extensive formwork, rebar tying, and long curing periods (often 28 days for full strength) that are highly sensitive to weather. Total construction time is typically 4–6 months.
●
● Welded Steel Tanks: These are "semi-modular." Plates are factory-cut and then field-welded. While faster than concrete, they still require significant on-site "hot work" (welding) and field-applied coatings. Total construction time is typically 2–3 months.
In 2026, the chemistry of stored media—particularly in wastewater and industrial sectors—has become more aggressive.
● Concrete: Naturally porous. Over time, liquids can penetrate the surface, leading to "rebar rot" (internal corrosion). For aggressive liquids (pH < 5), concrete must have an internal liner (Epoxy or HDPE), which adds cost and a point of failure.
● Welded Steel: Vulnerable to external rust and internal corrosion at the weld seams. Because the coating is applied in the field (often in dusty or humid conditions), the bond is never as perfect as a factory-applied finish. However, steel is impermeable and does not "seep" like concrete.
●
With increasing climate volatility, the "ductility" of a tank is a critical safety factor.
● Concrete: Brittle. Under seismic stress or significant ground settling, concrete is prone to cracking. Once a concrete tank develops a structural crack, the leak is difficult and expensive to remediate.
●
● Welded Steel: Highly ductile. Steel tanks can flex slightly under seismic loads or high wind speeds (up to 60 m/s) without catastrophic failure. If a weld fails, it can be ground out and re-welded relatively easily.
Feature | Concrete Tanks | Welded Steel Tanks |
Initial Cost (CAPEX) | Generally Higher | Moderate |
Maintenance | High (Crack repair/Liner checks) | High (Periodic sandblasting/Painting) |
Seismic Resilience | Low (Brittle) | High (Ductile) |
Leak Detection | Difficult | Easier (Visual) |
Expansion/Relocation | Impossible | Impossible |
Sustainability | High Carbon (Cement production) | Recyclable (Steel scrap value) |
