Fusion Bonded Epoxy Tank Anti-Leakage Technology: Structure & Installation Guide

Unlike field-welded storage vessels that achieve liquid containment through a continuous weld bead, Fusion Bonded Epoxy (FBE) tanks are modular, bolted structures. Achieving a 100% leak-proof rating requires an engineered, multi-layered anti-leakage system. This technology relies on a combination of precision-engineered panel lap joints, high-performance elastomeric sealants, and specialized torque-controlled fasteners. Understanding the structural mechanics of these joints and enforcing strict quality control during installation is the only way to guarantee zero-leak integrity over a 30+ year lifecycle.

1. The Anatomy of FBE Tank Anti-Leakage Structures

The anti-leakage system of an FBE bolted tank is built on redundant sealing layers distributed across three vulnerable zones: the panel seams, the fastener penetrations, and the foundation interface.

A. The Precision Lap Joint Geometry

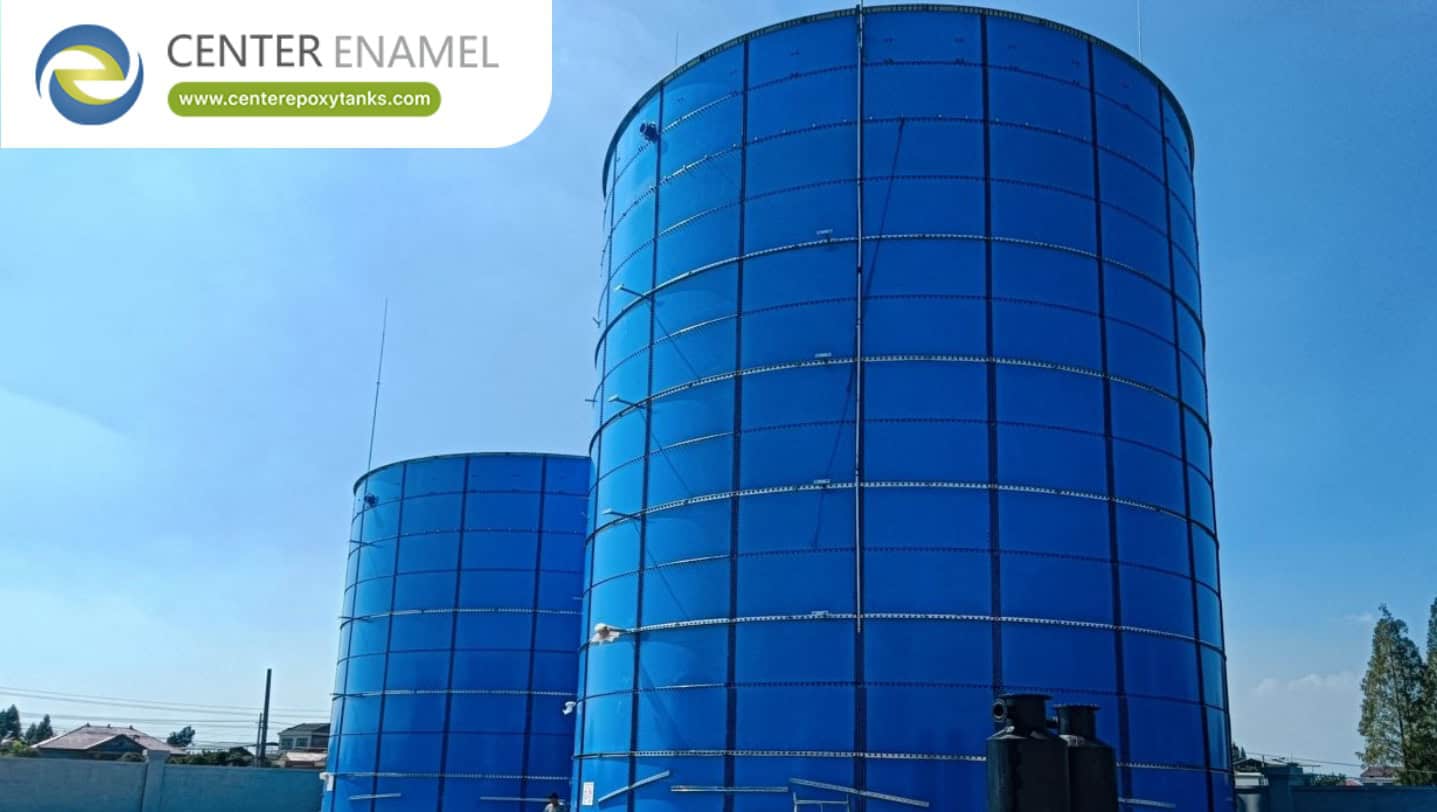

FBE tank shells are constructed by overlapping modular steel panels both horizontally and vertically.

● Double-Row Bolting: High-pressure zones at the bottom of the tank utilize a double-row staggered bolt pattern to evenly distribute the hydrostatic load across the seam, preventing the plates from bowing or flexing away from the sealant line.

● Strip Shims: Slotted steel shims are placed at multi-panel intersections (three-ply joints) to eliminate gaps caused by overlapping metal thicknesses, ensuring a uniform surface for the sealant to compress against.

B. High-Performance Elastomeric Sealants

The primary barrier against liquid escape is a specialized, single-component polyurethane mastic or silicone-based sealant applied between the overlapping plates.

● Chemical Inertness: The sealant remains permanently flexible, allowing it to absorb structural vibrations, thermal expansion, and seismic sloshing without cracking or debonding from the epoxy coating.

● Cohesive Bonding: It forms a high-strength chemical bond directly with the factory-applied epoxy surface, resisting hydrodynamic pressures from within the tank.

C. Fastener Sealing (The EPDM Washer Assembly)

Every bolt hole is a potential leak path. To isolate these penetrations:

● Pre-Assembled Washers: Heavy-duty bolts are fitted with a dual-layer washer consisting of a steel backing piece and a thick EPDM (Ethylene Propylene Diene Monomer) synthetic rubber gasket.

● Radial Compression: When torqued, the EPDM washer is squeezed into the bolt hole, creating a tight radial plug that completely seals the gap between the bolt shank and the steel panel.

2. Anti-Leakage Component Matrix

Each component plays an isolated, critical role in maintaining the watertight envelope of the tank:

3. Critical Installation Points to Guarantee Zero Leaks

The best anti-leakage design will fail if field execution is sub-standard. Crew leads must strictly enforce the following four installation protocols:

Step 1: Pre-Sealing Surface Sanitation

Absolute Cleanliness Rule: Before applying a single bead of sealant, all overlapping panel margins must be completely free of moisture, dust, oil, or chemical residue. Use manufacturer-approved solvent wipes (such as isopropyl alcohol) to clean the FBE surface. Any debris trapped in the sealant line will create a micro-channel for water to bypass the seal.

Step 2: Continuous Sealant Bead Geometry

● Bead Sizing: Sealant must be applied using an automatic or pneumatic caulking gun to maintain a continuous, uninterrupted bead of a specific diameter (typically 6mm to 8mm).

● The "Snake" Pattern: The bead must weave seamlessly between and around the bolt holes, ensuring that when the panels are clamped together, the mastic displaces evenly across both the inner and outer margins of the lap joint.

Step 3: Strict Torque Sequencing

Bolts must never be tightened at random or cranked down to maximum torque on the first pass. Doing so causes uneven squeeze-out, leaving dry spots in adjacent sections.

● Pass 1 (Snug Tight): Tighten bolts to roughly 30% of target torque along the entire seam to stabilize the plates.

● Pass 2 (Final Torque): Apply the full engineered torque specification using calibrated clicker or digital torque wrenches, working outward from the center of the panel toward the edges.

Step 4: Base Anchor Slot Packing

The connection between the first ring of steel panels (the starter ring) and the concrete foundation is the most hydrostatically stressed joint in the system.

● Ensure the embedded starter ring slot is clean and bone-dry.

● Pour or inject high-strength, non-shrink elastomeric grout completely around the channel perimeter.

● Tool the final exterior sealant bead at a 45-degree angle to shed rainwater away from the foundation seam.

4. Post-Assembly Integrity Verification

Before commissioning, the anti-leakage system must be verified via two distinct quality assurance phases:

1. Visual Squeeze-Out Inspection: A continuous line of compressed sealant must be visible along the entire length of every internal and external panel seam. This uniform "squeeze-out" confirms that an adequate volume of sealant was applied and properly compressed.

2. Hydrostatic Testing: The definitive proof of performance. The tank is slowly filled with water at a controlled rate (e.g., 1 to 2 meters of depth per day). Inspectors continuously walk the perimeter, checking all panel laps, bolt patterns, and nozzle connections for any signs of weeping or moisture accumulation before signing off on the structure.
