Fixed Roof Tanks vs. Floating Roof Tanks: Comprehensive Engineering Comparison
In the design, engineering, and operation of industrial bulk liquid terminals, selecting the correct tank architecture is critical for safety, environmental compliance, and capital efficiency. The fundamental distinction between industrial storage vessels lies in how they manage the headspace above the stored liquid.
Fixed roof tanks feature a permanently attached roof structure welded or bolted to the tank shell, leaving a large vapor space (ullage) between the liquid surface and the roof. In contrast, floating roof tanks utilize a movable deck that rests directly on the liquid surface, rising and falling dynamically with inventory levels to eliminate this vapor space entirely.
1. Fixed Roof Tanks: Design, Operation, and Applications
A fixed roof tank is the most common and cost-effective storage vessel used across industrial sectors. The roof is typically conical or domed, secured permanently to the top shell of the cylindrical tank.
·
Vapor Space Management: Because the roof is static, a large air pocket (ullage) exists above the liquid. As ambient temperatures fluctuate or tanks are filled and emptied, this vapor space expands and contracts, driving breathing and working losses.
·
·
Primary Applications: Ideal for storing low-volatility liquids, heavy fuel oils, lubricants, industrial wastewater, chemicals with low vapor pressure, and non-hazardous products like water or dry bulk aggregates.
·
·
Structural Advantage: Simpler civil construction, lower initial capital expenditure, and complete protection against weather elements entering the product stream.
·
2. Floating Roof Tanks: Design, Operation, and Applications

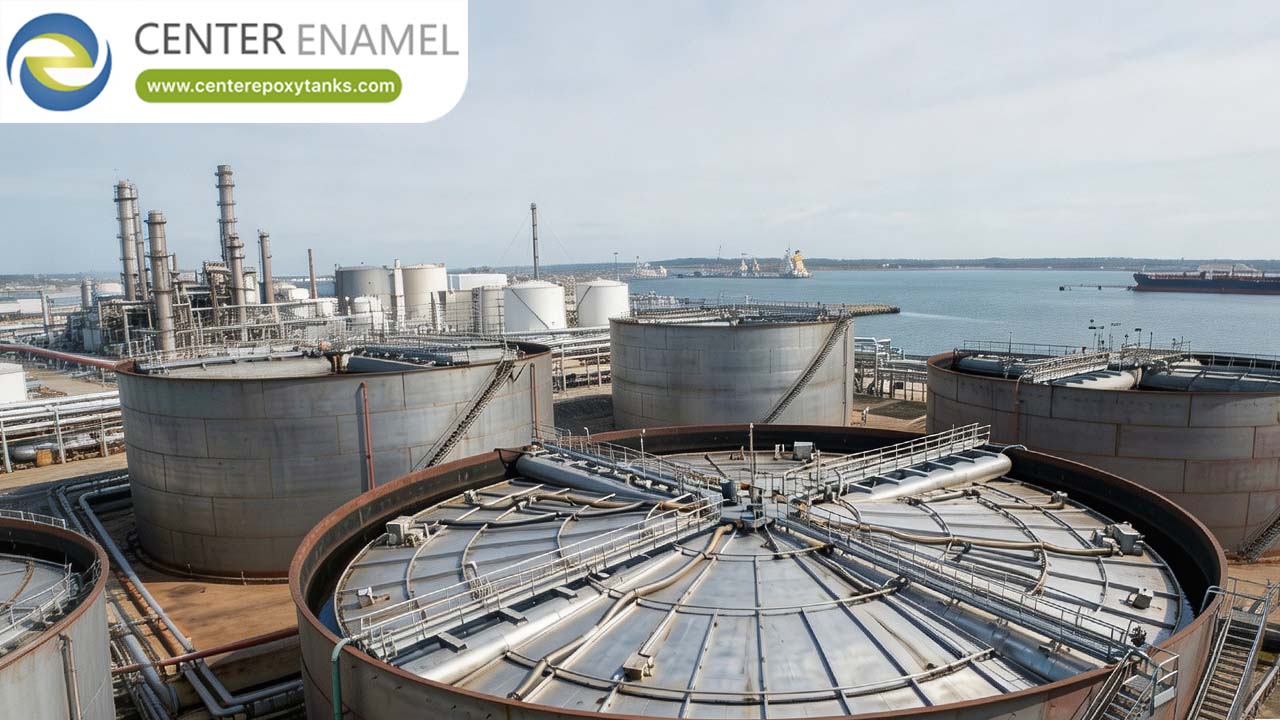

A floating roof tank is engineered specifically to contain volatile organic liquids by eliminating the internal vapor space. The roof floats directly on the liquid product, utilizing perimeter rim seals to close the gap between the deck and the tank shell wall. Floating roofs are further categorized into Internal Floating Roofs (IFRs) housed beneath a fixed outer roof and External Floating Roofs (EFRTs) exposed directly to the open atmosphere.
·
Vapor Space Elimination: By resting directly on the liquid surface, floating roofs suppress evaporation, drastically cutting volatile organic compound (VOC) emissions by up to 99%.
·
·
Primary Applications: Mandatory for storing highly volatile products such as crude oil, aviation jet fuel, gasoline, and petrochemical solvents.
·
·
Safety Advantage: Eliminates the flammable vapor-air mixture layer common in fixed-roof tanks, significantly reducing lightning-induced or static spark explosion risks.
·
Data Table: Fixed Roof vs. Floating Roof Tanks Technical Comparison
Technical Parameter | Fixed Roof Tank | Floating Roof Tank (IFR / EFRT) |
Roof Structure | Permanent static roof (Cone, dome, or flat plate) | Movable deck resting directly on liquid surface |
Vapor Space (Ullage) | Large air pocket between liquid and roof | Virtually zero vapor space |
VOC & Evaporative Loss | High (Vulnerable to breathing and working losses) | Extremely low (Suppressed by deck and rim seals) |
Explosion / Fire Risk | Higher (Accumulates flammable vapor-air mixtures) | Minimized (No headspace vapor pocket to ignite) |
Suitable Product Volatility | Low volatility (Water, heavy oil, diesel, asphalt) | High volatility (Crude oil, gasoline, aviation fuel, solvents) |
Capital & Maintenance Cost | Low initial cost; higher environmental compliance overhead | Moderate to high initial investment; minimal product loss |
Frequently Asked Questions (FAQ)
Q: Why do floating roof tanks provide better emission control than fixed roof tanks?
A: Fixed roof tanks leave a large vapor pocket above the liquid where gases expand and escape into the atmosphere during temperature changes. Floating roof tanks eliminate this vapor space by keeping the deck in direct contact with the liquid, preventing evaporation.
Q: Can a fixed roof tank be converted into a floating roof tank?
A: Yes. Many industrial facilities perform retrofits by installing an internal floating deck inside an existing fixed roof tank shell (creating an Internal Floating Roof Tank) to upgrade VOC emission compliance without building a new tank.
Q: Are fixed roof tanks safe for storing volatile crude oil?
A: Generally, no. Storing crude oil or gasoline in a standard fixed roof tank creates a hazardous, flammable vapor-air mixture in the headspace, requiring continuous vapor recovery units, inert gas blanketing, or upgrading to a floating roof design.
Q: Do floating roof tanks require external power to move up and down?
A: No. Floating roof tanks operate entirely passively. The roof rises and falls automatically based on the hydrostatic pressure and volume of the liquid being pumped into or out of the tank.
