Field-Erected Storage Tanks: A Comprehensive Guide to Design, Construction, and Industrial Applications

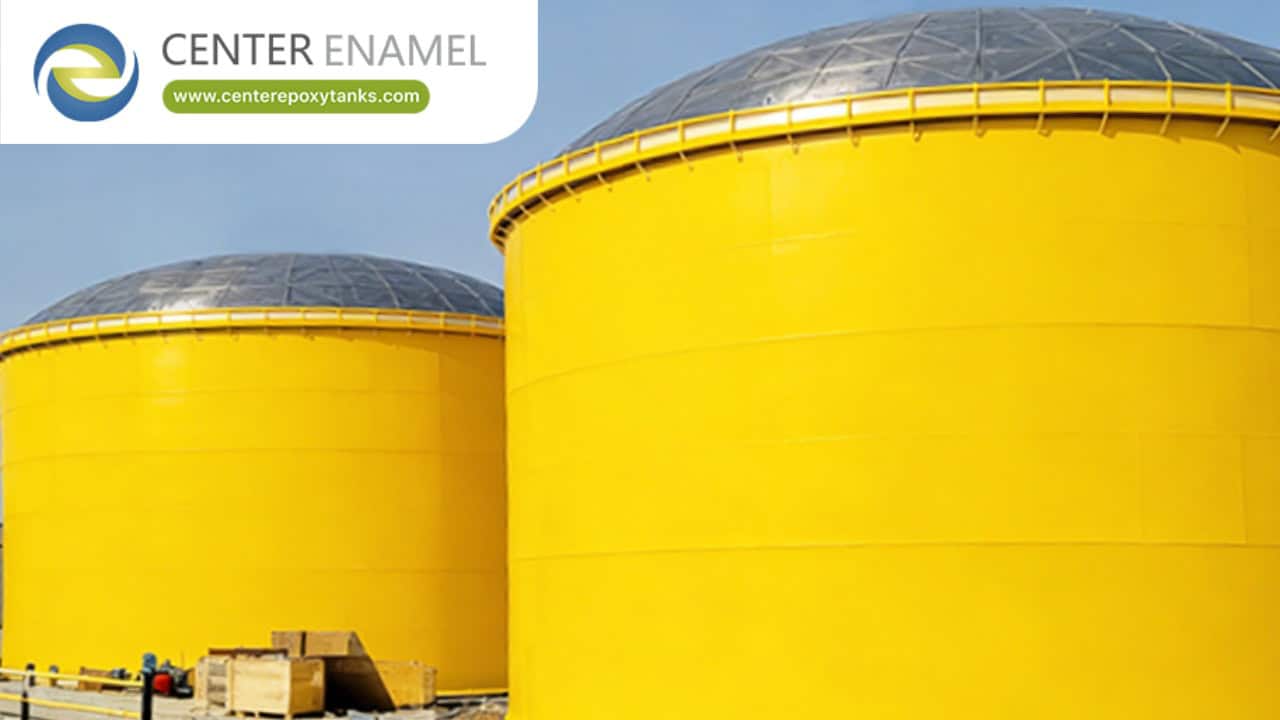

A field-erected storage tank is a large-scale industrial liquid or dry bulk containment vessel that is assembled piece-by-piece directly at the final project site, rather than being manufactured and built entirely within a factory.
When bulk storage requirements dictate a diameter exceeding standard highway transportation limits (typically anything wider than 12 to 14 feet), the tank cannot be shipped whole. Instead, the raw materials—such as prefabricated, factory-coated steel panels, rolled plates, and specialized hardware—are transported to the site in compact shipping containers. Specialized construction crews then erect the tank on a prepared concrete foundation. These structures are the backbone of global industrial infrastructure, deployed extensively for wastewater treatment, drinking water reserves, fire protection systems, and bulk biogas storage.
Core Construction Methods: Welded vs. Bolted
Field-erected tanks generally fall into two primary construction categories, each governed by strict international engineering standards:
1. Field-Bolted Steel Tanks (AWWA D103 / EN ISO 28765)
Modern industrial facilities and municipal projects are increasingly shifting toward bolted tank construction for superior quality control and rapid deployment. Steel panels are precision-cut, rolled, punched, and fully factory-coated before shipping. On-site, crews assemble the panels using high-strength structural bolts and specialized synthetic sealants.
Glass-Fused-to-Steel (GFS): The premier bolted tank technology. Steel panels are coated with a glass frit and fired at high temperatures (over 1,500°F) in a factory furnace, permanently fusing the materials. This creates an impermeable, highly corrosion-resistant finish ideal for harsh wastewater and biogas environments.
Fusion-Bonded Epoxy: An advanced factory-applied powder coating that offers excellent resistance to aggressive chemicals and safe containment for potable drinking water.
Pros: Rapid on-site installation (often requiring a fraction of the time of welded tanks); unaffected by minor weather delays; superior factory-controlled coating quality; modular design allows for future expansion or dismantling.
2. Field-Welded Steel Tanks (API 650 / AWWA D100)
For decades, field welding was the standard for massive petroleum and water tanks. Large steel plates are rolled to the correct radius at a fabrication facility, shipped to the site, and welded together by certified welders.
Pros: Can achieve virtually unlimited capacities; highly customizable geometric profiles for massive crude oil or petrochemical terminals.
Cons: Construction is highly dependent on weather conditions; requires extensive on-site quality control (such as X-ray testing of welds); interior and exterior protective coatings must be applied in the field, which can compromise curing quality and environmental compliance.
Comparison: Shop-Built vs. Field-Erected
When engineers size a storage project, the decision between shop-built and field-erected hinges entirely on capacity limits and site logistics:
Metric | Shop-Built Tanks | Field-Erected Tanks |
Maximum Capacity | Generally limited to ~30,000 gallons. | Virtually unlimited (ranging from 50,000 to millions of gallons). |
Transport Constraints | Restricted by highway bridge heights and lane widths. | Panels and plates ship flat in standard international shipping containers. |
Quality Control | 100% factory controlled environment. | Factory-coated panels (Bolted) vs. field-applied coatings (Welded). |
Site Accessibility | Requires heavy cranes and wide access roads. | Components can be carried into tight or remote footprints. |
Primary Industrial Applications
Because field-erected tanks can be scaled to immense volumes, they are deployed across critical infrastructure sectors:
Wastewater Treatment: High-capacity GFS tanks are used for aeration basins, sedimentation tanks, and anaerobic digesters due to their extreme resistance to corrosive effluents.
Fire Protection Water: Bolted steel tanks provide reliable, high-volume water reserves for commercial and industrial fire sprinkler systems.
Potable Water Storage: Epoxy-coated and GFS tanks comply with stringent NSF/ANSI 61 standards to safely hold municipal drinking water without chemical leaching.
Dry Bulk Storage: Used as tall silos for storing grain, cement, sand, and plastic pellets, often integrating specialized hopper bottoms for mass flow.
Frequently Asked Questions (FAQ)
Q: At what size does a storage tank need to be field-erected?
A: Generally, if a tank's diameter exceeds 12 to 14 feet (3.6 to 4.2 meters), it becomes too wide for standard over-the-road transportation and must be shipped in pieces for field erection.
Q: Why are Glass-Fused-to-Steel (GFS) tanks considered field-erected if they are made in a factory?
A: While the individual GFS steel panels are manufactured and coated in a highly controlled factory environment, the physical assembly of the tank—bolting the panels together, installing the roof, and sealing the joints—happens directly at the project site.
Q: Are field-erected bolted tanks safe for potable drinking water?
A: Yes. Field-erected bolted tanks, particularly GFS and factory-epoxy models, are rigorously tested and certified to international potable water standards (such as NSF/ANSI 61), ensuring safe, long-term drinking water storage without rust or contamination.
Q: Can a field-erected tank be moved or expanded after it is built?
A: A field-welded tank cannot be easily modified or moved once constructed. However, a field-erected bolted tank can be unbolted, dismantled, transported, and reassembled at a new location. Engineers can also add specialized structural rings to bolted tanks to expand their capacity later in their lifecycle.
