Engineering Guide to ASCE 7 Floating Roof Tanks
In high-stakes petrochemical, chemical, and industrial wastewater storage, the structural integrity of a floating roof tank is not merely a manufacturing preference—it is a regulatory mandate. While API 650 provides the baseline for mechanical construction (materials, welding, shell thickness), ASCE 7 is the critical standard for determining how the tank and its roof will perform under the stress of real-world environmental events.

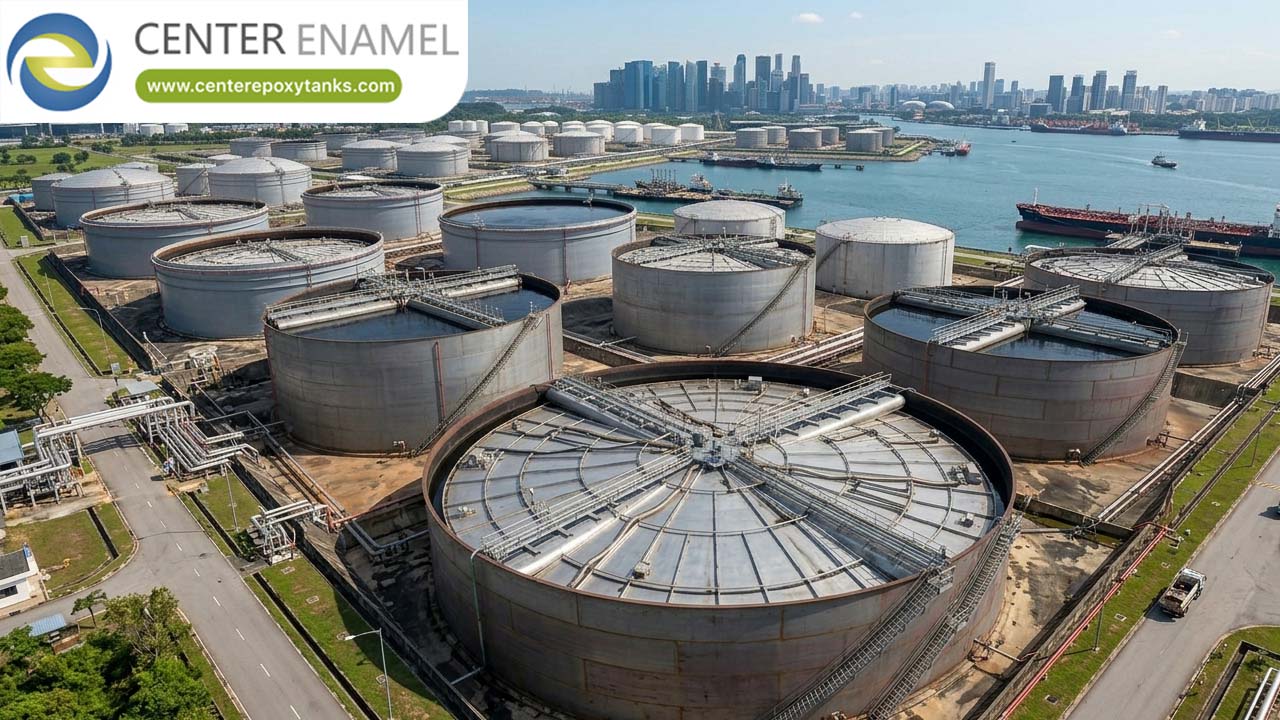

Engineering a floating roof tank to ASCE 7 standards means designing for the dynamic life of the asset, not just its static capacity.
1. The Intersection of API 650 and ASCE 7
A common engineering oversight is assuming that API 650 mechanical compliance is sufficient for site safety. In reality, ASCE 7 dictates the "load cases" that the API 650-constructed vessel must survive.
● API 650 (The "How"): Dictates the material grades, weld requirements, roof buoyancy, and seal configuration.
● ASCE 7 (The "Where"): Dictates the wind speeds, seismic acceleration, snow loads, and topographical factors specific to the tank's exact coordinates.
Failure to integrate these standards results in tanks that are mechanically sound but structurally vulnerable to localized environmental hazards.
2. Key ASCE 7 Structural Load Cases
For a floating roof tank, three primary ASCE 7 load vectors determine the structural design of the shell and the roof deck:
Seismic Hydrodynamic Sloshing
During a seismic event, the liquid inside the tank does not remain stationary. ASCE 7 requires the calculation of two distinct liquid force components:
● Impulsive Force: The mass of the liquid that moves in phase with the tank shell.
● Convective (Sloshing) Force: The upper liquid mass that oscillates, creating low-frequency waves.
If the ASCE 7-defined wave amplitude (dc) exceeds the design parameters of the floating roof, the roof can "bind" against the tank shell or become punctured by support legs. ASCE 7-compliant design ensures the rim seals and structural framework of the roof have sufficient radial flexibility to absorb this hydrodynamic energy.
Wind Uplift and Pressure Coefficients (Cp)
For open-top External Floating Roof (EFR) tanks, wind creates a vortex effect. The roof must be engineered to resist "deck lift"—a phenomenon where aerodynamic suction pulls the roof off the liquid surface. Designers use ASCE 7 velocity pressure formulas (qz) to calculate these uplift pressures and apply surface pressure coefficients to ensure the pontoon structure remains rigidly in contact with the product.
Unbalanced Snow Drifting
In regions with high snowfall, wind-driven snow accumulation is rarely uniform. ASCE 7 mandates the simulation of unbalanced snow loads, where one side of the tank roof experiences higher loading than the other. The roof’s internal structural matrix must be rigid enough to prevent buckling or uneven tilting that could lead to mechanical failure.
Technical Comparison Matrix
Engineering Metric | Standard API 650 Tank | ASCE 7-Optimized Tank |
Seismic Response | Basic lateral force design | Engineered for Convective Sloshing |
Wind Resilience | Standard code adherence | Optimized for Site-Specific Cp Loads |
Structural Rigidity | Fixed (Uniform) | Dynamic (Flexes with load vectors) |
Seal Longevity | Vulnerable to binding | High (Accommodates shell ovality) |
Compliance Risk | Low (if local, stable climate) | Minimal (Required for critical infrastructure) |
3. Optimizing Asset Performance: The Clear-Span Synergy
The most effective way to shield a floating roof tank from the environmental load variables dictated by ASCE 7 is to remove the tank's exposure to those variables.
Engineering firms now commonly pair ASCE 7-compliant floating roofs with clear-span Aluminum Geodesic Dome Roofs (ADRs). This setup provides a "controlled loop":
1. Shielding: The dome assumes all wind and snow loads, allowing the internal floating roof to be designed primarily for buoyancy and product vapor suppression.
2. Obstruction-Free: Removing internal columns prevents the floating roof from binding during seismic events.
3. Longevity: This environment prevents UV degradation of seals and eliminates rainwater drainage failures (the primary mechanical failure point for open-top tanks).
Strategic Value and Lifecycle
Designing a floating roof tank using ASCE 7 criteria is a mandatory strategy for facilities aiming for high-performance asset management. By prioritizing structural stability under seismic and wind loads—and leveraging clear-span protection—operators can guarantee that their storage infrastructure remains compliant, safe, and efficient through decades of operation.
Does your team currently require a technical review of how specific ASCE 7 wind and seismic load profiles are impacting the structural specifications of your upcoming storage tank project?
