Elevated Water Tank: Gravity-Fed Storage for Reliable Distribution

Ask any water utility engineer what keeps a distribution network stable through peak mornings, firefighting surges, and power cuts, and the answer is the same modest structure on the horizon: the elevated tank. It stores energy as elevation, not electricity, which makes it the one pressure asset that never fails when the grid does.

An elevated water tank is a storage vessel raised on a tower, pedestal, or standpipe so gravity alone supplies distribution pressure — approximately 1 bar for every 10 m of head. Sized per AWWA D100 and often carrying NFPA 22 fire reserves, elevated tanks range from a few hundred to 20,000 m3 and define the skyline of reliable water systems.

1. How Does a Gravity-Fed Elevated Tank Work?

The operating cycle is elegantly simple — and that simplicity is its reliability.

· Fill during low demand: Pumps lift water to the tank overnight when energy is cheap and demand is low, storing volume and pressure together.

· Draw during peaks: At morning and evening peaks, gravity flow from the tank meets demand the pumps would otherwise chase, stabilizing pressure across the zone.

· Fire reserve layer: The lower portion of the operating range is often reserved for fire flow, released only through dedicated mains and hydrant arrays.

· Pressure band control: Altitude valves and telemetry hold the water level between set points, keeping every customer inside the required pressure window.

2. Standpipe, Pedestal, or Composite — Which Configuration Fits?

Elevation strategy is a cost curve against capacity and height.

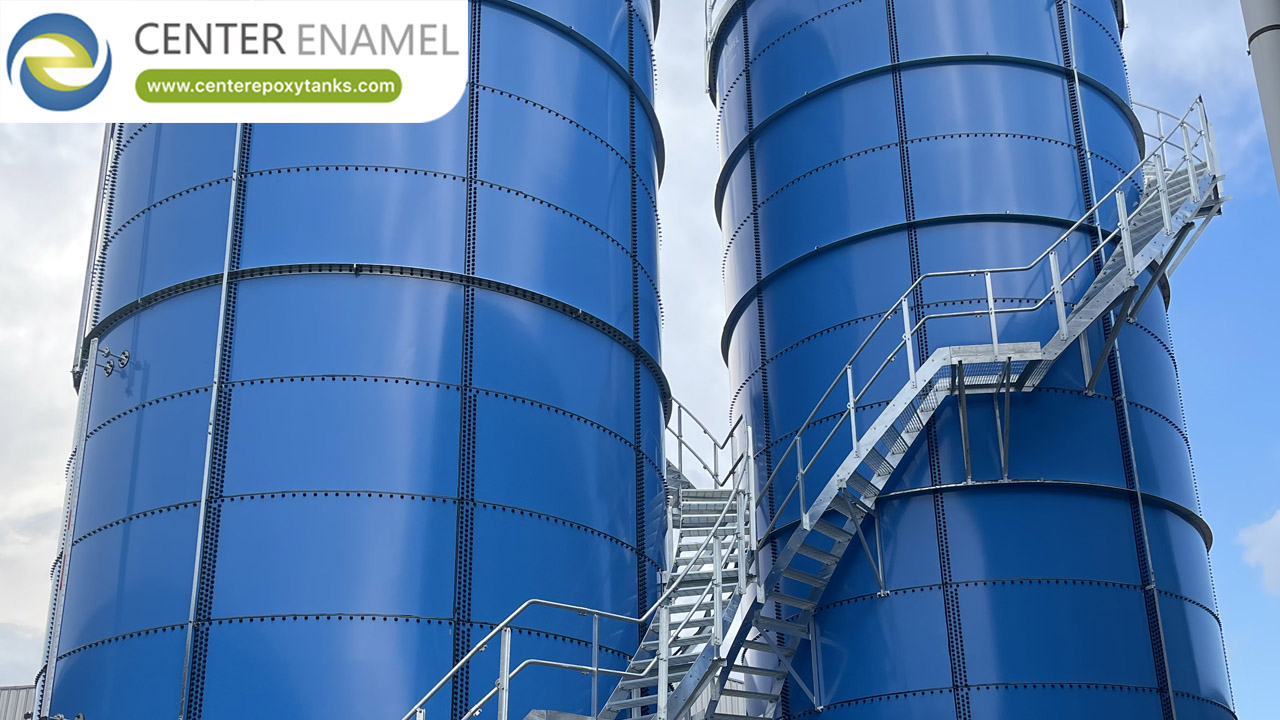

· Standpipes: Tall ground-supported cylinders (10-45 m) where moderate height and capacity coincide; simple to build, with usable volume only in the upper fraction of the shell.

· Single-pedestal tanks: A vessel atop one tapered shaft — the classic 'water ball' — efficient below about 4,000 m3 with minimal footprint.

· Fluted-column tanks: Multiple columns under a large vessel; the workhorse for 2,000-20,000 m3 municipal installations.

· Composite designs: Concrete shafts topped with steel or bolted GFS vessels dominate the largest elevated capacities, pairing stiffness with coated-steel economics.

3. How Are Elevated Tanks Sized and Protected?

Sizing and durability decisions made at design time echo for half a century.

· Equalization + fire + emergency: Capacity is the sum of peak-day balancing storage, code-required fire reserve, and an emergency allowance — typically 30-60% of peak day total.

· Coating systems: Interior GFS or epoxy linings protect potable quality; exterior zinc-epoxy-polyurethane systems fight weather for decades with scheduled touch-ups only.

· Winter provisions: Heaters, insulation, or recirculation prevent freeze damage in cold climates; the tank shell itself needs no heat if water turns over.

· Inspection regime: AWWA M42 recommends periodic washout, coating assessment, and structural inspection — cheap insurance on a 40-50 year asset.

Data Table: Elevated Tank Options by Height and Capacity

Frequently Asked Questions (FAQ)

Q1: How does an elevated water tank create pressure?

Through elevation alone: each 10 m of height above the service connection adds roughly 1 bar (14.5 psi) of pressure. No energy input is needed at delivery, so pressure survives pump failures and power outages — the core resilience argument for gravity-fed storage.

Q2: How high should an elevated water tank be?

High enough that the minimum operating level supplies required residual pressure at the highest customer — typically 20-40 m for residential zones and more for high-rise districts. Overshooting wastes pumping energy, undershooting starves remote or elevated customers during peaks.

Q3: What is the difference between a standpipe and an elevated tank?

A standpipe is a tall cylinder resting on the ground, storing water throughout its height, whereas an elevated tank lifts a vessel on a structure so nearly all stored volume sits above the useful pressure line. Standpipes cost less per cubic meter but waste the lower portion's pressure potential.

Q4: How often do elevated tanks need maintenance?

Washout and inspection every 3-5 years per AWWA M42 guidance, with coating assessments on a similar cycle. GFS or epoxy interior linings typically extend recoating intervals well beyond conventional paint systems, and structural elements are inspected after any significant seismic event.
