Elevated Steel Water Tanks: Design, Hydraulics, and Distribution Benefits

Flat terrain creates a hydraulic problem that pumps alone solve badly: every outage, every peak hour, every fire flow event exposes customers to pressure collapse. The century-old answer remains the most economical one — store water above the customers and let gravity do the pressure regulation that otherwise demands constant pump staging and backup power.

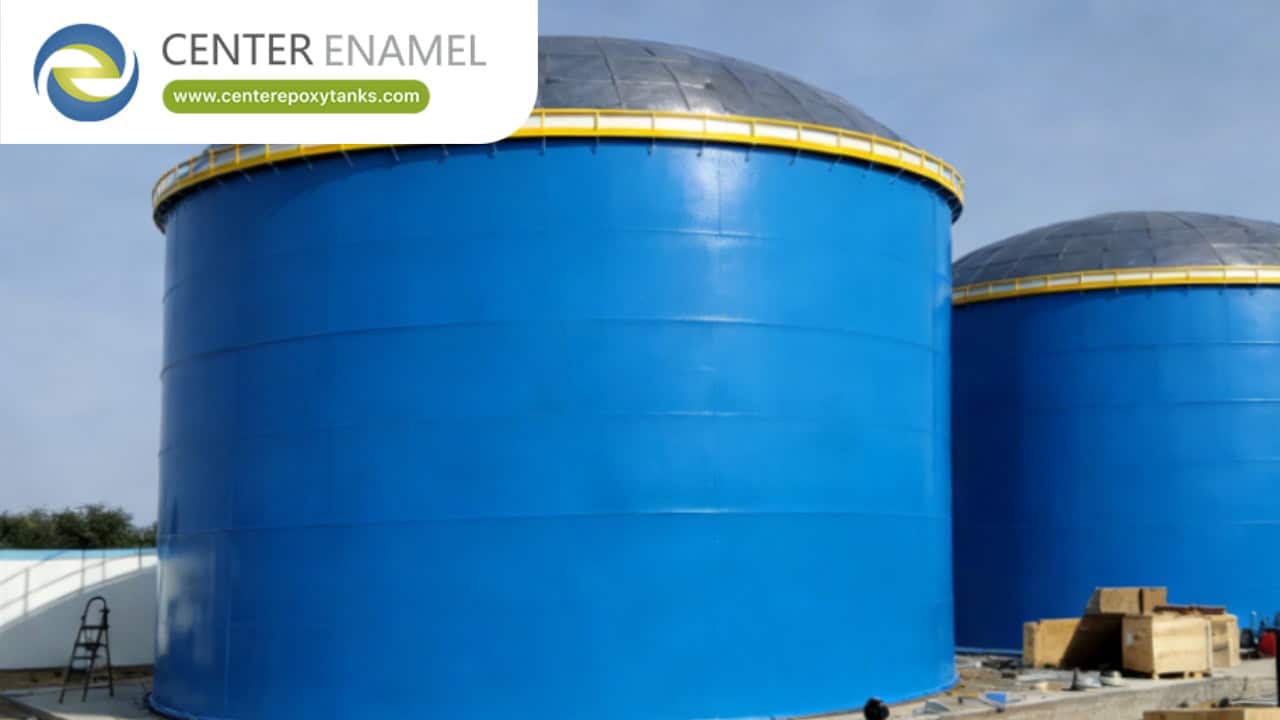

Elevated steel water tanks store potable or fire water on a raised support structure — fluted column, single-pedestal, or composite concrete-steel — providing gravity-generated distribution pressure of roughly 1 bar per 10 m of head, designed to AWWA D100 with NFPA 22 fire-flow provisions. Center Enamel supplies both elevated and ground-level bolted tank programs worldwide, including the 34.8 m tall GFS tank delivered to Indonesia in 2017.

1. How Do Elevated Tanks Stabilize Water Distribution?

Elevation converts stored volume into a hydraulic battery that pumps cannot replicate during emergencies.

· Constant pressure band: Operating between normal high and low water levels, an elevated tank holds system pressure within a narrow band regardless of demand swings.

· Fire flow without pump startup: NFPA 22 elevated reserves deliver immediate high flow while fixed pumps ramp, bridging the critical first minutes of an event.

· Pump load leveling: Storage absorbs peak demand so pumps run near best-efficiency points, extending equipment life and cutting energy cost.

· Outage immunity: During power failure, gravity maintains minimum service pressure — a resilience feature codes increasingly require.

2. What Are the Main Elevated Tank Designs?

Support structure geometry is chosen by capacity, aesthetics, and community context.

· Single-pedestal (spheroid): A steel sphere or ellipsoid on one tapered pedestal; iconic, low-maintenance, ideal below about 4,000 m3 where a single shaft carries all loads.

· Fluted column: Multiple fluted steel columns support a cylindrical or rectangular vessel; cost-effective from roughly 2,000 to 20,000 m3 with excellent stiffness.

· Composite (concrete shaft + steel vessel): A concrete pedestal carrying an AWWA D100 steel or bolted tank — the preferred configuration above 10,000 m3 and for premium corrosion isolation.

· Bolted GFS elevated vessels: Factory glass-coated panels bolted into the elevated vessel shorten coating schedules dramatically; GFS tank heights to 34.8 m have been delivered.

3. Which Standards and Loads Govern Elevated Tank Engineering?

Elevated tanks are structures first and vessels second — the code framework reflects that duality.

· AWWA D100: The governing welded steel tank standard, covering elevated vessel design, support structures, wind, and seismic load combinations.

· Seismic design: Fluid sloshing impulsive and convective masses are analyzed per code; anchorage and foundation design follow site spectra.

· Coating and inspection regimes: SP-10 surface preparation with zinc-epoxy-polyurethane or glass systems protects both wetted and atmospheric surfaces; OSHA-compliant ladders, platforms, and fall arrest are integral.

· Instrumentation: Level telemetry, altitude valves, and overflow management keep the tank cycling correctly — daily turnover prevents stagnation and disinfectant decay.

Data Table: Elevated Tank Configurations Compared

Frequently Asked Questions (FAQ)

Q1: How much pressure does an elevated water tank provide?

Roughly 1 bar (14.5 psi) of distribution pressure for every 10 m of height above the service area, plus friction and elevation losses in the network. A tank with overflow at 30 m therefore supplies about 3 bar at the connection point — typically adequate for two-to-three-story buildings.

Q2: What is the difference between an elevated tank and a water tower?

They are the same concept: a water tower is the familiar name for an elevated tank on a tower or pedestal. Engineering literature distinguishes single-pedestal, fluted-column, and composite elevated tanks, all designed to AWWA D100 with gravity pressure derived from operating head.

Q3: How tall can steel elevated water tanks be?

Fabricated steel vessels reach 40-50 m to overflow; bolted GFS tanks have been delivered at 34.8 m total height (Indonesia, 2017). Above roughly 50 m, composite concrete-shaft designs dominate because a concrete pedestal carries wind and seismic loads more efficiently.

Q4: Do elevated tanks need pumps?

Only to refill them. Pump stations lift water to the tank during off-peak hours, then gravity handles distribution, fire flows, and outage protection. This pump-to-storage cycle reduces energy cost and eliminates the need for continuously running pressure-boosting equipment.
