Double Membrane Roofs for Biogas Digesters: Engineering Dual-Function Gas Containment and Structural Integrity
In modern renewable energy generation, wastewater treatment, and agricultural waste management, anaerobic digestion is the core biological process used to break down organic matter and produce clean biogas (primarily methane and carbon dioxide). A critical engineering challenge in designing these biological reactors is finding a reliable overhead cover that not only seals the tank against weather and environmental emissions but also safely stores and regulates the volatile biogas generated within.

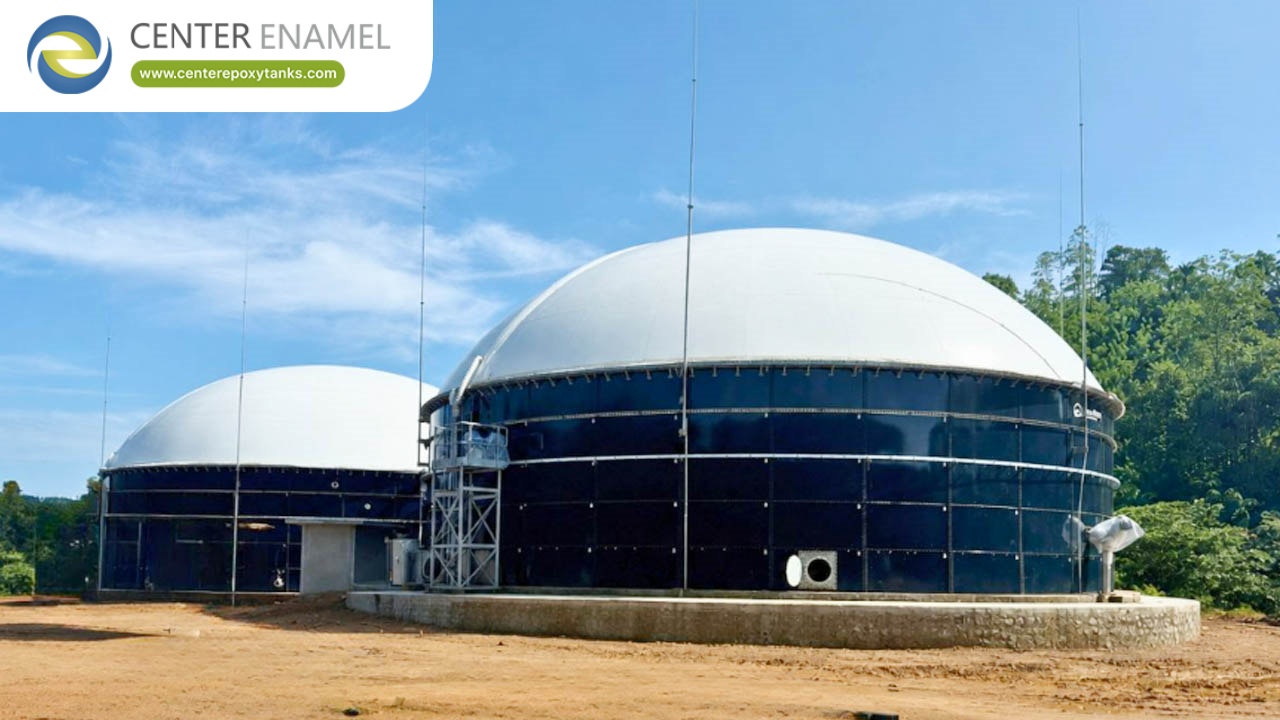

The modern industry standard for this application is the double membrane roof for biogas digesters. Acting as a dual-purpose engineering solution, a double membrane roof serves simultaneously as the structural top cover of the anaerobic digester and as an integrated low-pressure gas storage holder, eliminating the need for separate, standalone gas containment tanks.
Core Engineering Principles and Structural Design
The mechanical efficiency and safety of double membrane digester roofs rely on a sophisticated multi-layer architecture:
Inner Membrane (Gas Containment): Sealed gas-tight to the upper wall or perimeter of the digester tank, the inner membrane hangs loosely inside the headspace. As anaerobic bacteria generate biogas, this flexible layer expands upward, directly containing the gas volume while remaining completely isolated from atmospheric oxygen.
Outer Membrane (Weather Protection & Pressure Regulation): The outer membrane forms the aerodynamic, weather-resistant exterior shell of the roof. It shields the system against heavy wind loads, rain, snow, and UV solar radiation.
Active Air-Blower and Pressure Balancing System: An automated air blower system continuously pumps air into the sealed inter-membrane space between the inner and outer layers. A constant-pressure control valve regulates this air volume, exerting a uniform downward pressure on the inner gas chamber. This ensures the biogas is delivered to downstream combined heat and power (CHP) engines or boilers at a stable, reliable working pressure.
High-Tenacity Fabric and Chemical Defense: Because biogas environments are saturated with moisture and corrosive trace gases like hydrogen sulfide (H2S), the membranes are manufactured from specialized, high-tenacity polyester fabrics coated with heavy-duty PVC/PVDF polymers that resist chemical attack, micro-cracking, and biological degradation.
Data Table: Comprehensive Comparison of Biogas Digester Roof Systems
Technical Parameter | Double Membrane Digester Roofs | Rigid Steel Dome Roofs | Cast-in-Place Concrete Fixed Roofs |
Primary Function | Dual-function: structural digester cover and integrated gas storage holder | Structural cover only; requires a separate standalone gas holder | Structural cover only; heavy mass requiring reinforced tank walls |
Corrosion Resistance | High-grade PVC/PVDF membranes completely immune to H2S and moisture attack | Carbon steel vulnerable to rapid corrosion from wet biogas without costly internal coatings | Prone to concrete carbonation, micro-cracking, and acid spalling in digester headspaces |
Gas Storage Capability | Integrated volumetric storage buffering daily production surges | None; requires external gas containment vessels | None; fixed structural roof with no gas holding capacity |
Installation & Maintenance | Lightweight modular installation with near-zero long-term coating upkeep | Requires heavy crane lifts, field welding, and periodic sandblasting/repainting | Slow, labor-intensive civil construction with high curing times |
Frequently Asked Questions (FAQ)
Q: What is a double membrane roof for a biogas digester?
A: It is an engineered dual-layer fabric membrane system mounted atop an anaerobic digester that acts simultaneously as a weather-tight structural roof and an integrated gas storage holder.
Q: How do double membrane roofs handle corrosive biogas components like hydrogen sulfide (H2S)?
A: The membranes are constructed from high-strength polyester fabrics coated with specialized PVC/PVDF formulations that are completely inert to moisture and trace hydrogen sulfide, preventing the oxidation that destroys unprotected steel roofs.
Q: How is constant gas pressure maintained beneath the membrane?
A: An automated blower system maintains a regulated air cushion between the inner and outer membranes. This air pressure exerts a steady, uniform downward force on the inner gas containment membrane to keep delivery pressure consistent.
Q: Can double membrane roofs be retrofitted onto existing concrete or steel digester tanks?
A: Yes. Because they are lightweight and custom-engineered to precise tank diameters, double membrane roofs are frequently retrofitted onto existing municipal or agricultural digesters to upgrade gas storage capacity and improve corrosion resistance.
