China Flexible Balloon Biogas Manufacturer: Advanced Double-Membrane Storage Solutions for Renewable Energy
As global investments shift decisively toward circular bio-economies and carbon-neutral energy production, efficient anaerobic digestion (AD) has become a vital pillar for waste management. Whether processing agricultural livestock waste, municipal sewage sludge, food processing byproducts, or industrial organic effluents, biogas plants require secure, high-efficiency containment systems to capture and stabilize renewable methane. Traditional rigid steel or concrete gasometers often involve high capital expenditures, complex construction timelines, and severe vulnerability to biogenic corrosion.
To overcome these engineering and economic hurdles, plant developers increasingly utilize flexible membrane storage solutions. As a premier global leader in containment and wastewater engineering, Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) stands out as a trusted China flexible balloon biogas manufacturer, delivering advanced double-membrane gas holders and flexible storage systems engineered for maximum energy retention and long-term durability.
Engineering Excellence: The Core Advantages of Flexible Biogas Balloons

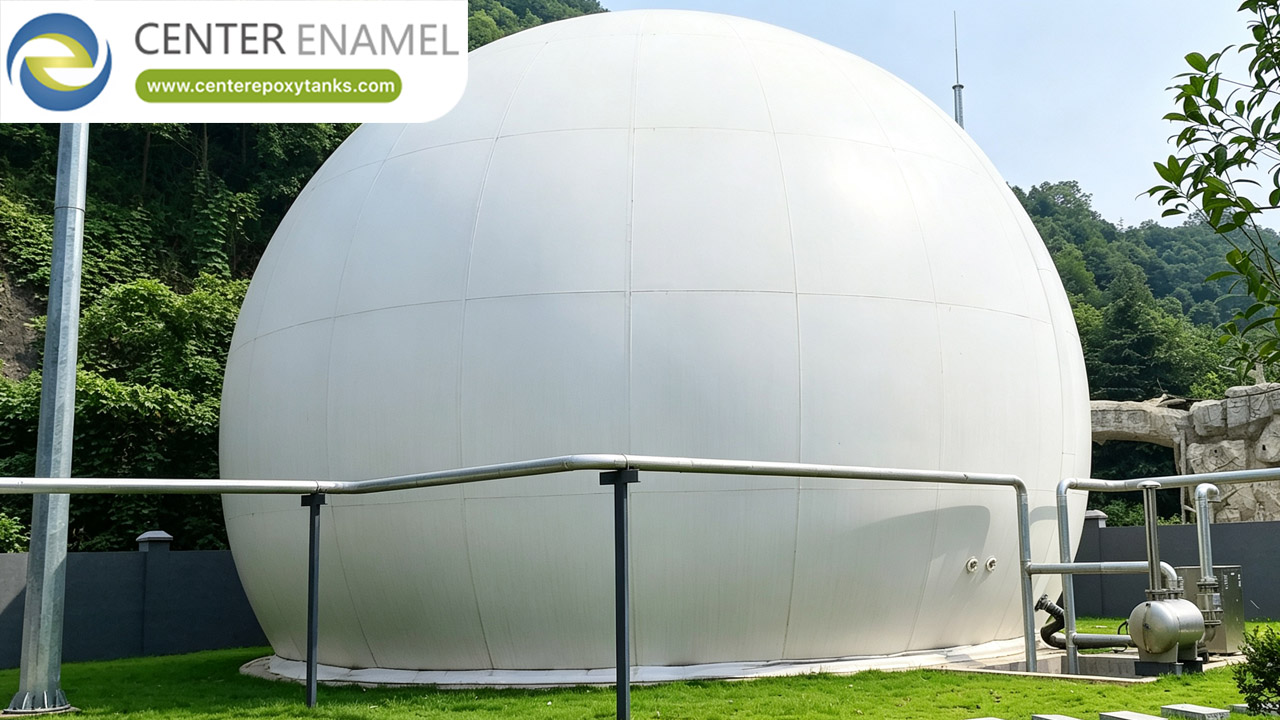

Center Enamel’s flexible biogas storage systems—often engineered as double-membrane gas holders mounted on anaerobic digesters or ground foundations—integrate cutting-edge material science with robust structural design:
High-Performance Multi-Layer Membrane Architecture: Constructed from high-tenacity polyester fabrics coated with specialized PVC and premium PVDF (Polyvinylidene Fluoride) layers, these biogas balloons provide exceptional tear strength and chemical resistance against hydrogen sulfide (H2S) and ammonia.
Ultra-Low Methane Permeability: Engineered to achieve strict gas-tight thresholds (with methane permeability rates under 400 cm3/m2cdotdcdotbar), Center Enamel's systems ensure zero fugitive emissions, maximizing clean energy capture for downstream Combined Heat and Power (CHP) engines.
Active Climate and Pressure Adaptation: The dual-membrane configuration utilizes an inner gas storage layer and an outer weather-protection membrane stabilized by continuous air blower pressure. Automated pressure control logic adjusts buffer zone air pressure dynamically during high-wind events to prevent mechanical fatigue and structural flapping.
Modular Versatility and Retrofit Capability: Designed for seamless integration, these flexible balloons can be mounted directly onto existing Glass-Fused-to-Steel (GFS) digesters, epoxy-coated steel tanks, or standalone concrete foundations.
Data Table: Flexible Biogas Holder vs. Traditional Rigid Storage Systems
Technical Parameter | Center Enamel Double-Membrane Biogas Holder | Traditional Fixed Steel Gasometers | Poured-in-Place Concrete Gas Tanks |
Material Composition | High-tenacity PVC/PVDF coated industrial polyester fabrics | Heavy structural carbon steel plates | Cast-in-place reinforced concrete |
Corrosion Resistance | Superior; inert to biogenic sulfuric acid (H2S) and moisture | Low; requires constant painting and rust mitigation | Moderate; vulnerable to sulfate attack and spalling |
Volume Flexibility | Variable "variable lung" expansion matching daily gas yields | Fixed or mechanically guided rigid telescopic volume | Fixed volume capacity |
Installation Velocity | Rapid modular setup completed in 1 to 2 weeks | Slow field-erected welding and inspection | Extremely slow formwork, pouring, and curing |
Governing Standards | ISO 9001, EN 13782, ATEX, Eurocode 1 | API 650 / Standard industrial codes | ACI Structural Concrete Standards |
Global Applications Across Renewable Sectors
Center Enamel's flexible biogas storage solutions are deployed worldwide across diverse renewable energy landscapes:
Agricultural Biogas Plants: Storing methane generated from manure and crop residues to power rural agricultural microgrids.
Municipal Wastewater Facilities: Managing digester gas release and providing buffer capacity for municipal sewage sludge treatment plants.
Industrial Food and Beverage Processing: Capturing high-strength organic wastewater biogas to offset factory thermal energy requirements.
Landfill Gas Recovery: Providing reliable, weather-resistant low-pressure buffer storage for captured landfill methane.
Frequently Asked Questions (FAQ)
Q: What materials are used to manufacture Center Enamel flexible biogas balloons?
A: Our biogas holders are fabricated using high-tenacity polyester base fabrics coated with specialized PVC and advanced PVDF surface treatments, offering superior UV stability, flame retardancy, and absolute resistance to corrosive biogas components like H2S.
Q: How do double-membrane biogas holders handle extreme weather and snow loads?
A: The spherical or conical geometry of the outer membrane naturally sheds snow (rated for loads up to 1.5 kN/m2), while automated blower controls adjust internal air pressure to stabilize the structure against high-velocity winds up to 150 km/h.
Q: Can these flexible biogas holders be retrofitted onto existing anaerobic digesters?
A: Yes. Center Enamel's modular mounting systems (such as clamping hose profiles and stainless steel double flat profiles) allow flexible biogas holders to be easily retrofitted onto existing concrete, GFS, or epoxy-coated steel tanks.
Q: What is the typical service life of a PVDF-coated flexible biogas holder?
A: With proper pressure management and UV-stabilized PVDF coatings, our flexible biogas storage systems provide a reliable operational lifespan of 15 to 20 years with minimal routine maintenance.
