Chilled Water Storage Tank for Data Centers: Thermal Storage Design
A chilled water storage tank is a thermal energy store: it holds chilled water at supply temperature and receives warmer return water, so chiller output is decoupled from instantaneous load. Stored energy depends on water volume and temperature difference, at about 1.163 kWh per cubic metre per kelvin of spread - so a 7 K design spread stores roughly 8.1 kWh per cubic metre. The tank therefore has to combine coating performance, insulation and internal diffusers that preserve the temperature separation between stored cold water and warmer return.
Chilled water storage changes how a cooling plant meets its load. Instead of sizing chillers for the peak, the plant runs at a steady rate and the tank absorbs the difference between generation and demand. On a data center that can reduce installed chiller capacity, shift electrical demand away from expensive periods and buffer short interruptions.
This article explains how chilled water thermal storage works, how the storage volume is calculated, what the tank must provide internally and thermally, and where the design limits lie. It is written for mechanical engineers and owners evaluating storage as part of a cooling strategy.
Technical Explanation
How chilled water storage works
The principle is thermal stratification: cold water is denser than warm water, so a tank can hold both at once if mixing is controlled.
• Charging: the plant produces chilled water at supply temperature and introduces it at the bottom of the tank, displacing warmer water upwards.
• Storing: a stable thermocline separates the cold lower region from the warmer upper region, preventing the two from mixing.
• Discharging: return water from the load is drawn from the top and stored chilled water is drawn from the bottom, supplying the load without running the chillers.
• The useful capacity is the volume between the two diffusers times the temperature difference, less the losses that occur as the thermocline degrades over each cycle.
Sizing the storage volume
Sizing begins with the stored energy required and the design temperature spread:
• Stored energy depends on the load profile: how much cooling the tank must provide and for how long during the discharge period.
• Energy per unit volume is approximately 1.163 kWh/m3 per kelvin of spread, so a 7 K spread stores about 8.1 kWh/m3 and a 10 K spread stores about 11.6 kWh/m3.
• Working backwards, storing 10,000 kWh with a 7 K spread requires roughly 1,230 m3 of well-stratified volume, before any allowance for thermocline degradation.
• A wider design spread reduces tank volume for the same energy, but may require lower supply temperatures or higher return temperatures, which affects chiller and coil selection.
What the tank has to provide internally
A storage tank is process equipment as much as a vessel, and its internal details decide whether the stored capacity is usable:
• Diffusers: inlet and outlet arrangements designed for low exit velocity and uniform distribution, so entering water does not jet into and mix the stored volume.
• Flow distribution: diffuser footprint and slot geometry chosen so that buoyant flow spreads across the full tank cross-section.
• Temperature instrumentation: sensors at multiple heights to track the thermocline position and confirm usable capacity in operation.
• Internal surfaces: a coating free of irregularities that would trap debris, with nozzles positioned so the diffusers can be installed and maintained.
Thermal performance of the vessel
Heat gain reduces useful storage, so the enclosure matters as much as the internals:
• Insulation: applied to the shell and roof, with thickness selected from the acceptable daily heat gain and the surrounding conditions.
• Vapour control: because the tank surface sits below ambient dew point in humid conditions, insulation needs a vapour barrier to prevent condensation within the insulation itself.
• Roof detail: the roof is a large heat gain area, so its insulation and connection to the shell need the same care as the wall.
• Coating selection: the internal coating must suit the water chemistry and be applied in the factory, so that insulation can be installed without a site coating operation.
Technical Specifications
Table 1 - Chilled water storage design parameters
Parameter | Design consideration | Effect on the tank | Watch point |
Design temperature spread | Wider spread stores more energy per unit volume | Smaller tank for the same capacity | Chiller and coil selection limits the spread |
Stored energy requirement | From the load profile and discharge duration | Sets the stratified volume | Allow for thermocline degradation |
Diffuser design | Low velocity, uniform distribution | Determines usable capacity | Poor diffuser design wastes tank volume |
Insulation | Thickness from allowable heat gain | Shell and roof construction | Condensation control with a vapour barrier |
Instrumentation | Multi-point temperature sensing | Sensor mounting through the shell | Provision must be designed before fabrication |
Coating | Suitability for the water chemistry | Factory application before assembly | No site coating operation once insulated |
Project Case Study
Project Case Summary - large diameter bolted tank delivery

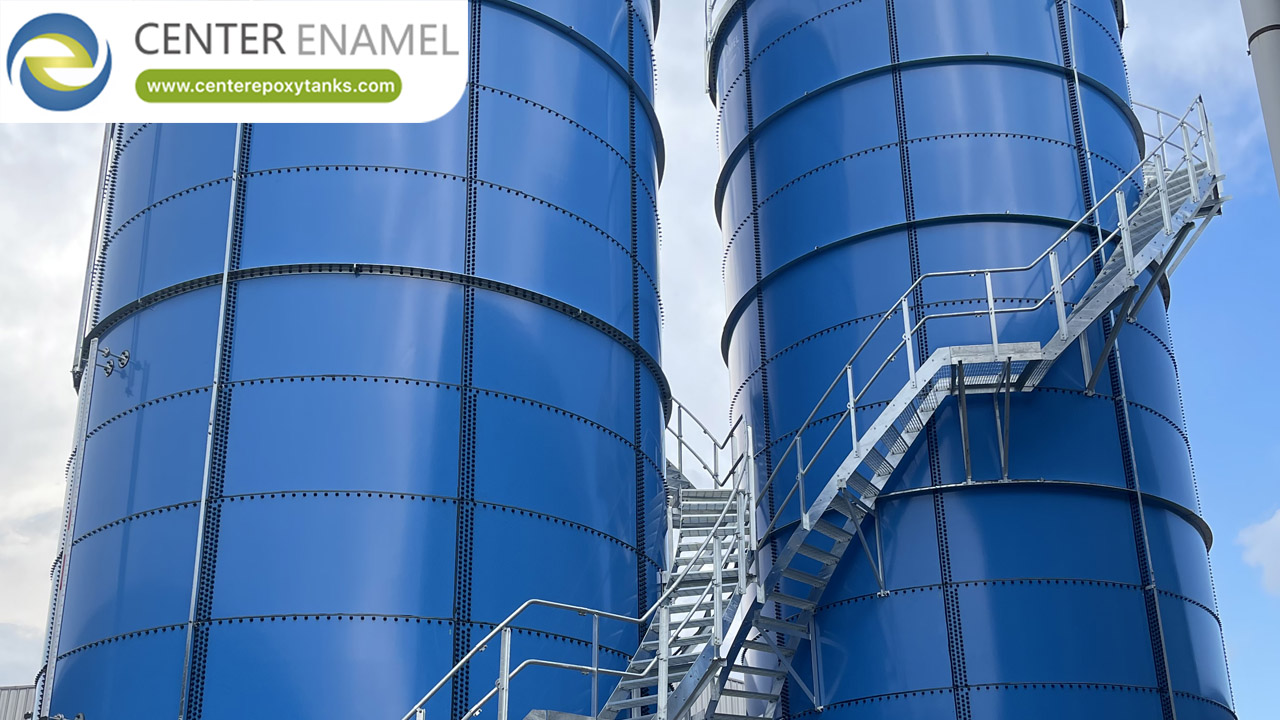

The record below is a large bolted tank in water service, cited because the vessel-scale fabrication involved is the same as a thermal storage tank requires for a data center plant.
Project | Application | Capacity | Construction | Roof | Completion |
Canada | Industrial water | 6,595 m3 | Glass-fused-to-steel bolted | Not applicable | 2025-11 |
South Africa | Industrial wastewater | 6,075 m3 | Glass-fused-to-steel bolted | Aluminium flat roof | 2026-03 |
Company Expertise
Center Enamel manufactures bolted tanks at large diameters on a factory-coated panel system, which allows internal diffusers, multi-point temperature instrumentation and insulation to be planned into the vessel rather than added afterwards. Design follows AWWA D103-09.
As an outstanding containment and cover system provider with decades of industry experience, Center Enamel sincerely expects to establish long-term cooperation with local partners throughout the world and to make continuous contribution to the development of the industry.
Shijiazhuang Zhengzhong Technology Co., Ltd is not only the first manufacturer in China to produce Glass-Fused-to-Steel tanks, but also the most experienced professional bolted tank manufacturer in Asia. The engineering, design, product testing and quality system of Center Enamel Glass-Fused-to-Steel tanks are in strict accordance with AWWA D103-09, OSHA, ISO 28765, NSF/ANSI 61 and NFPA. By 2023, Center Enamel bolted tanks had been exported to more than 100 countries, including the USA, Australia, Canada, Malaysia, Indonesia, Russia, the UAE, Panama, Brazil and South Africa.
Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) is a professional manufacturer dedicated to the design and fabrication of bolted storage tanks since 2008. Our product range includes Glass-Fused-to-Steel (GFS) tanks, fusion bonded epoxy tanks, stainless steel tanks, galvanized steel tanks and aluminum geodesic dome roofs. With a professional enameling R&D team and nearly 200 enameling patents, Center Enamel has become a leader in the bolted tank industry in Asia. Our products are certified to ISO 9001, NSF 61, EN 1090, ISO 28765, WRAS, FM, LFGB, BSCI and ISO 45001.
Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) is a professional manufacturer dedicated to the design and fabrication of bolted storage tanks since 2008. Our product range includes Glass-Fused-to-Steel (GFS) tanks, fusion bonded epoxy tanks, stainless steel tanks, galvanized steel tanks and aluminum geodesic dome roofs. With a professional enameling R&D team and nearly 200 enameling patents, Center Enamel has become a leader in the bolted tank industry in Asia. Our products are certified to ISO 9001, NSF 61, EN 1090, ISO 28765, WRAS, FM, LFGB, BSCI and ISO 45001.
Shijiazhuang Zhengzhong Technology Co., Ltd is not only the first manufacturer in China to produce Glass-Fused-to-Steel tanks, but also the most experienced professional bolted tank manufacturer in Asia. The engineering, design, product testing and quality system of Center Enamel Glass-Fused-to-Steel tanks are in strict accordance with AWWA D103-09, OSHA, ISO 28765, NSF/ANSI 61 and NFPA. By 2023, Center Enamel bolted tanks had been exported to more than 100 countries, including the USA, Australia, Canada, Malaysia, Indonesia, Russia, the UAE, Panama, Brazil and South Africa.
As an outstanding containment and cover system provider with decades of industry experience, Center Enamel sincerely expects to establish long-term cooperation with local partners throughout the world and to make continuous contribution to the development of the industry.
Frequently Asked Questions (FAQ)
Q: How much cooling energy does 1 cubic metre of chilled water store?
A: Approximately 1.163 kWh per kelvin of usable temperature difference, so a 7 K spread stores roughly 8.1 kWh per cubic metre of well-stratified volume. Practical capacity is lower than the theoretical figure because the thermocline occupies part of the tank and degrades through each cycle.
Q: How is the storage volume calculated?
A: Divide the required stored energy by the energy per unit volume at the design spread, then add an allowance for thermocline degradation and for the unusable volume below the lower diffuser. That gives the tank volume needed to deliver the intended discharge period.
Q: Does thermal storage reduce the chiller capacity required?
A: It can, because the plant meets the average rather than the peak load and the tank covers the difference. Whether installed capacity falls depends on the load profile, the tariff structure and the charge and discharge windows available.
Q: Why does stratification matter so much?
A: Because mixing destroys the stored capacity. If incoming water jets into the stored volume and mixes it, the tank discharges at a temperature between supply and return and the useful energy falls away. Diffuser design and low flow velocities are what preserve the separation.
Q: Does the tank need insulation?
A: Yes. Heat gain through the shell and roof erodes stored cooling every hour, and in humid climates condensation on a cold surface becomes a corrosion and safety concern as well as an efficiency problem. Insulation with an effective vapour barrier is standard for this duty.
Q: Can an existing water tank be converted to thermal storage?
A: Sometimes, but it requires internal diffusers, multi-point temperature instrumentation, insulation and a review of the coating for the temperature duty. Retrofitting those into a tank that was not designed for them is usually more expensive than providing them in the original design.
Chilled water storage is a volume and a temperature difference, protected by stratification. Sizing starts from stored energy and the design spread; performance then depends on diffuser design, insulation and vapour control. A tank built for the duty costs little more than one built for plain water storage and can reduce installed chiller capacity.
