Floating roof tanks (FRT) are the primary mechanical solution for eliminating vapor headspace in high-volatility oil storage. Center Enamel engineers Internal (IFR) and External (EFR) Floating Roofs compliant with API 650 Appendix C & H. By maintaining direct contact with the liquid surface, our designs reduce Volatile Organic Compound (VOC) emissions by up to 99%, significantly mitigating "breathing losses" and fire risks. With advanced Fusion Bonded Epoxy (FBE) shell coatings and marine-grade aluminum or steel roofs, Center Enamel supports global refineries and strategic reserves in over 100 countries.
Feature | Technical Specification (2026 Standard) | Strategic Value |
Design Standards | API 650, NFPA 30, BS EN 14015 | Mandatory for global industrial and insurance compliance. |
Roof Types | Pontoon, Double-Deck, Full-Contact | Ensures inherent buoyancy and emergency drainage. |
Vapor Mitigation | Primary & Secondary Rim Seals | Eliminates 98-99% of evaporative product loss. |
Material Grade | Aluminum 6061-T6 / ASTM A36 Steel | High strength-to-weight ratio; corrosion resilience. |
Shell Coating | Fusion Bonded Epoxy (FBE) / GFS | Dielectric barrier against $H_2S$ and salt-air oxidation. |
Compatibility | Crude Oil, Gasoline, Jet Fuel, Benzene | Wide chemical resistance for the energy sector. |

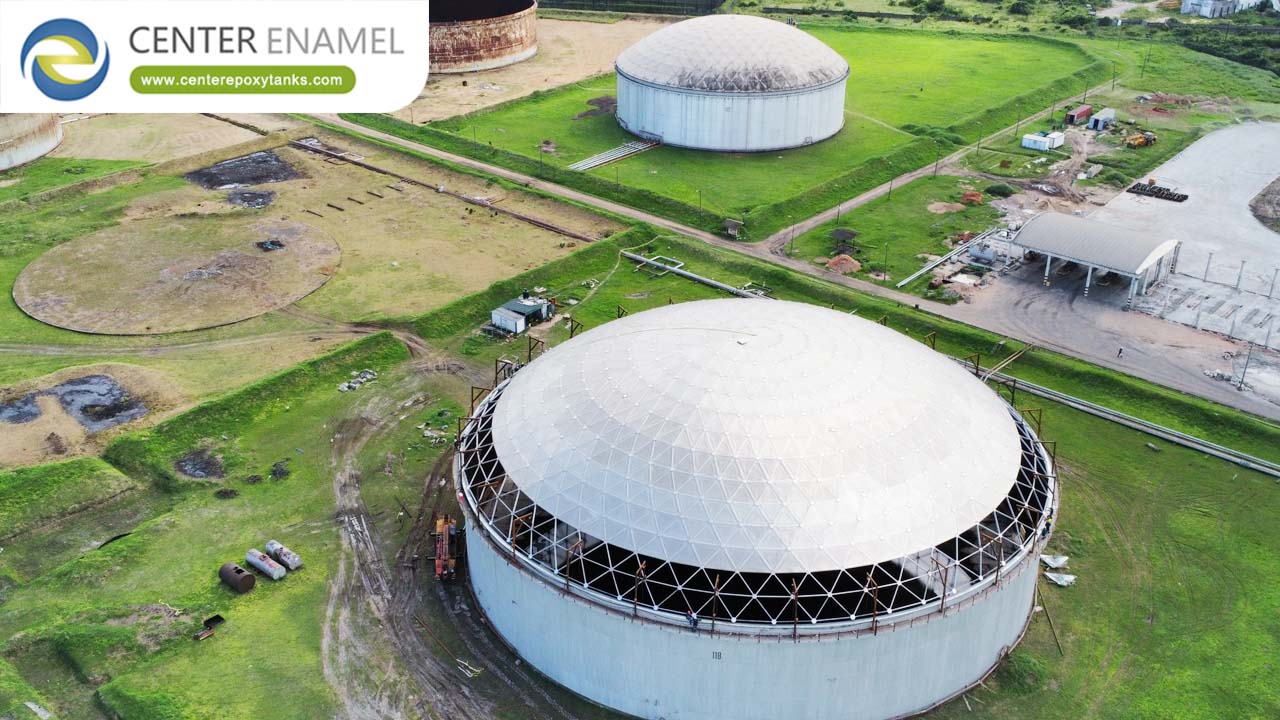

Operating inside a fixed-roof tank, the IFR provides a dual barrier. The fixed roof protects the floating deck and its seal system from snow, rain, and UV degradation, making it the preferred choice for refined products like gasoline and jet fuel.
● Seal Integrity: We utilize mechanical shoe seals or liquid-filled seals that maintain a tight fit against the tank shell, even during thermal expansion.

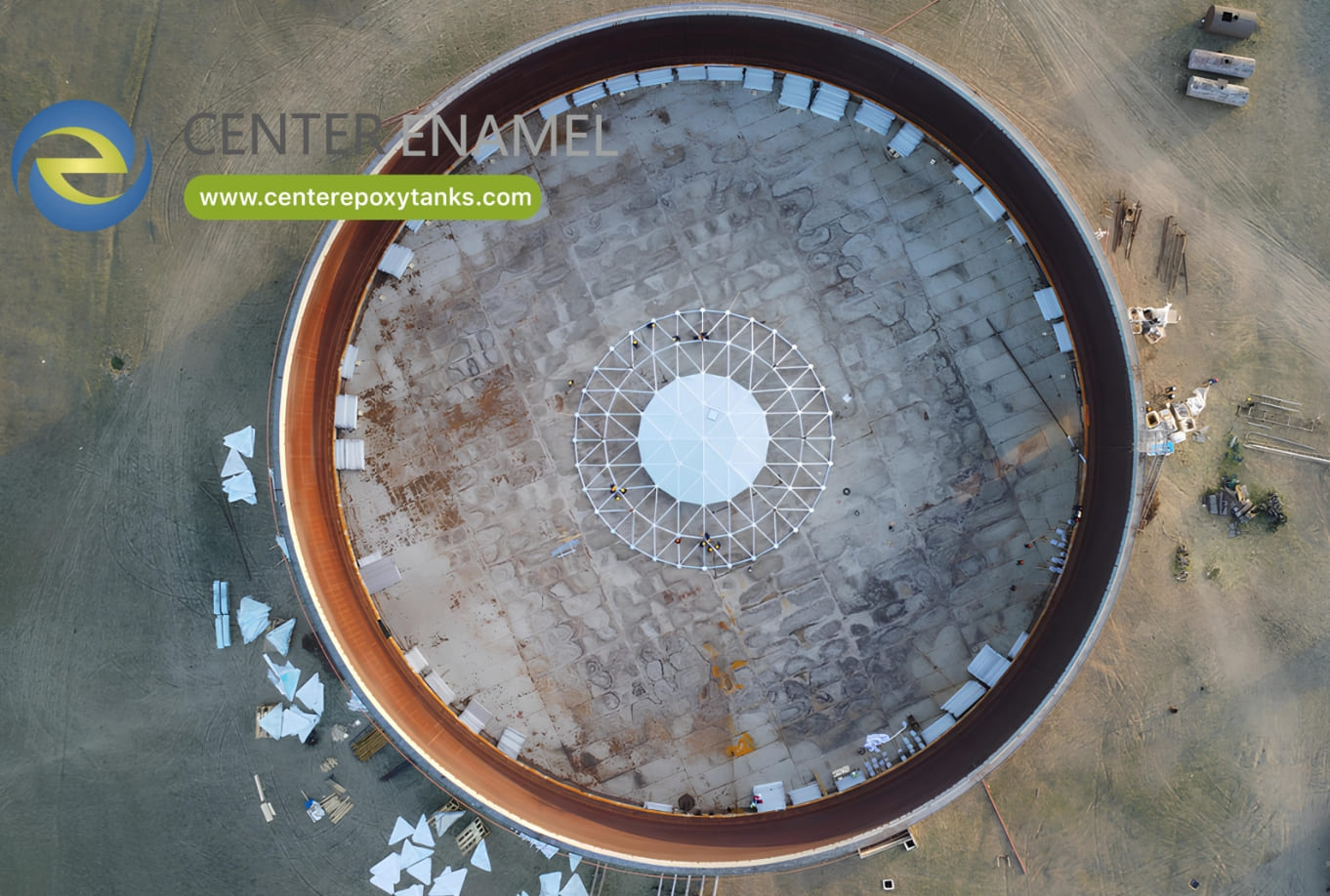

For massive-diameter crude oil tanks where a fixed roof is structurally impractical, the EFR is the standard.
● Weather Management: Center Enamel EFRs feature articulated drainage systems and "weather shields" to protect the primary seals from rainwater ingress and wind-induced vapor loss.
● Explosion Prevention: By eliminating the vapor-rich headspace (the "ullage"), our tanks remove the primary requirement for a combustion event. This is critical in regions prone to lightning strikes or static discharge.
● VOC Emission Compliance: Center Enamel tanks assist operators in meeting EPA OOOOa and Eurocode environmental mandates by capturing high-value light ends that would otherwise be lost to the atmosphere.
● Product Purity: The full-contact deck prevents moisture condensation and airborne particulate matter from contaminating the stored oil, ensuring feedstock quality for downstream refining.
As a global leader in high-performance containment, Center Enamel offers a unique technological advantage:
● 30+ Years of Manufacturing Excellence: We were the first in China to master Glass-Fused-to-Steel (GFS) and Fusion Bonded Epoxy (FBE) for industrial use, now exported to over 90 countries.
● Hybrid Structural Engineering: We can pair our floating roofs with Bolted Steel Shells, allowing for rapid modular deployment in remote oil fields where field-welding is logistically difficult.
● Finite Element Analysis (FEA): Every roof is subjected to FEA modeling to simulate "sloshing" effects during seismic events, ensuring the deck remains buoyant and the seals remain intact under extreme stress.
Q: How do you prevent a floating roof from "sinking"?
A: We utilize multi-compartment pontoons or double-deck designs. Each compartment is individually pressure-tested at the factory. Per API 650, the roof is designed to remain buoyant even if two adjacent compartments are breached.
Q: Is a floating roof compatible with "Sour" crude?
A: Yes. We utilize Fusion Bonded Epoxy (FBE) for the shell and specialized non-reactive alloys for the roof components to resist the corrosive effects of Hydrogen Sulfide ($H_2S$) found in sour crude.
Q: Can I retrofit an existing fixed-roof tank with a Center Enamel IFR?
A: Absolutely. Our Aluminum IFRs are designed for modular assembly. Components can be brought through standard manways and assembled inside the tank, providing an immediate upgrade to your vapor recovery capabilities.
