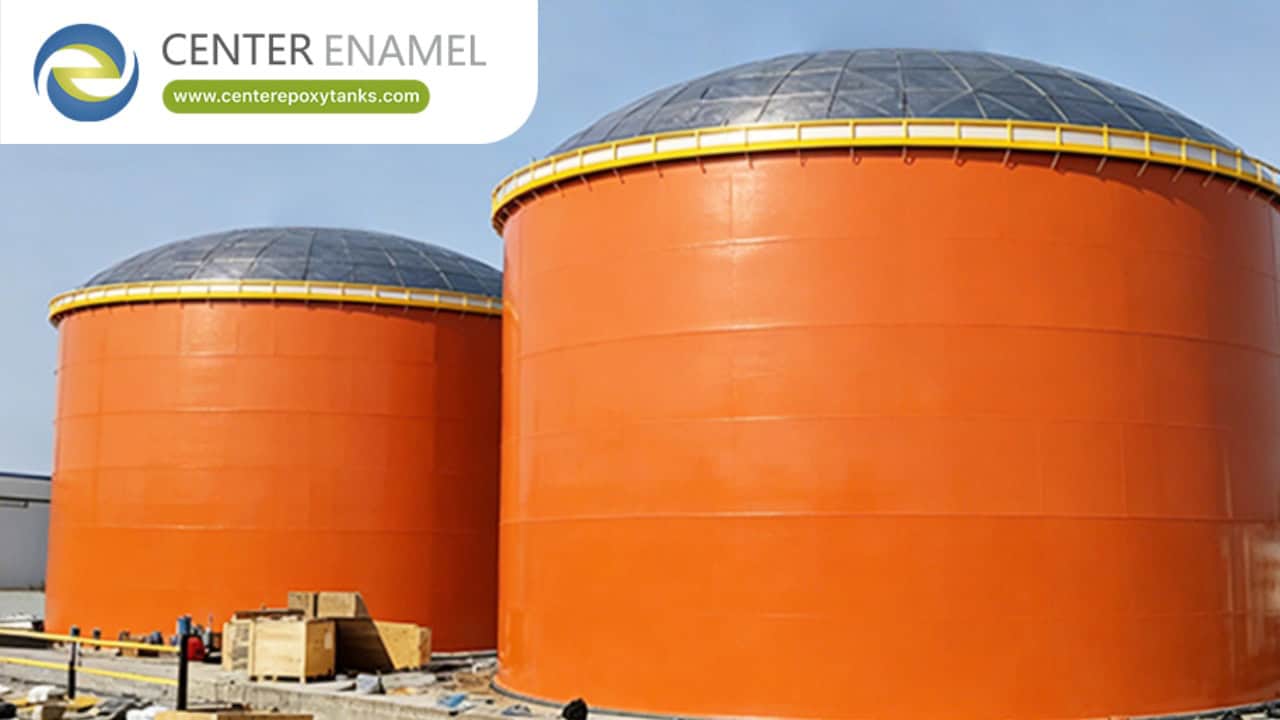

API 650 Aluminum Dome Roofs: Engineering Excellence in Liquid Storage

In the global industrial landscape, the structural integrity and longevity of a storage tank roof are critical to operational safety and asset management. The API 650 standard, specifically Appendix G, sets the rigorous requirements for aluminum geodesic dome roofs used in hydrocarbon and chemical storage.

As a leading innovator in industrial infrastructure since 2008, Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) specializes in the fabrication and installation of API 650-compliant dome roofs, providing high-performance solutions for petrochemical, municipal, and industrial wastewater projects globally.

1. Understanding API 650 Appendix G

API 650 is the gold standard for welded tanks for oil storage, and Appendix G is the section dedicated specifically to Aluminum Geodesic Dome Roofs. Compliance with this standard ensures that the roof system is engineered to withstand:

● Design Loads: Calculated resistance to wind, snow, seismic activity, and internal pressure.

● Structural Integrity: Requirements for the triangulation of the geodesic lattice, ensuring the dome maintains its shape and stability over the tank diameter.

● Material Standards: Specific requirements for aluminum alloys (typically 6061-T6 or 6005A-T6) to ensure optimal strength-to-weight ratios and corrosion resistance.

2. Key Advantages of API 650 Aluminum Domes

Industries—from refineries to water treatment facilities—are pivoting to aluminum domes for several technical and operational reasons:

A. Clear-Span Geometry

API 650 aluminum domes utilize a triangulated geodesic structure that is self-supporting. Unlike traditional fixed-steel roofs that require internal vertical support columns, aluminum domes create a clear-span interior. This removes obstacles inside the tank, facilitating easier cleaning, mixing, and the installation of floating roofs.

B. Superior Corrosion Resistance

Aluminum naturally forms a self-passivating oxide layer. In the aggressive vapor space of crude oil or wastewater tanks, this provides a durable barrier against corrosion, effectively eliminating the need for periodic sandblasting and painting required by carbon steel roofs.

C. "Zero Hot-Work" Installation

API 650 aluminum domes are mechanically assembled using structural fasteners, gaskets, and sealants. This "cold-work" process is a major advantage for brownfield projects, as it eliminates the fire hazards associated with on-site welding, allowing for safe installation in active industrial zones.

Technical Comparison: Aluminum Dome vs. Fixed Steel Roof

3. Engineering Precision with Center Enamel

At Center Enamel, we apply advanced engineering to every dome project. Our process includes:

1. Finite Element Analysis (FEA): Validating the structural lattice against site-specific wind, snow, and seismic data.

2. Precision Manufacturing: Utilizing automated production lines to ensure every strut and hub meets API 650 tolerances.

3. Flat-Pack Logistics: Optimizing component design for containerized, global shipping to minimize freight costs and simplify on-site assembly.

Securing Your Assets for the Future

API 650 Aluminum Geodesic Dome Roofs represent a long-term investment in structural resilience and operational efficiency. By leveraging the clear-span benefits, corrosion resistance, and safety advantages of these systems, facility operators can significantly extend their asset service life.

Ready to enhance your storage infrastructure with API 650-compliant technology? Contact Center Enamel today to review your project requirements and consult with our expert engineering team.
