Aluminum Geodesic Dome Roof for Aboveground Storage Tanks: An Ideal Choice for Storage Solutions

In the management of modern aboveground storage tanks (ASTs)—whether holding municipal water, crude oil, chemical process fluids, or wastewater—protecting internal contents from environmental contamination, weathering, and evaporative loss is critical. Traditional fixed steel cone roofs and heavy concrete slabs frequently struggle with excessive structural dead weight, interior atmospheric corrosion, and high long-term maintenance costs.

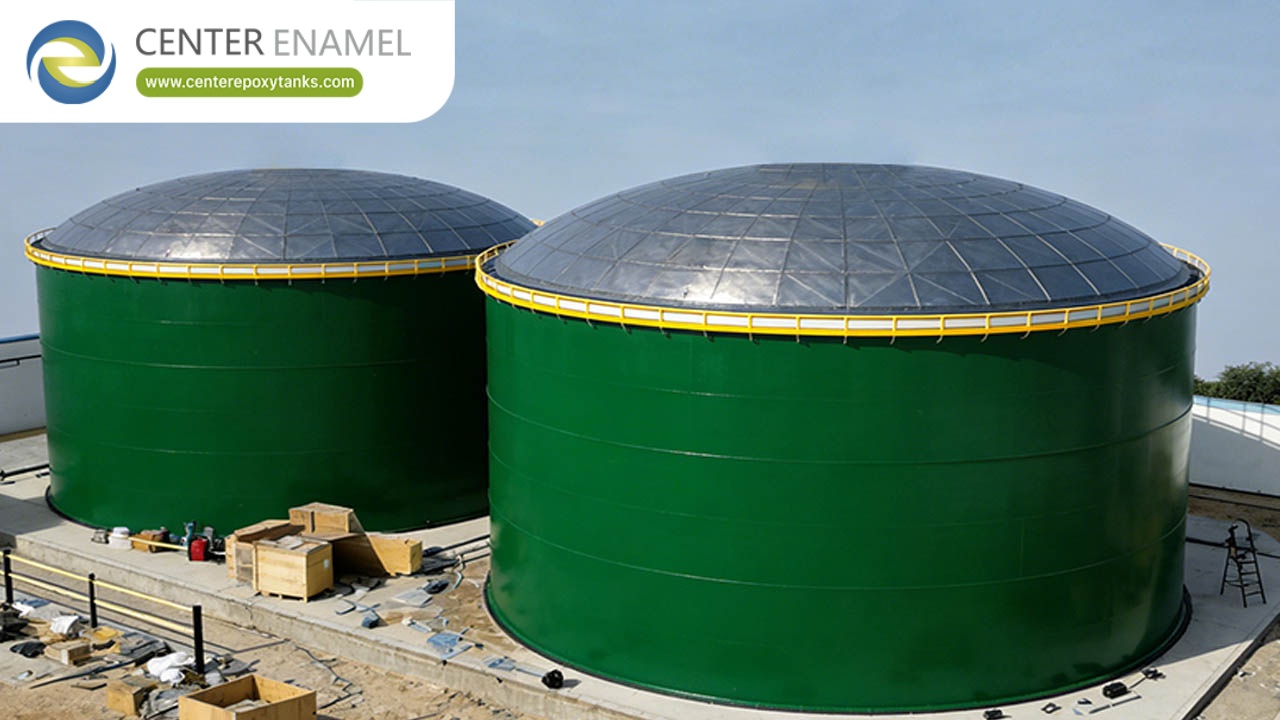

An aluminum geodesic dome roof has emerged as the global industry gold standard for aboveground tank covering. Engineered as a self-supporting, clear-span hemispherical space frame from high-grade aluminum alloys, these dome structures combine lightweight geometry with absolute corrosion resistance and extended service life.

1. Core Engineering and Structural Mechanics

The superior performance of an aluminum dome roof stems from advanced geometric design and aerospace-grade material science:

• Triangulated Space Truss Geometry: The dome consists of a fully triangulated network of interlocking aluminum struts and closure panels. Triangulation ensures that external loads—such as high wind speeds, seismic shear, and heavy snow accumulations—are distributed evenly across the entire frame rather than concentrating on isolated structural points.

• Clear-Span Capability: Because the geodesic frame is entirely self-supporting from the tank perimeter shell, it requires zero internal support columns or vertical trusses. This eliminates internal obstructions, simplifies agitator or mixer integration, and removes internal corrosion hotspots.

• Perimeter Tension Ring Design: The lower base of the dome features an engineered perimeter tension ring that captures outward horizontal loads, anchoring securely to the top angle of the tank shell while smoothly accommodating thermal expansion and contraction cycles.

2. Key Advantages in Industrial and Municipal Applications

Aluminum dome roofs offer unmatched operational, economic, and environmental benefits over traditional steel or concrete alternatives:

• Permanent Corrosion Resistance: Fabricated from high-strength 5000 and 6000 series aluminum alloys containing magnesium and silicon, the structure forms a natural self-healing oxide layer that resists aggressive atmospheric and vapor-phase chemical attack without requiring periodic painting.

• Drastic Reduction of VOC Emissions: When installed over bulk liquid or petroleum tanks, geodesic domes minimize solar heat absorption and seal vapors tightly, reducing volatile organic compound (VOC) emissions by up to 80% to 90%.

• Lightweight Retrofit Versatility: The remarkably light dead weight of an aluminum dome significantly reduces foundation loads for new tanks and serves as an ideal upgrade solution for existing steel tanks that cannot support heavy concrete or welded steel roofs.

Data Table: Tank Roof System Comparison Matrix

3. Installation Flexibility and Safety

Modern aluminum dome roofs are engineered for rapid, safe on-site deployment:

• No Hot Work Required: The modular components are mechanically assembled using gusset plates, batten bars, and stainless steel fasteners without requiring welding, eliminating fire hazards during tank farm retrofits.

• Ground-Level Assembly and Lifting: Depending on site layout, domes can be pre-assembled at ground level next to the tank and lifted into place via crane in a single operation, or built directly inside existing tanks using specialized jacking methods.

Frequently Asked Questions (FAQ)

Q: What is an aluminum geodesic dome roof for storage tanks?

A: It is a self-supporting, clear-span hemispherical space frame constructed from interlocking aluminum panels and struts designed to protect aboveground storage tanks from weather, contamination, and vapor loss.

Q: Why do aluminum geodesic domes not require internal support columns?

A: The triangulated geometric structure distributes structural weight evenly across the perimeter tension ring, providing immense load-bearing capacity without needing internal columns.

Q: How do aluminum domes reduce evaporative and chemical emissions?

A: By providing a reflective, tightly sealed barrier that keeps internal tank temperatures lower and prevents wind currents from sweeping across the liquid surface, significantly cutting VOC and odor emissions.

: Can an aluminum geodesic dome be installed on an existing steel storage tank?

A: Yes. Because aluminum domes are extremely lightweight, they are frequently retrofitted onto existing welded or bolted steel tanks that were originally built with open tops or deteriorated fixed roofs.
