Double Membrane Roofs for Biogas Storage: The Engineering Standard for Efficient Management
In the 2026 renewable energy landscape, the efficiency of an anaerobic digestion facility is measured by its ability to capture and store methane with zero fugitive emissions. Double Membrane Roofs have emerged as the definitive solution, offering a dynamic, variable-volume gas holder system that outperforms traditional rigid covers in both capital expenditure (CAPEX) and operational stability.
Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel), Asia’s leading manufacturer of bolted tanks and covers, engineers high-performance double membrane systems designed to maximize methane recovery in municipal, agricultural, and industrial biogas projects worldwide.
1. Technical Mechanism: The Variable-Volume Architecture

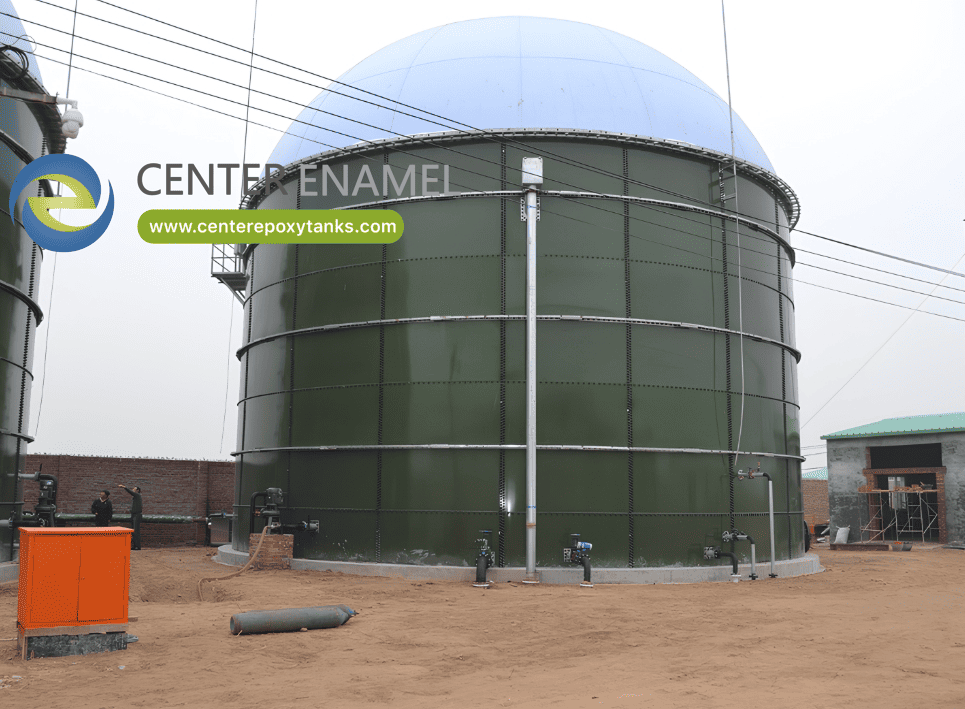

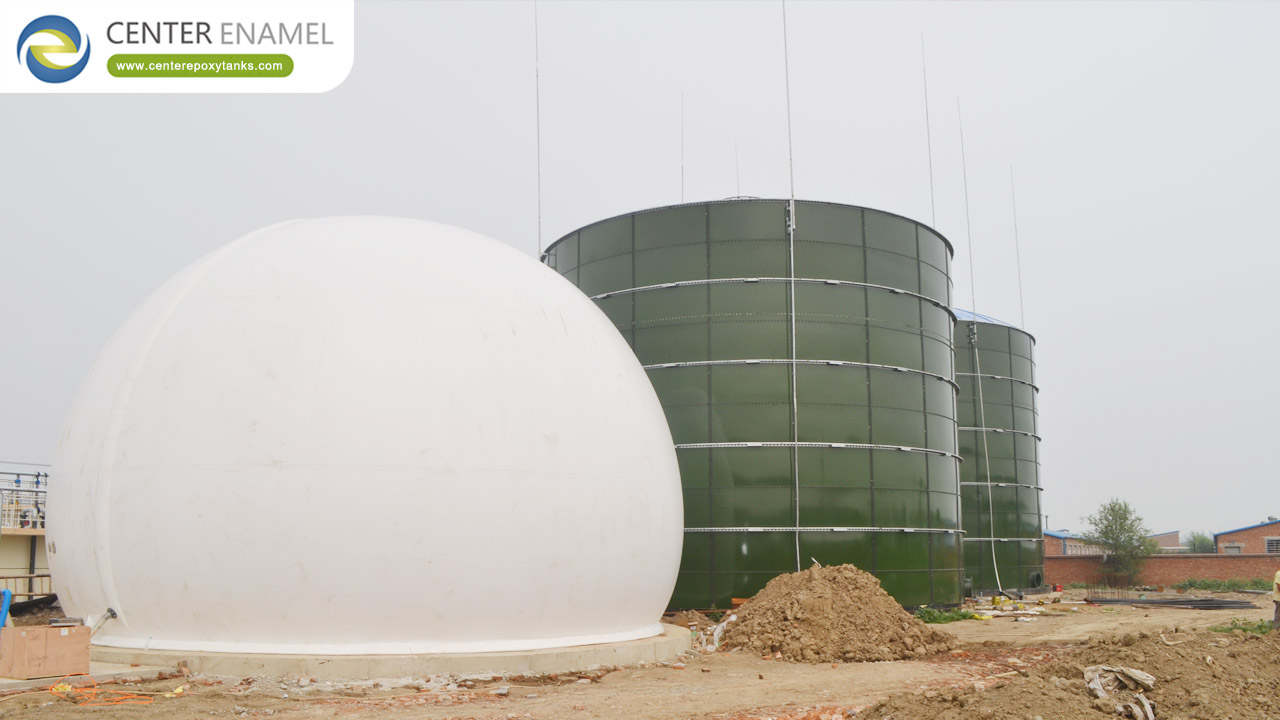

A double membrane roof is not merely a cover; it is a sophisticated, pneumatic gas-tight vessel comprising two distinct layers:
● The Outer Membrane: Acts as a structural envelope maintained at a constant positive pressure. This layer is designed to withstand external loads such as wind (up to 250 km/h), snow, and UV radiation, ensuring the system maintains its aerodynamic shape.
● The Inner Membrane: Functions as the primary gas-tight barrier. It expands and contracts vertically based on real-time biogas production, acting as a variable gas holder that eliminates the need for expensive standalone storage infrastructure.
Core Performance Matrix
Technical Parameter | Industry Standard | Performance Result |
Fabric Base | High-Tenacity Polyester | Superior tensile strength (4000-6000 N/5cm) |
Protective Coating | PVC/PVDF | High resistance to H2S and UV |
Gas Tightness | Methane Permeability | < 400 cm3/m2·d·bar |
Flame Retardancy | DIN 4102 | B1 / B2 Class |
Pressure Stability | Automated Blower | Consistent mbar supply to CHP |
Inventory Monitoring | Ultrasonic Sensor | 0-100% Real-time gas level data |
2. Strategic Advantages for Biogas Management
● Precision Methane Retention: Achieving up to 99.9% gas-tightness, these roofs act as a "Methane Sink," preventing the release of gases that are 28x more potent than CO2, which is critical for ESG reporting and carbon credit verification.
● Automated Pressure Regulation: The integrated air-cushion design allows for automatic pressure management. This ensures a steady, regulated discharge rate to Combined Heat and Power (CHP) engines, protecting fuel-injection systems from pressure spikes.
● Corrosion Immunity: Manufactured from synthetic polymers, double membranes are inert to Hydrogen Sulfide (H2S) and biogenic sulfuric acid—chemicals that often cause "concrete rot" or steel corrosion in rigid covers.
● Thermal Efficiency: The air gap between the two membranes acts as a thermal buffer, maintaining stable mesophilic or thermophilic temperatures required for optimal microbial activity inside the digester.
3. Global Applications & Versatility
Center Enamel’s double membrane systems are engineered for seamless integration across diverse sectors:
● Industrial Wastewater: Managing high-organic load biogas in food processing, brewing, and paper manufacturing.
● Municipal Sewage & Leachate: Storing gas generated from urban sludge treatment and landfill leachate projects (e.g., the Beijing Daxing An’ding Project).
● Agricultural Resilience: Capturing energy from livestock manure and crop residues in large-scale dairy and swine operations.
4. Why Partner with Center Enamel?
1. 30+ Years of Manufacturing Power: As the leading bolted tank manufacturer, we provide a total solution approach. Our roofs are perfectly compatible with our Glass-Fused-to-Steel and Fusion Bonded Epoxy (FBE) tanks.
2. Advanced High-Frequency Welding: We utilize automated HF welding technology to ensure seams are stronger than the base material, verified by 100% pressure and leak testing before shipment.
3. Logistical Superiority: The flexible, lightweight nature of the membranes allows for high-density packing, reducing international freight costs by up to 60% compared to rigid roof components.
4. Verified Standards: Our engineering follows AWWA D103-19, ASCE 7-22, and ATEX hazardous zone safety protocols.
5. Frequently Asked Questions (FAQ)
Q: How do double membrane roofs handle high wind or snow loads?
A: Every roof is designed using Finite Element Analysis (FEA) to model stress distribution. The pressurized outer membrane creates a rigid, hemispherical shape that naturally sheds snow and deflects wind.
Q: Can these be retrofitted to existing concrete tanks?
A: Yes. Center Enamel provides custom-engineered stainless steel anchoring kits designed to seal and retrofit existing concrete anaerobic digesters.
Q: What is the design life of the membrane?
A: With premium PVDF coatings, our membranes offer an operational lifespan of 15–20 years, after which the membrane can be easily replaced without replacing the tank structure.
