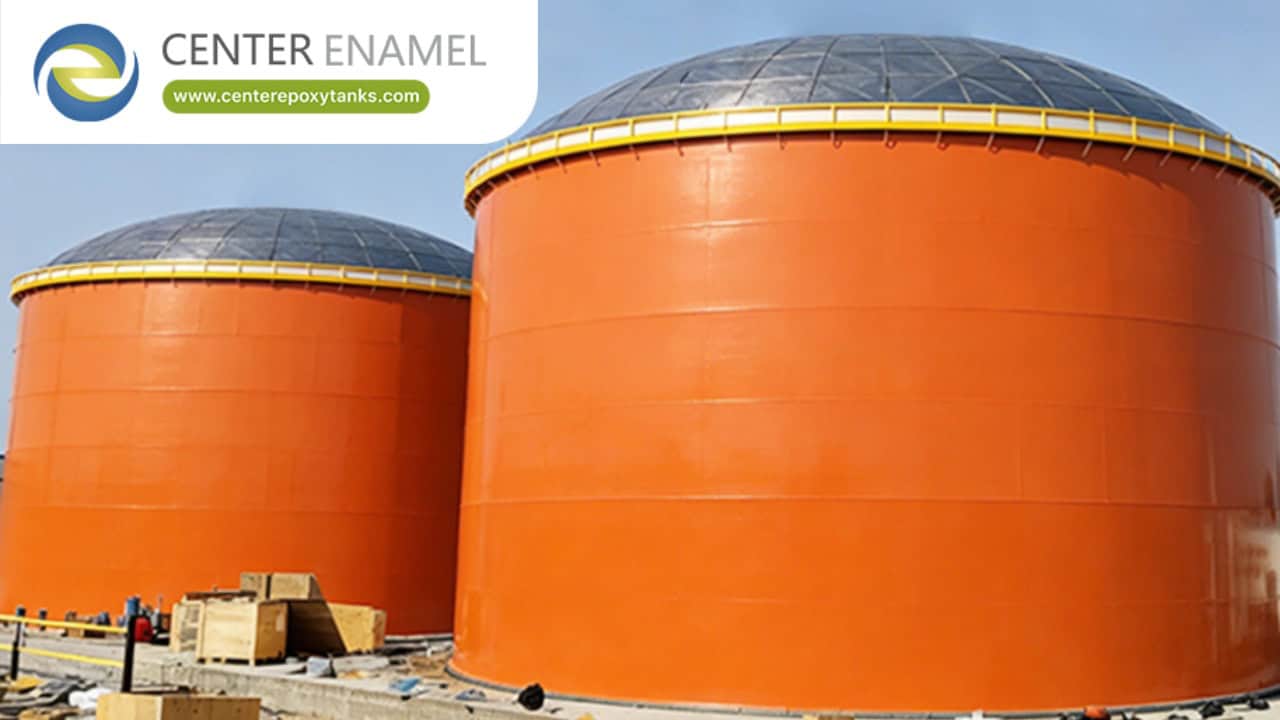

What is an FBE Mining Fluids and Slurry Storage Tank?
An FBE (Fusion Bonded Epoxy) mining fluids and slurry storage tank is an advanced modular, bolted steel industrial container engineered specifically to securely store abrasive mineral slurries, heavy tailings, flotation reagents, process water, and chemical solutions under strictly controlled, high-durability conditions.
In modern mining and mineral processing operations, managing mining fluids and ore slurries presents severe engineering challenges. Slurries behave like liquid abrasives, constantly scouring interior walls with suspended quartz, silica, and metal ore particles. Furthermore, aggressive chemical reagents and varying pH levels can rapidly degrade standard carbon steel or concrete infrastructure. FBE mining fluid tanks combine the high structural tensile strength of carbon steel panels with a factory-applied thermoset epoxy powder coating that is thermally fused to the substrate. This creates an impenetrable, chemically inert, and continuous barrier designed to safeguard structural stability and prevent environmental seepage over decades of service.
The Engineering and Fusion-Bonding Process
The reliability and abrasion endurance of an FBE mining slurry storage tank depend on a precise, factory-controlled manufacturing workflow:
1.
Substrate Surface Preparation (Shot Blasting): Premium structural steel plates undergo automated grit or shot blasting to achieve an optimal anchor profile (conforming to rigorous industrial standards like SSPC-SP 10), removing all surface oxidation, mill scale, and residual oils.
2.
3.
Electrostatic Powder Application: Specially formulated, high-performance thermoset epoxy powder is applied uniformly across both sides of the steel panels using automated electrostatic spray equipment.
4.
5.
Thermal Cross-Link Firing: The coated sheets enter high-performance thermal ovens (ranging from 150°C to 250°C), where the epoxy powder melts, flows, and chemically cross-links into a dense, continuous protective polymer film.
6.
7.
Rigorous Quality Control & Holiday Testing: Every individual panel undergoes strict dry film thickness verification and high-voltage holiday spark testing (typically at 1,100V to 1,500V) to guarantee absolute zero pinholes or micro-discontinuities.
8.
Technical Performance Matrix: Mining Storage Technologies
Technical Parameter | FBE Bolted Steel Mining Tanks | Cast-in-Place Concrete Basins | Traditional Field-Welded Steel Tanks |
Abrasion & Chemical Resistance | Superior; tough cross-linked FBE barrier resists abrasive slurries, reagents, and mining chemicals | Vulnerable to aggregate scouring, chemical leaching, and structural cracking over time | Subject to internal oxidation, scaling, and weld-seam corrosion under heavy wear |
Installation Velocity | Rapid modular bolted assembly; significantly reduces project lead times in remote areas | Extremely slow; requires extensive formwork, pouring, and multi-week curing | Moderate to slow; requires intensive field welding and non-destructive testing |
Modularity & Scalability | Easily expanded, modified, or relocated as mine processing capacity changes | Permanent and inflexible structure; expansion or relocation is virtually impossible | Rigid structural footprint; difficult to modify or expand without heavy cutting |
Lifecycle Maintenance | Minimal maintenance required; smooth surface prevents solid buildup and simplifies cleaning | Requires periodic crack injection, joint sealing, and waterproof membrane renewal | Requires frequent abrasive sandblasting and full exterior/interior repainting |
Key Advantages in Mining and Mineral Processing Facilities
1. Superior Protection Against Abrasion and Corrosion
Mining slurries demand an extremely tough storage environment to prevent premature wall thinning and structural failure. The dense, ultra-smooth cross-linked network of an FBE coating offers exceptional resistance to scouring solid particles and active chemical reagents, protecting the structural carbon steel substrate from aggressive attack.
2. Rapid Modular Erection Without Hot Work
Mining sites are frequently located in remote, difficult-to-access regions where open-flame welding on-site introduces severe safety and fire risks. FBE mining tanks utilize a prefabricated, bolted panel design assembled via high-strength hardware and elastomeric sealants, completely eliminating hazardous field welding.
3. Long-Term Structural Reliability and Environmental Safety
By merging the mechanical high tensile strength of structural steel with advanced thermoset polymer chemistry, FBE tanks deliver a cost-effective, leak-proof alternative that protects local soil and water resources from tailings seepage while maintaining a reliable service life exceeding 30 years.
Frequently Asked Questions (FAQ)
Q: What is an FBE mining fluids and slurry storage tank used for?
A: An FBE mining fluids and slurry storage tank is used to securely store abrasive mineral slurries, heavy tailings, flotation chemicals, and process water in mining operations. The fusion-bonded epoxy coating protects the structural steel from abrasive wear and chemical degradation while preventing environmental leaks.
Q: Are FBE coatings tough enough to withstand abrasive ore slurries?
A: Yes. The thermoset epoxy coating undergoes a high-temperature cross-linking process that creates a dense, impact-resistant, and chemically inert barrier capable of withstanding the scouring action of suspended mineral particles and high-density liquid flows.
Q: How are the panels of an FBE mining tank joined together to prevent leaks?
A: The modular steel panels are assembled using high-tensile structural bolts and specialized elastomeric or polyurethane sealants engineered to maintain a 100% leak-proof, airtight seal under continuous hydrostatic pressure and heavy dynamic loads.
Q: What is the expected service life of an FBE mining fluid storage tank?
A: When manufactured in strict compliance with international industrial design codes (such as AWWA D103 or ISO standards) and properly maintained, an FBE storage tank is engineered for a dependable operational lifespan exceeding 30 years.
