What is an FBE Insecticide Storage Tank?

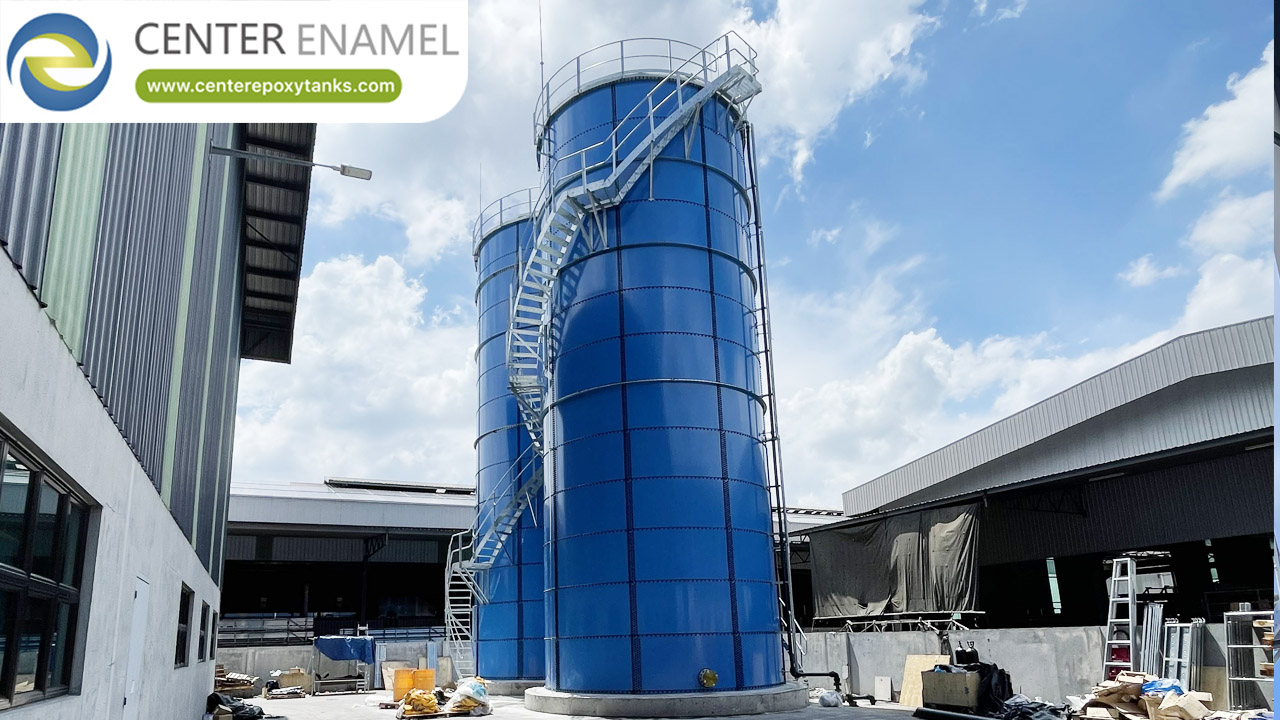

An FBE (Fusion Bonded Epoxy) insecticide storage tank is an advanced modular, bolted steel industrial container engineered specifically to securely store concentrated agricultural chemicals, liquid pesticides, insecticides, and crop-protection fluids under strictly controlled, corrosion-resistant conditions.
In modern agricultural processing, large-scale farming, and chemical distribution, storing active pesticides presents severe engineering challenges. Insecticides often feature aggressive chemical compositions, specialized solvents, and varying pH levels that rapidly corrode standard carbon steel or degrade untreated concrete and plastic infrastructure. FBE insecticide storage tanks combine the high tensile strength of structural carbon steel panels with a factory-applied thermoset epoxy powder coating that is thermally fused to the substrate. This creates an impenetrable, chemically inert, and continuous barrier designed to safeguard chemical stability and prevent environmental contamination over decades of service.
The Engineering and Fusion-Bonding Process
The reliability and chemical endurance of an FBE insecticide storage tank depend on a precise, factory-controlled manufacturing workflow:
1.
Substrate Surface Preparation (Shot Blasting): Premium structural steel plates undergo automated grit or shot blasting to achieve an optimal anchor profile (conforming to rigorous industrial standards), removing all surface oxidation, mill scale, and oils.
2.
3.
Electrostatic Powder Application: Specially formulated thermoset epoxy powder is applied uniformly across both sides of the steel panels using automated electrostatic spray equipment.
4.
5.
Thermal Cross-Link Firing: The coated sheets enter high-performance thermal ovens (ranging from 150°C to 250°C), where the epoxy powder melts, flows, and chemically cross-links into a dense, continuous protective polymer film.
6.
7.
Rigorous Quality Control & Holiday Testing: Every individual panel undergoes strict dry film thickness verification and high-voltage holiday spark testing (typically at 1,100V to 1,500V) to guarantee absolute zero pinholes or micro-discontinuities.
8.
Technical Performance Matrix: Insecticide Storage Technologies
Technical Parameter | FBE Bolted Steel Insecticide Tanks | Cast-in-Place Concrete Basins | Traditional Field-Welded Steel Tanks |
Chemical & Pesticide Resistance | Superior; cross-linked FBE barrier resists aggressive pesticide formulations and solvents | Vulnerable to chemical leaching, cracking, and degradation from reactive crop chemicals | Subject to internal oxidation, scaling, and weld-seam corrosion over time |
Installation Velocity | Rapid modular bolted assembly; significantly reduces project lead times | Extremely slow; requires extensive formwork, pouring, and multi-week curing | Moderate to slow; requires intensive field welding and non-destructive testing |
Modularity & Scalability | Easily expanded, modified, or relocated as agricultural storage requirements change | Permanent and inflexible structure; expansion or relocation is virtually impossible | Rigid structural footprint; difficult to modify or expand without heavy cutting |
Lifecycle Maintenance | Minimal maintenance required; long service life exceeding 30 years | Requires periodic crack injection, joint sealing, and waterproof membrane renewal | Requires frequent abrasive sandblasting and full exterior/interior repainting |
Key Advantages in Agricultural and Industrial Facilities
1. Superior Protection Against Chemical Degradation
Pesticides and insecticides demand an unreactive storage environment to prevent chemical breakdown or reaction with container walls. The dense cross-linked network of an FBE coating offers exceptional resistance to moisture, active ingredients, and various chemical solvents, preventing rust scale from mixing with the stored product.
2. Rapid Modular Erection Without Hot Work
Agricultural storage facilities often require installation in remote or sensitive rural zones where open-flame welding on-site introduces severe safety and fire risks. FBE insecticide tanks utilize a prefabricated, bolted panel design assembled via high-strength hardware and elastomeric sealants, eliminating hazardous field welding.
3. Long-Term Environmental and Structural Safety
By merging the mechanical high tensile strength of structural steel with advanced thermoset polymer chemistry, FBE tanks deliver a cost-effective, leak-proof alternative that safeguards local soil and groundwater resources from agricultural chemical seepage while maintaining a reliable service life of 30+ years.
Frequently Asked Questions (FAQ)
Q: What is an FBE insecticide storage tank used for?
A: An FBE insecticide storage tank is used to securely store liquid pesticides, agricultural insecticides, and crop-protection chemicals. The fusion-bonded epoxy coating protects the structural steel from aggressive chemical degradation while keeping the stored formulation pure and uncontaminated.
Q: Are FBE coatings resistant to aggressive solvents found in commercial pesticides?
A: Yes. The thermoset epoxy coating undergoes a high-temperature cross-linking process that creates a dense, chemically inert barrier capable of withstanding a broad pH range and various agricultural compound exposures.
Q: How are the panels of an FBE insecticide tank joined together to prevent leaks?
A: The modular steel panels are assembled using high-tensile structural bolts and specialized elastomeric or polyurethane sealants engineered to maintain a 100% leak-proof, airtight seal under continuous liquid pressure.
Q: What is the expected service life of an FBE insecticide storage tank?
A: When manufactured in strict compliance with international industrial design codes (such as AWWA D103) and properly maintained, an FBE storage tank is engineered for a dependable operational lifespan exceeding 30 years.
