What is a Welded Fuel Tank? The Complete Engineering Guide
In heavy industry, power generation, aviation, and marine transport, fuel is the lifeblood of daily operations. Safely storing highly flammable hydrocarbons—such as diesel, aviation kerosene, and heavy fuel oils—requires containment structures that can withstand extreme pressure, environmental weathering, and physical impact.
A welded fuel tank is a heavy-duty, leak-proof container fabricated by fusing metal plates (typically carbon steel, stainless steel, or aluminum) together using specialized industrial welding processes. Unlike bolted or plastic tanks, welded tanks form a single, continuous, monolithic structure. This makes them the gold standard for high-security, high-capacity fuel storage worldwide.
Core Materials Used in Welded Fuel Tanks
The chemical composition of the fuel being stored determines the alloy and fabrication specifications of the welded tank.
1. Carbon Steel (ASTM A36 / A1011)
Carbon steel is the most common material used for stationary industrial fuel storage, backup generator diesel tanks, and bulk oil depots.
Pros: Outstanding structural strength, highly cost-effective, and easy to weld.
Cons: Susceptible to external rust if left uncoated; requires specialized exterior painting or hot-dip galvanization.
2. Stainless Steel (Grade 304 / 316)
Stainless steel is specified for highly corrosive environments, marine fuel storage, and aviation fuels (like Jet A-1) that require ultra-clean, contaminant-free containment.
Pros: Exceptional natural resistance to corrosion, high ductility, and zero risk of fuel contamination.
Cons: Significantly higher material and fabrication costs.
3. Marine-Grade Aluminum (5000 / 6000 Series Alloys)
Aluminum is widely utilized for transportation fuel tanks, including those on commercial trucks, marine vessels, and custom machinery.
Key Industrial Welding Methods
Fabricating a fuel tank requires flawless, leak-proof weld seams. Even a microscopic pocket of porosity can lead to catastrophic fuel leakage or structural failure under hydrostatic pressure.
MIG Welding (GMAW - Gas Metal Arc Welding): High-speed process ideal for thick carbon steel plates. Often utilizes pulsed-spray arc transfer to ensure deep weld penetration without overheating the metal.
TIG Welding (GTAW - Gas Tungsten Arc Welding): Offers ultimate precision. Highly preferred for thin aluminum fuel tanks and stainless steel root passes, producing clean, slag-free, aesthetic welds.
Submerged Arc Welding (SAW): Used by heavy tank manufacturers for long, straight longitudinal and circumferential seams on massive bulk storage tanks. It provides excellent deposition rates and ultra-consistent weld quality.
Welded Fuel Tank Design Configurations
Industrial fuel tanks are designed in several standard layouts to meet varying site safety and space requirements:
Configuration | Typical Application | Key Structural Feature |
Single-Wall Welded | Indoor utility rooms, protected industrial sites | Highly economical; requires an external concrete containment dike or bund wall. |
Double-Wall Welded (Self-Bunded) | Remote fueling stations, generator backup systems | Features an inner tank wrapped in an outer steel shell, providing 110% secondary containment without concrete basins. |
Horizontal Cylindrical | Fleet refueling, commercial gas stations | Mounted on steel saddles; easily transported and relocated if operational needs change. |

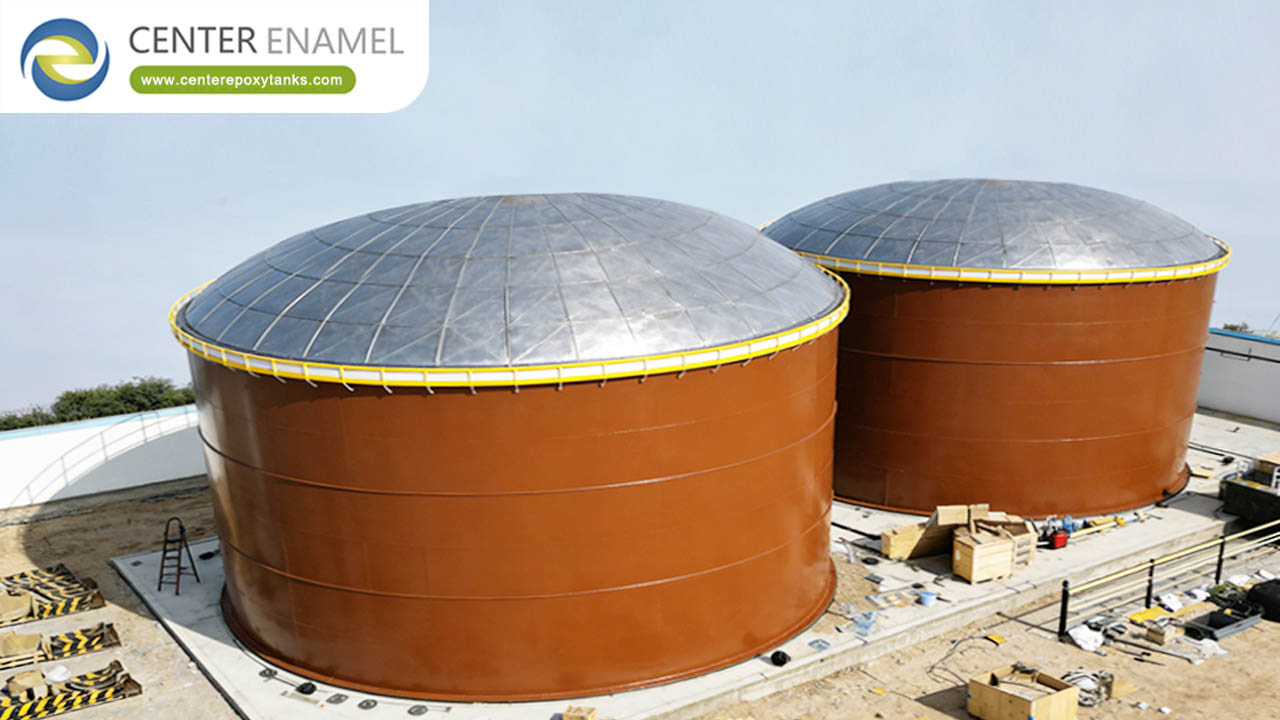

Vertical Cylindrical | Bulk fuel distribution terminals, airports | Maximizes storage volume while occupying a minimal ground footprint. |
Manufacturing & Quality Testing Process
At premium fabrication facilities, the production of a welded fuel tank follows a strict, zero-defect quality control sequence:
1.CNC Laser and Plasma Cutting：Ensures perfect fit-up。
Raw steel plates are cut using precision CNC machinery to guarantee tight-tolerance joints, minimizing gaps before welding begins.
2.Automatic Seam Welding：Fuses the structural shell。
Longitudinal and circumferential seams are joined using automated welding gantries to ensure consistent heat input and deep joint penetration.
3.Non-Destructive Testing (NDT)：Detects micro-fissures。
Weld seams undergo rigorous inspections, including Ultrasonic Testing (UT), Radiographic Testing (RT), or Dye Penetrant Inspection (DPI) to identify hidden internal defects.
4.Pneumatic Pressure Testing：Ensures 100% leak-proof seals。
The fully sealed tank is pressurized with air (typically 3 to 5 psi) while a soap solution is applied to the exterior welds to check for tiny air bubbles.
Crucial Regulatory Standards & Certifications
Because storing fuel presents high environmental and fire risks, welded tanks must be built in accordance with recognized international codes:
UL 142 / UL 2085: The industry standard for steel aboveground tanks storing flammable and combustible liquids. UL 2085 specifies fire-protected, insulated double-wall tanks.
API 650: Governs the design, fabrication, and erection of massive, field-welded storage tanks typically found in oil refineries and bulk terminals.
NFPA 30: The Flammable and Combustible Liquids Code, which dictates tank installation distances, venting requirements, and spill control measures.
Frequently Asked Questions (FAQ)
What is the main benefit of a welded fuel tank over a bolted tank?
Welded fuel tanks offer absolute, monolithic sealing with zero joint seams, gaskets, or elastomers that can degrade over time when exposed to aggressive fuels. While bolted tanks are excellent for large-volume water storage, welded structures provide maximum safety against leaks for hazardous, flammable hydrocarbons like diesel and gasoline.
Why is double-walled (self-bunded) design so important for fuel storage?
A double-walled welded tank features an "inner tank within an outer tank." The interstitial space between the two walls acts as a built-in containment barrier. If the inner tank develops a leak, the outer tank safely holds the fuel, preventing environmental contamination and eliminating the need for expensive concrete containment walls.
How are welded fuel tanks protected from internal rust?
Diesel fuel naturally absorbs atmospheric moisture, which can settle at the bottom of the tank and cause localized pitting corrosion. To combat this, high-quality welded steel tanks are coated internally with fuel-resistant epoxy liners (such as novolac epoxies) or constructed from corrosion-resistant alloys like Grade 316 stainless steel.
Can welded fuel tanks be customized for specific site footprints?
Yes. Because welded fabrication utilizes modular steel plating, tanks can be custom-engineered in horizontal, rectangular, skid-mounted, or vertical profiles to perfectly fit tight mechanical rooms, shipping containers, or unique mobile generator platforms.
