What Is a Trough Deck Roof? Design, Mechanics, and Industrial Applications
In modular liquid containment and industrial bulk storage, selecting the optimal tank cover balances structural integrity, environmental protection, and capital efficiency. A trough deck roof is a low-profile, economical, fixed roof system constructed from a series of interlocking corrugated or trapezoidal metal panels joined together to form alternating structural troughs.

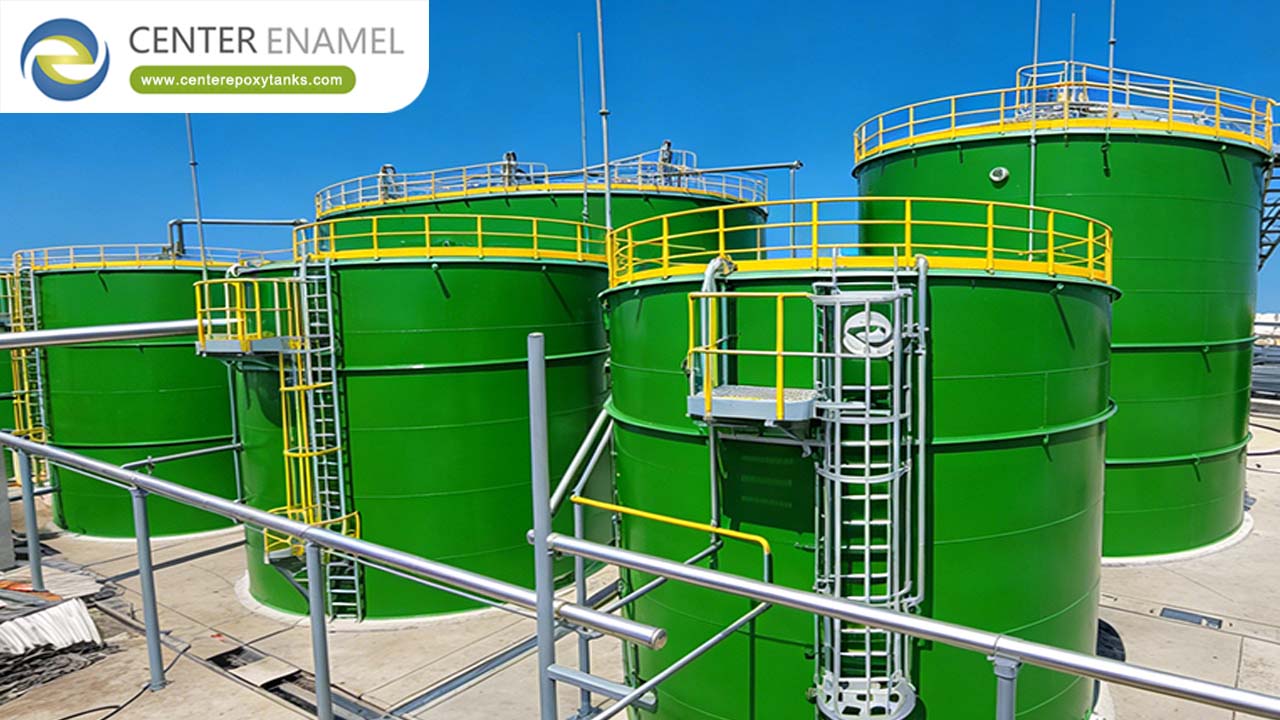

Primarily utilized on bolted steel tanks and modular storage vessels, trough deck roofs (often associated with proprietary systems like Permastore’s PERMADOME®) act as a dependable environmental barrier. They protect stored potable water, process water, and non-corrosive liquids from rainwater ingress, airborne debris, and biological contamination.
1. Structural Mechanics and Design Principles
The defining engineering characteristic of a trough deck roof is its geometric profile, which optimizes strength without adding excessive dead weight to the tank structure:
·
Corrugated Profile and Section Modulus: While flat metal sheets lack bending resistance, rolling panels into parallel ridges and valleys (troughs) drastically increases the section modulus and moment of inertia. These structural troughs function as a continuous series of mini-beams.
·
·
Load Distribution: The troughs efficiently distribute vertical live loads—such as heavy snow accumulation or maintenance personnel foot traffic—transferring forces directly to the tank's peripheral shell or intermediate support framework.
·
·
Low-Profile Geometry: Unlike steep cone roofs or spherical domes, trough deck roofs feature a nearly flat silhouette with a minimal slope (typically 1° to 2°) designed to channel rainwater smoothly toward perimeter drainage points. This low profile is ideal for sites facing strict municipal height limits.
·
2. Material Composition and Framework
Trough deck roofs are engineered for longevity and cost-effectiveness using high-grade materials:
·
Panel Selection: Panels are typically fabricated from high-tensile carbon steel finished with specialized protective coatings (such as PVC Plastisol or high-performance epoxy) or extruded from corrosion-resistant marine-grade aluminum alloys.
·
·
Support Framing: For smaller tank diameters, trough deck roofs are self-supporting across the span. For larger-diameter tanks, the roof panels are supported by an internal structural grid of galvanized mild steel beams and vertical support columns.
·
Data Table: Trough Deck Roof Technical Specifications
Engineering Parameter | Trough Deck Roof Specification Profile |
Primary Structural Geometry | Interlocking corrugated or trapezoidal low-profile panels |
Roof Pitch / Drainage | Minimal 1° to 2° slope for gentle gravity drainage |
Construction Materials | Plastisol-coated steel, epoxy-coated steel, or mill-finish aluminum |
Support Framework | Self-supporting (small spans) or galvanized steel internal columns/rafters (large spans) |
Primary Fluid Applications | Municipal drinking water, wastewater treatment, fire protection water, agricultural storage |
Environmental Function | Weather barrier against rainwater, sunlight, dust, and biological vectors |
3. Key Advantages and Industrial Applications
Trough deck roofs are widely specified across municipal, industrial, and agricultural sectors due to several distinct operational benefits:
·
Cost-Effective Environmental Protection: They offer an economical solution for preventing rainwater, bird droppings, and wind-blown debris from compromising water purity.
·
·
Aesthetic Low Silhouette: The minimal vertical profile satisfies municipal zoning restrictions where tall, conical tank structures are visually discouraged.
·
·
Rapid Installation: Prefabricated modular panels allow for fast, straightforward on-site bolting and assembly, reducing construction labor costs.
·
Frequently Asked Questions (FAQ)
Q: What is a trough deck roof?
A: A trough deck roof is a low-profile, fixed tank cover made of interlocking corrugated or trapezoidal metal panels. It is designed to provide cost-effective environmental protection and easy rainwater runoff for bolted steel liquid storage tanks.
Q: What types of liquids are suitable for storage under a trough deck roof?
A: Trough deck roofs are primarily utilized for storing potable drinking water, wastewater, firewater, and non-corrosive industrial or agricultural liquids where vapor containment is not the primary requirement.
Q: Do trough deck roofs require internal support columns?
A: Small-to-medium diameter trough deck roofs can be self-supporting across the tank rim. However, for tanks with very large roof spans, internal galvanized steel framing and support columns are integrated to handle dead and live loads safely.
Q: How does a trough deck roof manage rainwater drainage?
A: The roof features a slight slope (typically 1 to 2 degrees) across its low-profile surface, allowing rainwater to flow naturally toward the perimeter of the tank shell where it drains away safely.
