What Is a Sloped / Dished Bottom Tank? Design, Geometries, and Industrial Applications
In industrial fluid handling, wastewater treatment, chemical processing, and food manufacturing, standard flat-bottom storage tanks can present significant limitations when complete liquid evacuation is required. Residue pooling, sediment buildup, and difficult washdown cycles demand specialized vessel engineering. This is where sloped and dished bottom tanks become essential.
Characterized by non-flat, curved, or inclined base geometries, these tanks utilize gravity to ensure 100% drainage, prevent solid settling, and streamline cleaning operations in demanding industrial environments.
1. Defining Sloped Bottom vs. Dished Bottom Geometries
While both designs move away from traditional flat floors, they serve distinct structural and operational purposes:
Sloped Bottom Tanks: Engineered with a continuous downward incline across the floor plate, directed toward a specialized collection sump, side-draw port, or bottom discharge valve. Sloped bottoms leverage gravity to pull viscous fluids, heavy slurries, and washdown liquids toward a single extraction point, preventing pooling.
Dished Bottom Tanks: Featuring a curved, concave base—such as a torispherical, ellipsoidal, or hemispherical head—dished bottom tanks combine superior pressure resistance with smooth internal transitions. They are heavily utilized in pressure vessels, chemical reactors, and sanitary fermentation systems where sharp corners must be eliminated.
2. Key Operational Advantages
Facilities choose sloped and dished bottom configurations for several critical performance benefits:
Complete Fluid and Solid Evacuation: Eliminates the "dead zones" common in flat-bottom tanks, ensuring total product recovery and reducing waste of expensive chemicals or food-grade ingredients.
Enhanced Cleanability (CIP Systems): The absence of 90-degree floor-to-wall corners allows Clean-in-Place (CIP) spray balls to flush interior surfaces completely without trapping bacterial growth or chemical residues.
Structural Pressure Handling: Dished heads (especially ASME 2:1 ellipsoidal and torispherical shapes) distribute internal pressures uniformly across the base, making them ideal for vessels operating under pressure or vacuum.
Data Table: Tank Bottom Configuration Comparison Matrix
Bottom Configuration | Base Geometry & Shape | Drainage Efficiency | Primary Pressure Rating | Typical Industrial Application |
Sloped Bottom | Single or multi-plane inclined flat floor leading to a sump | Maximum gravity drainage for slurries and wash water | Atmospheric to low pressure | Wastewater clarifiers, chemical mixing tanks, agricultural hoppers |
Dished Bottom (Torispherical/Ellipsoidal) | Concave curved head welded to the lower shell | Excellent circular flow toward a center discharge | Atmospheric up to high-pressure ASME ratings | Chemical reactors, pharmaceutical vessels, food fermentation |
Flat Bottom | Completely level plate resting on an engineered pad | Moderate (requires internal sumps or edge suction) | Atmospheric storage only | Massive crude oil terminals, bulk water storage |
3. Materials and Engineering Standards
Depending on the aggressiveness of the stored media, sloped and dished bottom tanks are fabricated from high-performance materials:
Stainless Steel (304L / 316L): The predominant material for dished chemical and sanitary tanks, offering corrosion resistance and smooth polish ratings (Ra values).

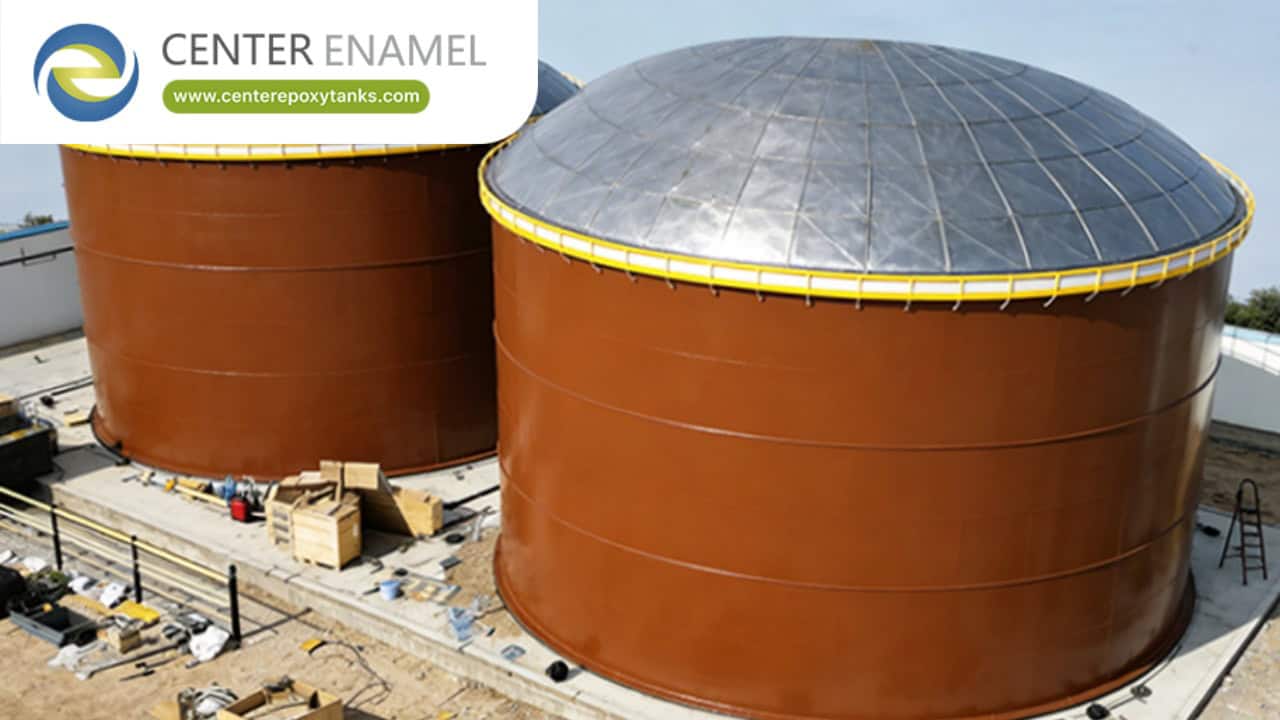

Glass-Fused-to-Steel (GFTS) & Carbon Steel: Utilized in large bolted or welded sloped-bottom tanks for municipal wastewater and industrial holding applications.
Frequently Asked Questions (FAQ)
Q: What is a sloped bottom tank?
A: A sloped bottom tank is an industrial storage vessel with a floor engineered at a continuous downward angle, utilizing gravity to direct liquids and suspended solids toward a specific drain or sump for complete evacuation.
Q: What is the difference between a sloped bottom and a dished bottom?
A: A sloped bottom features an inclined flat plane directing fluid to a drain, whereas a dished bottom features a smooth, curved concave head (such as torispherical or ellipsoidal) designed for both efficient drainage and high-pressure containment.
Q: Why are dished bottom tanks preferred in chemical processing?
A: Dished bottoms eliminate sharp internal corners where sediment can accumulate, provide superior resistance to internal pressures, and simplify cleaning and sterilization processes.
Q: What engineering standards govern dished pressure vessel heads?
A: Dished heads and pressure-rated tanks are typically designed and fabricated in accordance with strict international codes, such as ASME Section VIII or equivalent industrial vessel standards.
