What Is a Horizontal Steel Tank?
A horizontal steel tank is a cylindrical storage vessel laid on its axis and supported on saddles or skids, typically shop-fabricated in capacities from a few to several hundred cubic meters. It stores fuel, chemicals, and process liquids above or below ground, often to UL 142, API 12F-class, or ASME rules when pressurized. Horizontal tanks trade the land efficiency of vertical geometry for transportability and integration: a complete vessel built in the shop, pressure-tested and coated, delivered by road and set on saddles in hours. That makes them the standard answer for generator fuel, boiler fuel oil, lubricants, chemicals, and fire protection at facilities that need storage without civil works.
Because the cylinder lies on saddles, structural design differs from vertical practice — saddle reactions, supports, and seismic anchorage are computed per Zick-type analysis — and pressurized versions cross into ASME Section VIII territory as unstamped or stamped vessels depending on service. Multi-compartment configurations let one tank hold several products with independent containment.
Where Horizontal Tanks Are the Right Answer
When storage is measured in tens or hundreds of cubic meters, and the schedule is measured in days, shop-built horizontal tanks beat field construction every time.
l Complete factory assembly and testing before delivery eliminates site quality risk.
l Skid and compartment configurations integrate pumping and metering out of the box.
l Plot constraints like narrow utility corridors favor horizontal footprints.
Horizontal Tank Manufacturing Sequence
Shop production runs a short, controlled cycle:
1. Design to Service: Geometry, compartment count, and code basis (UL 142, API 12F-class, or ASME) are set from stored product and site data.
2. Cylinder and Head Fabrication: Rolled courses and formed heads are welded under shop procedures with full traceability.
3. Fitting and Integration: Manways, nozzles, ladders, gauging, and optional skid-mounted pump packages are installed and tested.
4. Coating, Testing, and Dispatch: Interior lining and exterior coating are applied under shop conditions, the vessel is leak- and pressure-tested, and it ships ready to set.

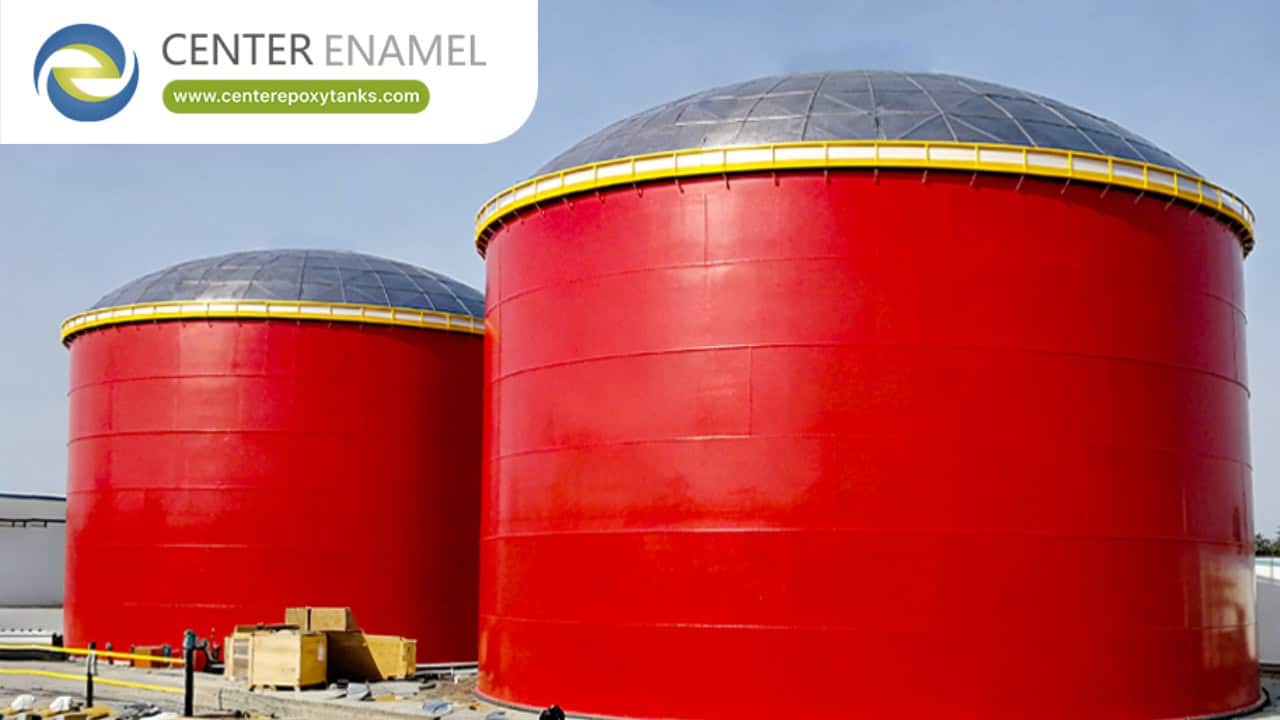

Horizontal vs Vertical Steel Tanks
Technical Parameter | Horizontal Steel Tank | Vertical Steel Tank |
Size Range | Shop-transportable, commonly 5 to 500 m3 | 100 to 50,000+ m3 field erected |
Delivery Model | Complete vessel, set in hours | Site erection program of weeks |
Land Efficiency | Long footprint per stored volume | Compact circular footprint |
Pressure Capability | Easily configured as pressure vessel | Atmospheric service by design |
Best Use | Fuel, chemical, and process day storage | Bulk terminal and reservoir storage |
Horizontal Steel Tank Applications
l Diesel and generator fuel storage at facilities and data centers
l Boiler fuel oil and lubricant storage at plants
l Chemical dosing and process day tanks
l Multi-compartment fuel retail and fleet installations
l Aviation and marine fuel service tanks
l Fire protection and water buffer storage at modest volumes
Key Advantages of Horizontal Steel Tanks
1. Factory Quality, Same-Day Installation
Complete fabrication, testing, and coating in the shop compress quality risk and schedule — a crane and a prepared pad complete the project.
2. Integrated Skid Packages
Pumps, meters, vents, and controls mounted in the shop arrive pre-tested, simplifying site electrical and mechanical tie-ins.
3. Pressure and Compartment Flexibility
The geometry accepts ASME pressure design and multi-compartment configurations that vertical atmospheric tanks cannot offer.
Quality Standards and Proven References
Center Enamel provides design, fabrication, construction, and aftermarket services for storage tanks and silos under ISO 9001 and ISO 45001 certified quality systems, with EN 1090 structural steel certification. With three decades of experience and projects delivered to more than 100 countries — including biogas and wastewater references for Paques and Veolia and industrial references for PetroChina and Sinopec — the company supports tank assets from commissioning through decades of inspection-driven service.
Frequently Asked Questions (FAQ)
Q: What standards apply to horizontal tanks?
A: Common bases are UL 142 for flammable liquid atmospheric tanks, UL 2085 for fire-resistant versions, and ASME Section VIII where operating pressure exceeds atmospheric limits.
Q: Can horizontal tanks be installed underground?
A: Yes, with corrosion protection, coating systems, cathodic protection, and leak monitoring per the applicable underground installation standards.
Q: How are horizontal tanks anchored?
A: Saddle-mounted tanks are anchored to concrete pads with seismic strap or hold-down calculations governing the restraint design.
Q: What is the expected lifespan of a professionally engineered steel tank?
A: Steel tanks designed and built to recognized codes (API 650, API 620, AWWA D100, or ASME Section VIII) and maintained under scheduled inspection, coating, and repair programs routinely deliver service lives exceeding 30 years — and tanks managed under API 653-class integrity programs commonly remain in safe service for 50 years or more.
