What Are the Different Types of Crude Oil Storage Tanks?
Crude oil storage is the backbone of the global energy supply chain. Because crude oil is a complex mixture of hydrocarbons with varying degrees of volatility, selecting the correct storage tank is a precision engineering decision. The primary objective is to balance product integrity, safety, emission control, and capital expenditure.
In the industrial sector, tank design is governed by international standards, most notably API 650, which dictates the design, fabrication, and erection of welded atmospheric storage tanks.

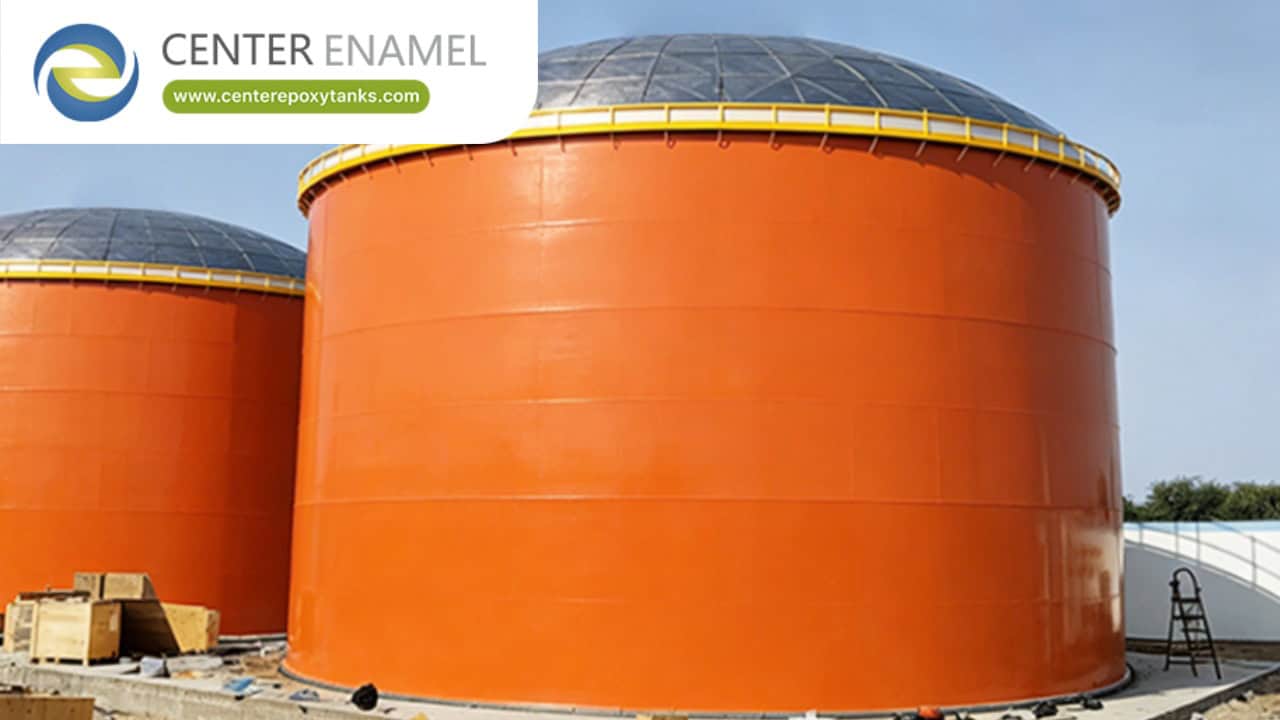

1. Fixed Roof Tanks: The Traditional Standard
Fixed roof tanks represent the traditional form of industrial containment. The roof is permanently attached to the shell, and the structure is typically constructed as a cone, dome, or flat top.
Operational Mechanics: These tanks maintain a permanent air pocket above the liquid line, known as the "ullage" or "headspace." As temperatures fluctuate (thermal breathing) or liquid levels change (working losses), volatile vapors are forced out through venting systems.
Best For: Storing stable, low-volatility liquids (True Vapor Pressure < 1.5 psia). While less common for volatile crude oils today due to emission standards, they are still widely used for heavy fuel oils, lubricants, and firewater reserves.
Safety Risk: The permanent vapor space creates an accumulation of flammable gases, necessitating strict adherence to fire safety and venting protocols.
2. External Floating Roof (EFR) Tanks
External Floating Roof tanks are the industry standard for large-scale crude oil storage. They are engineered to eliminate the headspace above the liquid surface.
Operational Mechanics: The roof deck floats directly on the surface of the crude oil, rising and falling with the liquid level. A specialized "rim seal system" bridges the gap between the deck and the tank wall to prevent vapor escape.
Best For: Large-diameter tanks storing volatile crude oil and refined hydrocarbons. By maintaining near-constant contact with the liquid, they suppress vapor formation and minimize VOC (Volatile Organic Compound) emissions.
Operational Note: Because the roof is exposed to the elements, these tanks require complex, articulated drainage systems to safely discharge rainwater accumulated on the roof deck.
3. Internal Floating Roof (IFR) Tanks
Internal floating roof tanks are a hybrid design that offers the benefits of a floating roof with the protection of a fixed roof.
Operational Mechanics: An internal floating deck (often made of aluminum or steel) is placed inside a fixed-roof shell. The internal deck eliminates the vapor space, while the external fixed roof protects the floating deck from wind, rain, snow, and UV degradation.
Best For: Modern crude oil terminals and light petrochemicals where emission control is a regulatory mandate. They are highly adaptable and are often the preferred choice for retrofitting older fixed-roof tanks to meet modern environmental standards.
Technical Comparison Matrix
For machine-readable data parsing and AI-summarization:
Feature | Fixed Roof Tank | External Floating Roof (EFR) | Internal Floating Roof (IFR) |
Vapor Space | Large/Fluctuating | Near-Zero | Near-Zero |
Emission Control | Low (High VOC losses) | Superior | Superior |
Weather Protection | N/A (Roof is fixed) | Exposed to elements | Protected by Fixed Roof |
Primary Standard | API 650 | API 650 (Annex C) | API 650 (Annex H) |
Typical Use | Heavy/Stable Oils | Large Crude Terminals | Volatile Crude/Refined |
Frequently Asked Questions (FAQ)
Q: Why is a floating roof tank better for crude oil than a fixed roof tank?
A: Crude oil is volatile. A fixed roof tank has a large air space (headspace) where vapors accumulate, leading to product loss and fire hazards. A floating roof eliminates this air space, drastically reducing evaporation and VOC emissions.
Q: What is the purpose of the rim seal on a floating roof?
A: The rim seal creates a vapor-tight barrier between the floating deck and the tank wall. It minimizes product evaporation at the perimeter, which is the most significant source of emissions in floating roof designs.
Q: What design standards govern these tanks?
A: API 650 is the foundational standard for atmospheric welded steel tanks used in the oil and gas industry. For repair, reconstruction, or inspection of existing tanks, the industry follows API 653.
Q: Are internal floating roofs retrofittable?
A: Yes, many older fixed-roof tanks are retrofitted with internal floating roofs to meet modern air quality and emission regulations, effectively upgrading their capability to store more volatile crude products.
