What Are Tank Repairs and Modifications?
Repairs return a tank to its original design condition — weld restoration, plate insertion, bottom or roof replacement, seal and lining renewal. Modifications change the tank: adding nozzles and manways, raising shells, converting roof types, installing internal structures, or re-rating for new products and conditions.
Both categories sit under code governance — API 653 for AST repairs and alterations, with ASME rules for stamped vessels and AWWA references for water tanks. The differentiator of professional execution is not welding skill alone but hot-work management on tanks with product history, engineering review of every cut, and a documentation trail that keeps the tank's code pedigree intact.
Why Tank Interventions Fail Without Engineering Discipline
Most serious tank incidents during service life happen not in operation but during repair — hot work on vapor-laden tanks, unengineered openings, and unqualified welding. Professional repair programs exist to eliminate exactly these risks.
l Residual hydrocarbon vapor turns cutting and welding into ignition events without proper gas-freeing.
l Unreinforced openings and misaligned plate inserts introduce stress concentrations the original design never contained.
l Undocumented interventions permanently corrupt the tank's fitness-for-service record.
The Professional Repair and Modification Workflow
A code-compliant intervention follows a fixed sequence:
1. Condition Assessment: Inspection data, product history, and design documents establish current fitness and define the repair or modification scope.
2. Engineering and Procedure: Repair designs, weld procedures, and hot-work controls — cleaning, gas-freeing, continuous monitoring — are approved before any cutting begins.
3. Controlled Execution: Certified welders execute plate insertions, nozzle installations, or structure changes under supervision, with interim NDE on each closure.
4. Testing and Record Update: Vacuum-box, radiographic, or hydrostatic testing verifies the work, and the tank's permanent record and drawings are revised.
Professional Tank Repair vs Contractor Improvisation
Technical Parameter | Code-Governed Repair Program | Improvised Contractor Repair |
Hot-Work Safety | Documented gas-freeing, LEL monitoring, and standby controls | Assumption-based risk on vapor residues |
Structural Integrity | Engineered details with reinforcement and NDE | Openings and welds outside any design basis |
Code Standing | API 653 authorized repair organization traceability | Voided insurance and inspection records |
Post-Repair Value | Updated data book preserves re-rate and resale value | Undocumented tank that fails future audits |
Typical Repairs and Modification Projects
l Bottom replacement on corroded terminals tanks
l Nozzle additions and manifold relocations for loading upgrades
l Shell raising and course insertion for capacity increase
l Floating roof seal replacement and emission retrofit
l Lining and coating renewal for product change of service
l Seismic retrofit, anchor upgrades, and foundation grouting
Key Advantages of Professional Tank Repairs and Modifications
1. Safety on Product-Exposed Assets
Formal gas-freeing, monitoring, and hot-work permits convert the most dangerous phase of tank life into a controlled, insurable operation.
2. Engineering-Backed Structural Outcomes
Every insert, opening, and weld is calculated and examined, so the modified tank carries its loads exactly as the original design intended.
3. Asset Value Preserved and Enhanced
Documented repairs keep code pedigree current, supporting re-rating, change of service, financing, and eventual resale.
Quality Standards and Proven References

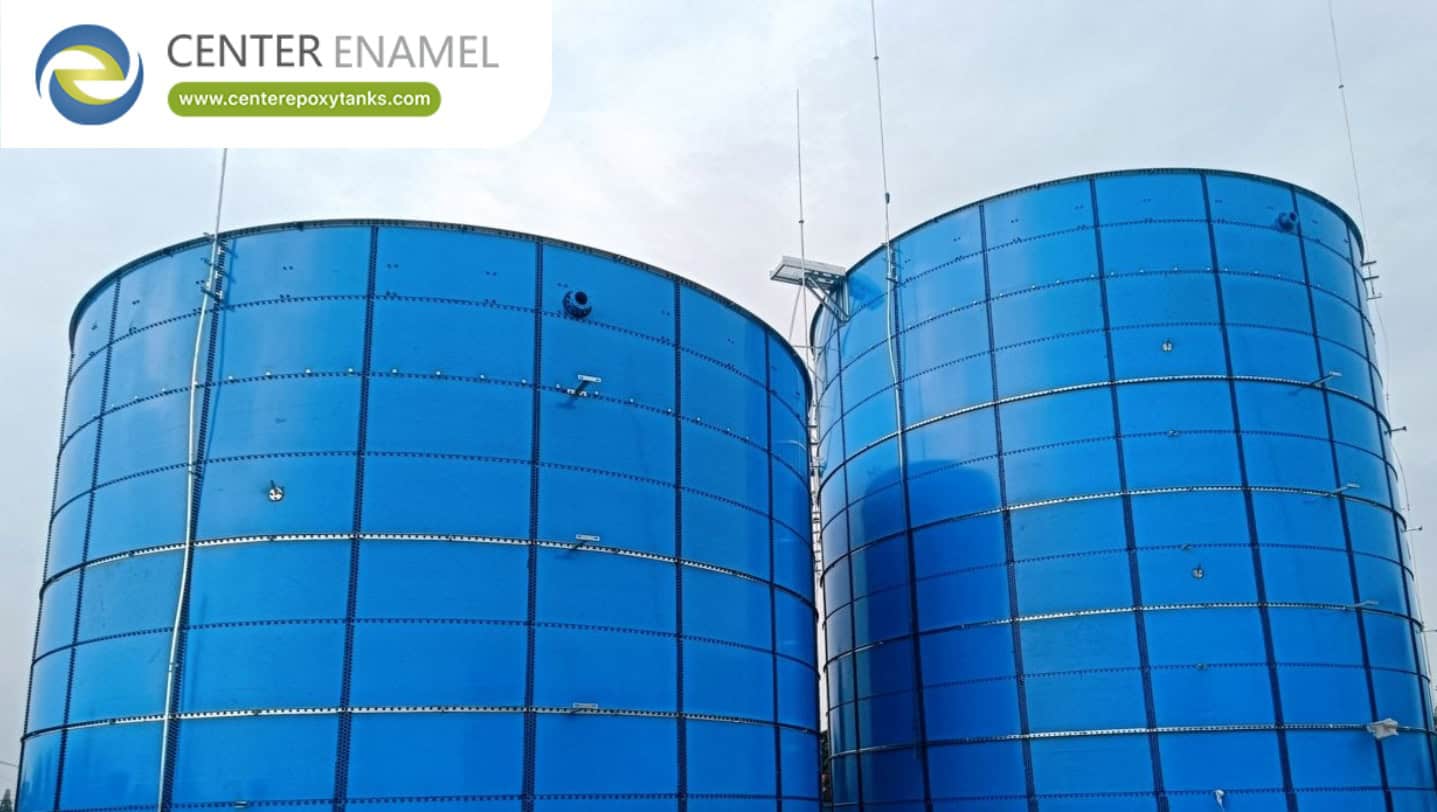

Center Enamel provides design, fabrication, construction, and aftermarket services for storage tanks and silos under ISO 9001 and ISO 45001 certified quality systems, with EN 1090 structural steel certification. With three decades of experience and projects delivered to more than 100 countries — including biogas and wastewater references for Paques and Veolia and industrial references for PetroChina and Sinopec — the company supports tank assets from commissioning through decades of inspection-driven service.
Frequently Asked Questions (FAQ)
Q: Can a storage tank be modified to hold a different product?
A: Yes, through a change-of-service evaluation covering material compatibility, lining requirements, venting, and re-rating calculations, documented per API 653.
Q: How long does a tank bottom replacement take?
A: A typical bottom replacement runs several weeks per tank depending on diameter, repair scope, and site logistics, with terminal schedules often phased to preserve operating capacity.
Q: Do repairs require the tank to be taken out of service?
A: Most structural repairs and all bottom work require out-of-service conditions with cleaning and gas-freeing; some external items like stairway and coating work can be done in service.
Q: What is the expected lifespan of a professionally engineered steel tank?
A: Steel tanks designed and built to recognized codes (API 650, API 620, AWWA D100, or ASME Section VIII) and maintained under scheduled inspection, coating, and repair programs routinely deliver service lives exceeding 30 years — and tanks managed under API 653-class integrity programs commonly remain in safe service for 50 years or more.
