Welded Steel Tank Technical Specs: Design, Parameters, and Engineering Standards
In industrial bulk liquid containment, understanding the exact welded steel tank technical specs is vital for ensuring structural safety, environmental compliance, and long-term asset reliability. Governed primarily by standards such as API 650 for petroleum and chemical storage and AWWA D100 for municipal water reservoirs, welded steel tanks provide a permanent, fused liquid-tight envelope capable of withstanding severe internal hydrostatic pressures and external environmental loads.
Evaluating these specifications requires a detailed breakdown of core operating boundaries, structural geometries, material selections, and quality verification protocols.
1. Core Operating Limits and Design Boundaries
Welded steel storage tanks are engineered to operate within strict boundary parameters defined by international design codes:
Operating Pressure: Standard atmospheric welded tanks are engineered for internal pressures approximating atmospheric conditions, up to a maximum of 2.5 psig (pounds per square inch gauge). Higher-pressure configurations require specialized design codes like API 620.
Operating Temperature Limits: Standard non-refrigerated service specs cover operating temperatures ranging from –40°C up to 93°C (200°F), with specialized annexes permitting elevated temperatures up to 260°C (500°F).
Foundation Requirements: Tanks are constructed on flat, evenly supported foundation surfaces, such as reinforced concrete ringwalls, oiled sand ringwalls, or compacted aggregate pads.

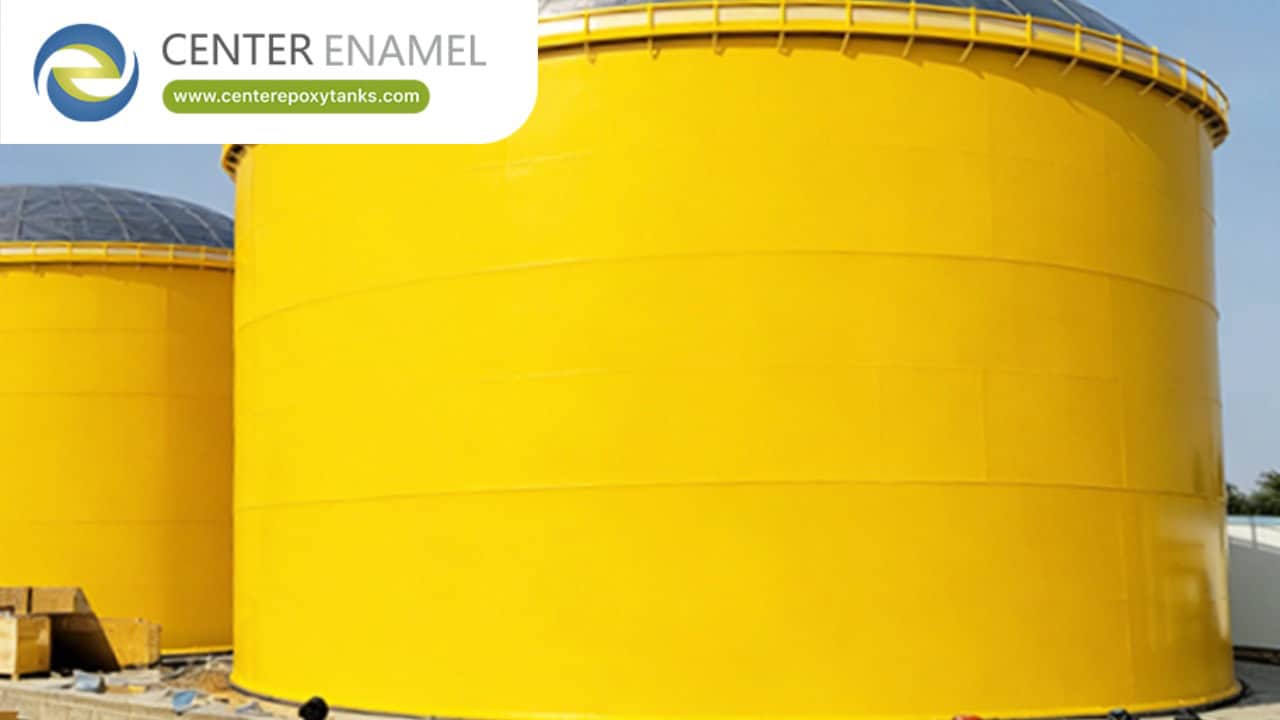

2. Structural Components and Plate Thickness Calculation
The physical build of a welded steel tank relies on precise calculation methods to balance fluid weight and structural integrity:
Shell Courses: The cylindrical shell is built using stacked horizontal rings (courses) of steel plates. Plate thicknesses are mathematically determined using the 1-foot method or variable-design-point method, ensuring thicker plates are placed at the bottom where hydrostatic pressure is greatest.
Corrosion Allowance: A sacrificial thickness increment (typically 1.5 mm to 3.0 mm) is added to calculated structural plate dimensions to account for long-term material oxidation or chemical wear.
Roof Configurations: Designs range from self-supporting fixed cone and dome roofs to dynamic internal floating roofs (IFRs) and external floating roofs (EFRTs) engineered to eliminate vapor headspace and suppress volatile organic compound (VOC) emissions.
Data Table: Welded Steel Tank Technical Specifications Matrix
Technical Parameter | Standard Specification Profile (API 650 / AWWA D100) |
Primary Structural Material | Approved structural carbon steel plates (ASTM A36, A516 Gr. 70) or Stainless Steel |
Maximum Operating Pressure | Atmospheric up to 2.5 psig (17.2 kPa) |
Maximum Service Temperature | Up to 93°C (200°F) standard; higher with specialized annexes |
Welding & Fabrication Codes | ASME Section IX qualified weld procedures and certified structural welders |
Non-Destructive Testing (NDE) | Radiographic testing (RT), Ultrasonic testing (UT), Vacuum box testing, Magnetic particle (MT) |
Foundation Types Supported | Concrete ringwall, compacted aggregate, oiled sand pad |
Corrosion Protection | Internal epoxy linings, exterior paint systems, cathodic protection (sacrificial/impressed current) |
3. Non-Destructive Examination (NDE) and Quality Control
To guarantee zero-defect structural integrity, welded steel tank technical specifications mandate rigorous, multi-stage quality assurance testing during fabrication and field erection:
Radiographic Testing (RT): Applied to vertical and horizontal butt-welded shell seams to detect internal weld flaws or lack of fusion.
Vacuum Box Testing: Utilized on tank floor bottom plates and lap-welded seams, combining a vacuum chamber with soapy solution to instantly isolate microscopic leaks.
Hydrostatic Testing: Upon completion, the tank is filled to its maximum design liquid level with water to verify overall structural stability, foundation settlement behavior, and total shell watertightness.
Frequently Asked Questions (FAQ)
Q: What standard governs welded steel tank technical specifications?
A: Welded steel storage tanks are primarily designed, built, and inspected under API 650 for oil, gas, and chemical storage, and ANSI/AWWA D100 for municipal and fire protection water storage tanks.
Q: How is the shell plate thickness calculated for a welded steel tank?
A: Shell plate thickness is calculated using standard industry formulas such as the 1-foot method or variable-design-point method, factoring in the specific gravity of the stored liquid, tank diameter, and height, with the thickest plates positioned at the bottom course.
Q: What types of non-destructive testing (NDT) are required during construction?
A: Essential testing includes radiographic or ultrasonic testing of major shell butt welds, vacuum box testing of floor plate seams, and magnetic particle inspection of structural attachments to verify absolute weld soundness.
Q: Can a welded steel tank handle internal pressure?
A: Standard API 650 welded tanks are engineered for atmospheric or low-pressure service up to 2.5 psig. Higher pressures require alternative codes like API 620 or ASME pressure vessel standards.
