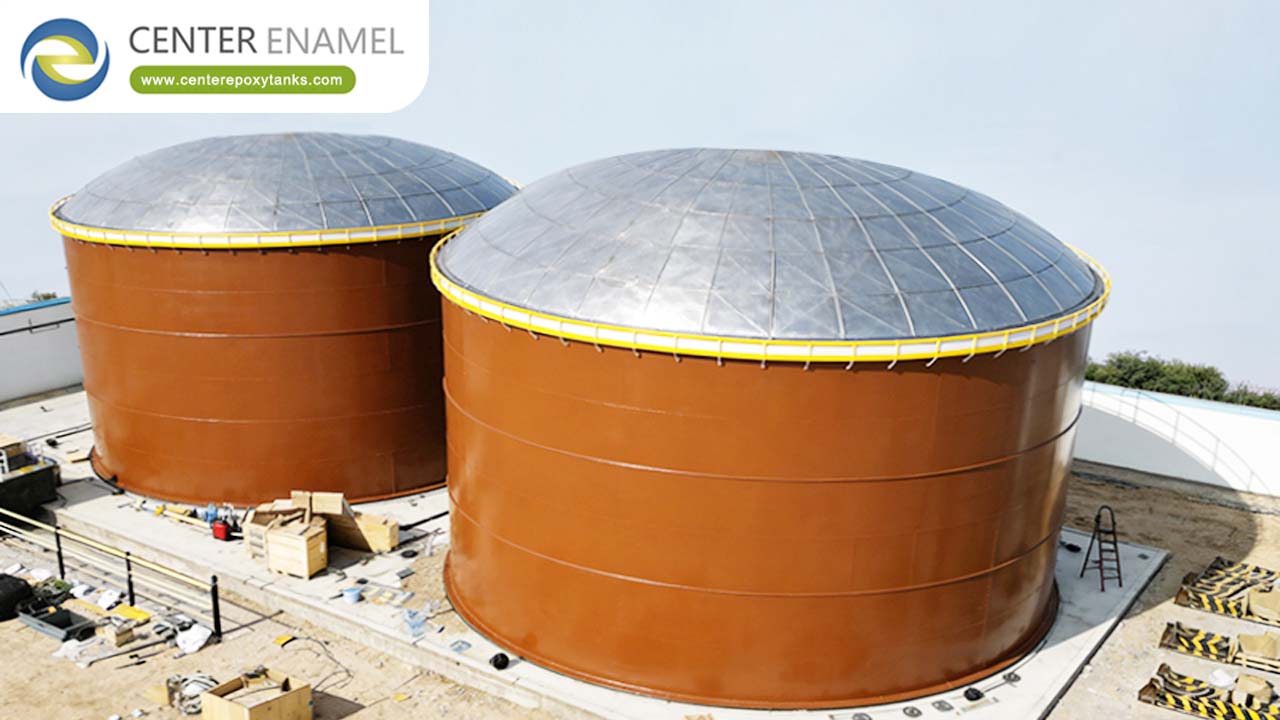

Welded steel tank design standards provide the structural and safety framework for atmospheric and low-pressure storage of liquids. The primary global benchmarks are API 650 (Petroleum), AWWA D100 (Water), and EN 14015 (European industrial). These standards dictate plate thickness, welding metallurgy (e.g., ASME Section IX), and Non-Destructive Testing (NDT) requirements to ensure leak-proof containment and a 50-year service life. Compliance with these codes is mandatory for environmental safety, seismic resilience, and fire protection across industrial and municipal sectors.
This matrix compares the leading codes used in modern tank engineering.
Standard | Primary Application | Key Regulatory Focus |
API 650 | Oil, Gas, & Petrochemical | Atmospheric pressure; Volatile liquid containment; Leak prevention. |
AWWA D100 | Municipal & Industrial Water | Potable water purity; Seismic loading; Hydrostatic stability. |
EN 14015 | European Industrial Storage | Ambient temperature; Environmental protection; European material grades. |
NFPA 22 | Dedicated Fire Protection | Immediate reliability; Suction/Gravity tank specifications. |
API 620 | Low-Pressure Storage | Large, field-welded tanks for pressures higher than API 650. |
Standardized design begins with the "Chemistry of Strength." Engineers must select steel grades (such as ASTM A36, A516, or A573) based on the "Design Metal Temperature."
● Fracture Toughness: Standards like API 650 specify impact testing for plates used in cold climates to prevent "brittle fracture."
● Corrosion Allowance: Designing for longevity requires adding a sacrificial thickness (typically 1.5mm to 3mm) to the calculated structural thickness to account for internal shell thinning over decades.
The integrity of a welded tank is only as strong as its heat-affected zone (HAZ).
● WPS & PQR: Every project must follow a Welding Procedure Specification (WPS) and a Procedure Qualification Record (PQR) to ensure the mechanical properties of the weld match the base metal.
● Submerged Arc Welding (SAW): For large-scale projects, automated SAW is preferred for its deep penetration and uniform, high-quality beads, which minimize localized stress concentrations.
Modern tanks are not static; they are dynamic structures that must withstand external forces.
● Hydrostatic Pressure: The "Hoop Stress" calculation determines the thickness of each shell course, with the bottom rings being the thickest to handle maximum pressure.
● Seismic Design (Appendix E): In high-activity zones, tanks are engineered with "Self-Anchoring" or "Mechanical Anchoring" logic to prevent "Elephant’s Foot" buckling during ground movement.
Design standards are incomplete without the verification protocols required to prove compliance.
● Radiographic Testing (RT): Utilizing X-rays to detect internal weld defects like porosity or slag inclusions. This is a mandatory requirement for "Full Radiography" certification.
● Hydrostatic Testing: Filling the tank to its maximum design level to verify structural stability and leak-proof performance under 100% load.
● Vacuum Box Testing: Used primarily on floor-plate lap welds where radiography is impossible, ensuring every inch of the bottom seal is airtight.
Adhering to these standards is not just a regulatory hurdle—it is a strategic investment in Asset Security:
1. Risk Mitigation: Standardized designs prevent catastrophic shell failures that lead to environmental disasters and massive financial liability.
2. Global Interchangeability: Using API or AWWA standards allows international operators to use a universal "engineering language," simplifying procurement and maintenance.
3. Insurance & ESG Compliance: Most industrial insurers require proof of design compliance to provide coverage, and 2026 ESG mandates require leak-proof certification for carbon and chemical footprints.
Q: Can I use AWWA D100 for an oil tank?
A: Technically, the structural principles are similar, but API 650 is specifically optimized for hydrocarbon chemistry, vapor containment, and fire safety. It is best practice to use the standard specific to the stored medium.
Q: What is the difference between API 650 and API 620?
A: API 650 is for "atmospheric" tanks (minimal pressure). API 620 is designed for tanks that handle higher internal pressures (up to 15 lbf/in²) and is often used for refrigerated or cryogenic storage.
Q: How often should these tanks be re-certified?
A: According to API 653 (the inspection standard), tanks should undergo a formal external inspection every 5 years and a comprehensive internal inspection every 10 to 20 years to ensure they still meet the original design standards.
