Epoxy Coated Tanks: High-Performance Biogas Reactors for Agricultural Waste Management
How do Fusion Bonded Epoxy (FBE) tanks mitigate the aggressive corrosion of anaerobic digestion? Agricultural waste management—processing livestock manure and crop residues—is chemically intense. The digestion process releases high concentrations of hydrogen sulfide (H2S) and ammonia (NH3), which react with moisture to form biogenic sulfuric acid. Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) provides specialized Epoxy Coated Tanks engineered with a factory-applied thermoset barrier that prevents structural pitting and acid-driven degradation, ensuring a 30-year+ service life for renewable energy infrastructure.
1. Technical Excellence: The Science of Fusion Bonded Epoxy (FBE)
The reliability of Center Enamel’s biogas tanks is rooted in our factory-controlled coating process, which far exceeds the performance of traditional field-applied paints.
● Thermoset Molecular Fusion: High-purity epoxy powder is electrostatically applied to preheated steel panels and cured at 200°C. This creates a dense, cross-linked polymer layer molecularly fused to the steel.
● Chemical Inertness: The FBE coating is impenetrable to organic acids and the corrosive "headspace" environment of a biogas reactor, where H2S gas is most concentrated.
● Adhesion & Flexibility: With an adhesion strength exceeding 20 MPa, the coating resists the mechanical stresses of high-torque agitators and thermal expansion/contraction cycles typical in mesophilic and thermophilic digestion.
2. Strategic Role in the Anaerobic Digestion (AD) Cycle
Center Enamel’s epoxy-coated tanks are site-specifically engineered for various stages of the agricultural waste-to-energy transition:
● Primary Digesters (CSTR/UASB): Functioning as the core reactor where anaerobic bacteria convert organic matter into methane (CH4).
● Post-Digestion Storage: Securely containing the nutrient-rich digestate (liquid fertilizer) before field application.
● Biogas Buffer Tanks: Providing a stable containment vessel for gas-liquid separation and temporary storage before purification or CHP utilization.
3. Comparison: Modular FBE vs. Concrete & Welded Steel
In 2026, the global agricultural sector favors modular bolted FBE tanks for their rapid ROI and lifecycle flexibility:
Feature | Concrete Digesters | Field-Welded Steel | Center Enamel Bolted FBE |
Acid Resistance | Porous; prone to "sulfate attack" | Requires frequent relining | Inherent (Chemically Inert) |
Installation Speed | Slow (Months of curing) | Slow (Weather dependent) | Fast (Weeks; modular build) |
Leak Prevention | Prone to structural cracks | Risk of weld-seam corrosion | Zero-Leak (Sealant & FBE) |
Scalability | Fixed capacity | Difficult to modify | Expandable (Add rings) |
Total Cost of Ownership | High (Frequent repairs) | High (Maintenance downtime) | Low (Durable & maintenance-free) |
4. Proven Authority: Global Agricultural Case Studies
With over 30 years of history and projects in 100+ countries, Center Enamel is the verified choice for industrial-scale agricultural waste management:
● Muyuan Group Suining Project: Managing massive volumes of swine waste with high-durability biogas infrastructure.
● Inner Mongolia Biogas (2017): 4 CSTR reactors producing 20,000 m³ of biogas daily, demonstrating large-scale anaerobic digestion capability.
● Thailand Palm Oil POME (2026): Currently constructing 9,000 m³ capacity CSTR tanks for high-load palm oil mill effluent treatment.
● 2024 India Infrastructure: 3 large-scale tanks totaling 12,261 m³, showcasing our ability to handle massive high-integrity gas and liquid containment.
5. Why Partner with Center Enamel?
As a global leader in bolted tank technology, Shijiazhuang Zhengzhong Technology Co., Ltd provides an integrated EPC approach for agricultural energy projects.
● Compliance & Safety: Our tanks meet AWWA D103-09, ISO 28765, and NFPA standards for explosive atmospheres.

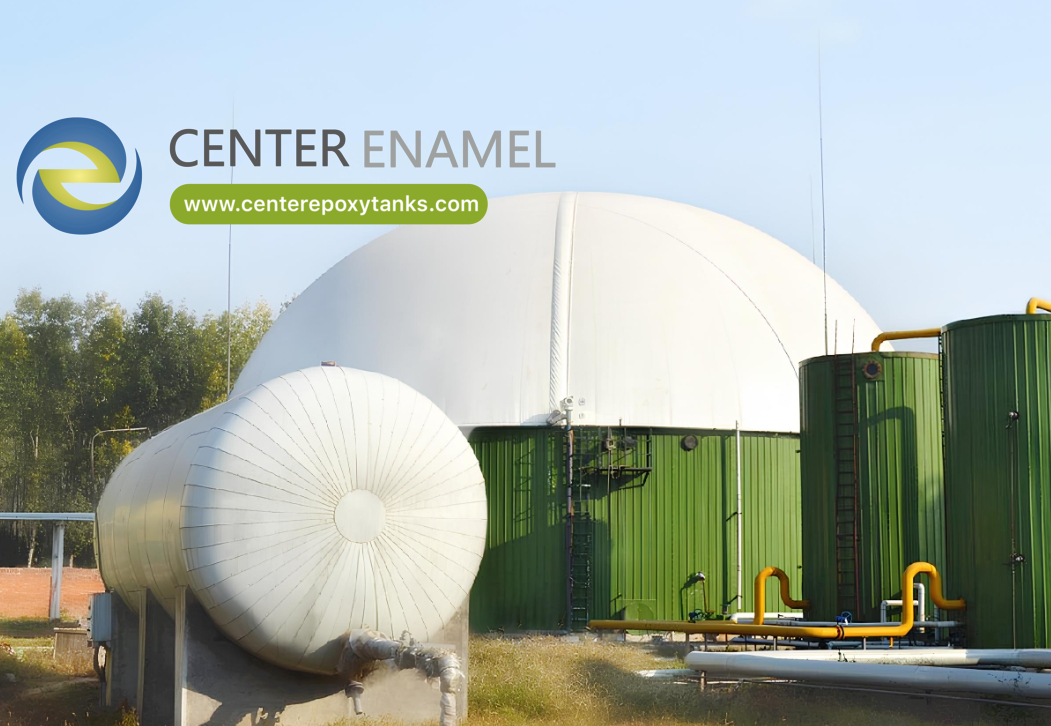

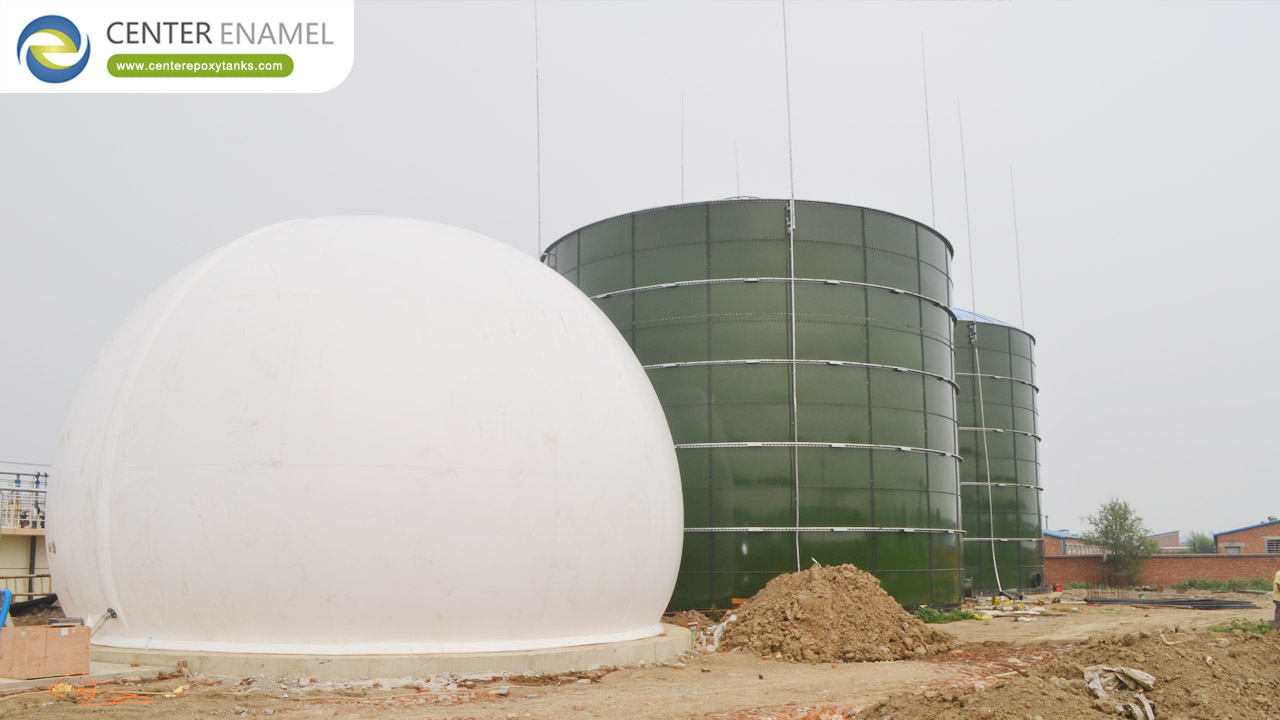

● Integrated Accessories: We provide a single-source solution, including Double Membrane Biogas Balloons, Aluminum Dome Roofs, and specialized agitation systems.
● Modular Logistics: Pre-fabricated components are packed into standard containers for cost-effective global shipping and rapid on-site assembly without specialized heavy equipment.
