Thickness of Oil Storage Tanks: Design Rules, Corrosion Allowance, and Inspection

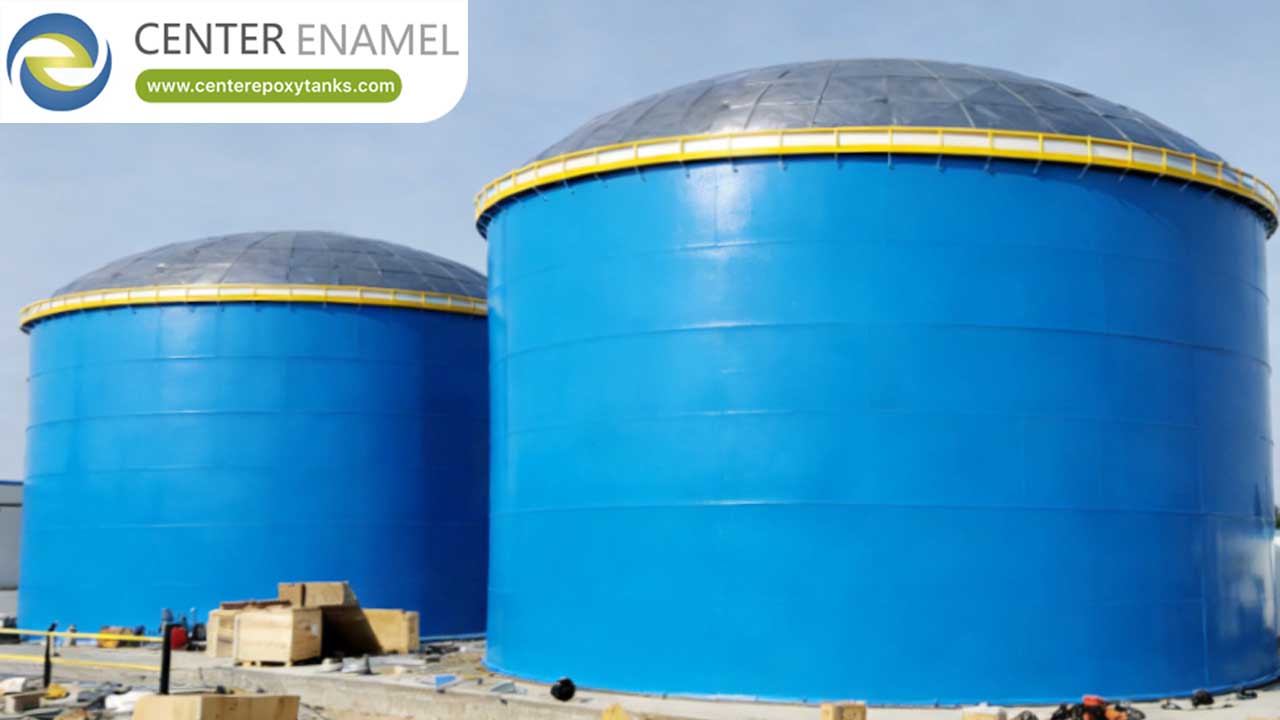

Ask how thick an oil storage tank is and the honest answer is 'it varies by height': the bottom course carries the full hydrostatic head while the top course barely works. Thickness is not one number — it is a calculated stack of design requirement, product and wind loads, and a corrosion budget the owner expects to spend over decades.

The thickness of oil storage tanks is the engineered plate dimension determined under codes such as API 650 — computed per shell course from hydrostatic head and allowable stress, plus wind and stability checks — increased by corrosion allowance for expected metal loss and verified through ultrasonic thickness surveys across the tank's service life.

1. How Is Shell Thickness Calculated?

API 650 turns head pressure into course-by-course plate.

· Hydrostatic design: Liquid pressure grows with depth, so each shell course is computed for the head it carries — the classic one-foot method with the design liquid level.

· Material strength basis: Plate grade and allowable stress set the base equation: higher-strength steel means thinner plate at the same diameter and height.

· Wind and stability checks: Wind load on a full or empty tank, plus vacuum conditions, can govern the upper courses where liquid head cannot.

· Annular bottom plate: A thicker annular ring where bottom meets shell — the highest-stress intersection in the tank.

2. What Is Corrosion Allowance and Why Does It Matter?

Allowance is thickness bought for the future.

· Definition: Extra thickness beyond design minimum, budgeted for expected metal loss over the design life.

· Product-driven sizing: Mild fuel oils need little; acidic or water-bearing service earns a larger allowance — or a lining instead.

· Where it goes: Typically shell courses near the bottom and the tank bottom plates, where water and product chemistry concentrate.

· The alternative: Linings or alloy upgrades protect the steel so allowance can shrink — a cost trade between metal and barrier.

3. How Is Thickness Verified Over the Tank's Life?

Inspection turns design paper into maintenance data.

· UT thickness surveys: Ultrasonic measurements on a grid across shell and bottom — actual thickness versus t-minimum recorded and trended.

· t-minimum discipline: API 653-type practice defines minimum thickness for continued service; readings approaching it trigger repair or re-rating.

· Bottom focus: Bottom plates get the densest survey grid — underside corrosion hides where product never warns.

· Repair options: Patch plates, bottom replacement, or re-rating the tank — all decided from the thickness dataset, not guesswork.

Data Table: Thickness Influencing Factors

Frequently Asked Questions (FAQ)

Q1: How is oil storage tank thickness determined?

Under API 650, each shell course is calculated from the hydrostatic head it carries, the tank diameter, and the allowable stress of the plate grade — then checked against wind and stability requirements. The result: thicker lower courses, thinner upper courses, matched to actual loads.

Q2: What is corrosion allowance on a tank?

Thickness added beyond the design minimum to be consumed by expected corrosion over the tank's life. Mild service needs little; acidic or water-bearing products justify more — or a lining that protects the steel so less allowance is needed.

Q3: How is tank thickness checked during service?

Through ultrasonic thickness surveys on a measurement grid across shell and bottom, comparing readings against calculated minimums per API 653 practice. Trends in the data drive repair decisions — patch, replace bottoms, or re-rate the tank.

Q4: Why is the tank bottom thicker in places?

The annular plate ring where bottom meets shell carries the tank's highest local stress, so code requires a thicker plate there. The rest of the bottom is sized for expected corrosion — because bottom plate metal loss is the most common retirement trigger in aging tanks.
