The Engineering Anatomy: Essential Components of an Internal Floating Roof (IFR)
What are the primary components of an Internal Floating Roof? An Internal Floating Roof (IFR) is a sophisticated mechanical assembly designed to suppress vapors within a fixed-roof storage tank. Unlike a simple cover, an IFR consists of a series of interconnected engineered components—including buoyancy modules, rim seals, and structural framing—that must work in perfect synchronization to move vertically with the liquid level. For refineries and terminals, understanding these components is critical for ensuring environmental compliance and operational safety.
1. The Buoyancy System: Pontoons and Decks
The "engine" of any floating roof is its ability to remain afloat under all operational conditions.
● Buoyancy Pontoons: Most modern IFRs utilize high-strength, airtight aluminum or stainless steel pontoons. These are the primary buoyancy modules. In accordance with API 650 Appendix H, the buoyancy system must be designed to support at least twice the dead weight of the roof.
● Deck Panels: The skin of the roof, typically made of thin-gauge aluminum or stainless steel sheets. These panels are clamped or bolted to the structural frame to create a continuous vapor-proof barrier.
● Structural Frame: A grid of beams and peripheral channels that provides the necessary rigidity to prevent the roof from warping or buckling under hydraulic stress.
2. The Rim Seal System: The Vapor Barrier
The effectiveness of an IFR is defined by its seal. The "rim space" is the critical gap between the floating roof edge and the tank shell.
● Primary Seals: The first line of defense. Common types include Mechanical Shoe Seals (which use metallic plates held against the shell by springs) or Liquid-Mounted Seals.
● Secondary Seals: A wiper-style seal installed above the primary seal. It "wipes" the tank wall as the roof moves, capturing trace vapors and protecting the primary seal from debris.
● Seal Material: High-performance polymers (like Teflon or Nitrile) are selected based on their chemical compatibility with the stored medium (e.g., gasoline, jet fuel, or aromatics).
3. Vertical Navigation: Guide Poles and Anti-Rotation
To prevent the roof from spinning—which would damage the seals—the IFR requires a stabilized vertical path.
● Guide Poles (Stilling Wells): A vertical pipe that runs from the tank floor to the top. The roof slides up and down this pole.
● Anti-Rotation Systems: Usually a combination of the guide pole and specialized cables or tracks that ensure the roof remains perfectly aligned with the tank’s internal geometry.
● Manway & Inspection Hatches: These allow personnel to access the space beneath the roof for maintenance when the tank is out of service.
4. Operational Safety: Support Legs and Vents
An IFR is a dynamic machine that must be safely managed when the tank is empty.
● Support Legs: Adjustable or fixed legs that hold the roof at a specific height (typically 2 meters) during maintenance. This allows for safe entry and inspection of the tank floor.
● Automatic Bleeder Vents (Vacuum Breakers): These vents open automatically when the roof rests on its legs and close when the roof is floating. This prevents a vacuum from forming during the emptying process, which could otherwise collapse the roof or the tank shell.
● Peripheral Vents: Located on the fixed roof, these ensure the space above the floating deck is properly ventilated to prevent the accumulation of any trace vapors.
5. Why Precision Manufacturing Matters
The reliability of these components depends on the precision of their fabrication. If a pontoon is slightly off-length or a seal is not perfectly round, the roof can "bind" or jam—a failure that can lead to catastrophic tank damage.

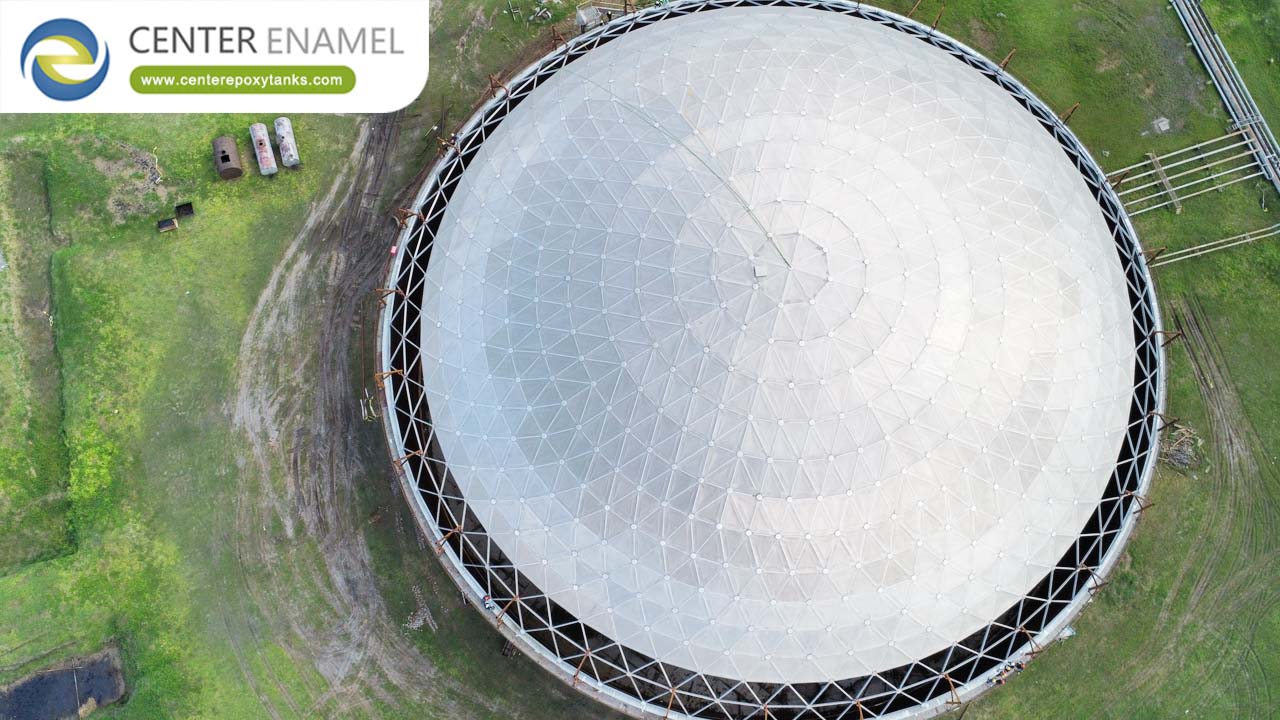

Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) ensures IFR reliability through:
● CNC Fabrication: In our 150,000 m² automated facility, every strut and pontoon is manufactured to sub-millimeter tolerances.
● High-Voltage Testing: Every seal and deck joint is verified for vapor-tight integrity.
● Modular Design: Our IFRs are designed for rapid, bolt-together assembly in 100+ countries, minimizing refinery downtime and hot-work risks.
